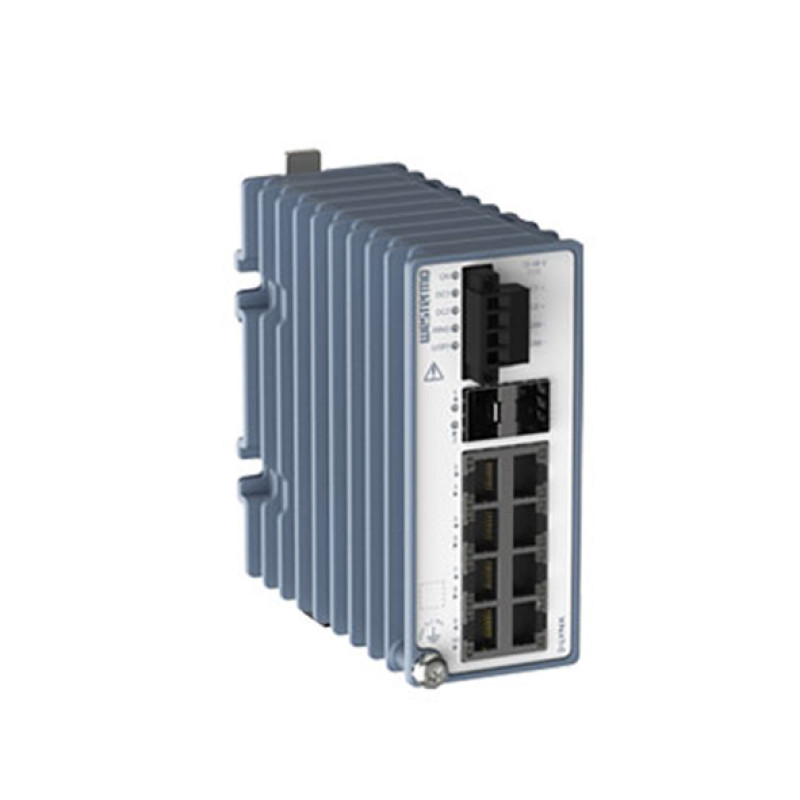

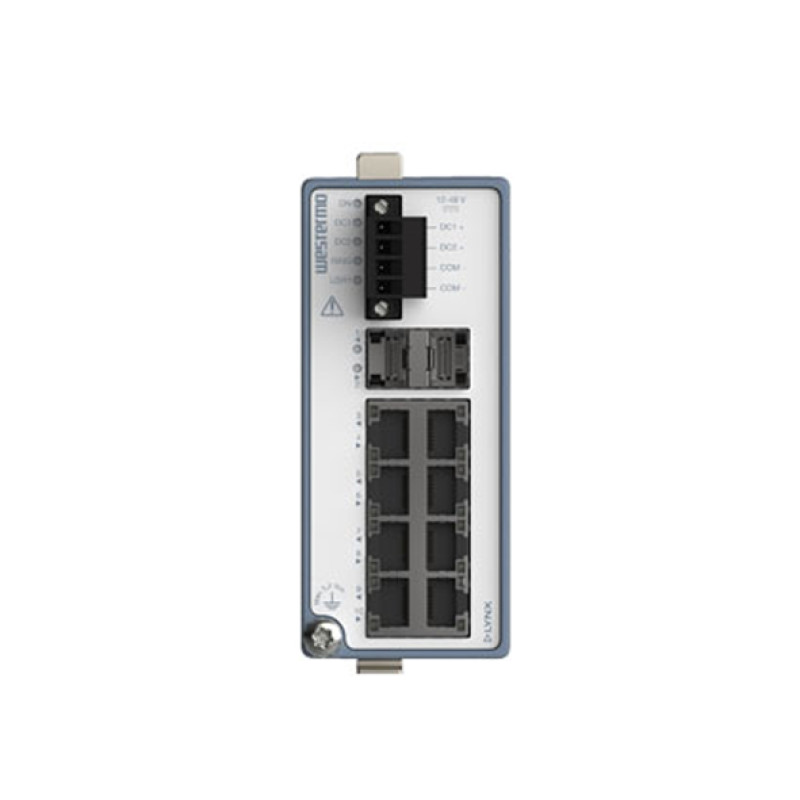

Westermo Lynx 3510-E-F2G-T8G-LV Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 8 x 10/100/1000 Mbps ports (RJ45 connector)
- 2 x 1 Gbit/s SFP fiber ports
- Ultra-robust IP40 metal housing
- 12 to 48 VDC input power range
- -40 to +70°C operating temperature
.png)
Description
The Lynx 3510-F2G-T8G-LV is a compact high-performance industrial layer 2 managed switch developed with the needs of current and future industrial data networks in mind. The switches are designed for the harshest industrial environments and can withstand extreme temperatures, vibrations, humidity, and electrical environments. Using only industrial-grade components ensures market-leading mean time between failure (MTBF), maximized service life, and reduced operational and life cycle costs.
The Lynx 3000 series provides layer 2 and layer 3 functionality, enabling complex ring networks and routing solutions. It features a rich assortment of variants for various use cases, including applications requiring actual high performance. With models supporting up to 2.5-gigabit speeds, as well as entry-level models optimized for Fast Ethernet applications, the series is ideal for handling big data, high bandwidth, and mission-critical applications. Power over Ethernet (PoE) versions provide up to 30 W output per port and a total budget of 240 W.
The series is powered by the next-generation WeOS operating system, which ensures robust operation and support for an expanding range of protocols and features. In addition, recognizing the growing sophistication of cyberattacks, an extensive suite of cybersecurity tools is available. These tools can be used to build networks in compliance with the IEC 62443 standard, which defines technical security requirements for data communication network components. The Lynx 3000 switches are ideal for mission-critical applications within transportation, manufacturing, energy, smart cities, and other applications.
You can also find the Lynx 3510-E-F2G2.5-T8G-LV, Lynx 3510-E-F2G-P8G-LV, Lynx 3310-E-F2G-T8-LV, and Lynx 3510-F2G2.5-T8G-LV models in the Managed Ethernet Switches.
You can buy the Westermo Lynx 3510-E-F2G-T8G-LV Managed Ethernet Switch by inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 8 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 2 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Console Port (USB-C, emulate serial port, 115200 bps), 1 x Micro SD slot (Secure Digital 2.0), 1 x Digital input channel and 1 x Digital output channel (screw terminal connector) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.16 to 0.6 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12 to 48 VDC |
| Operating Voltage | 9.6 to 60 VDC, Usage: 12 to 57 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Telcordia: 1,035,000 hours; MIL-HBDK-217F: 879,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 52 x 134 x 130 mm (2.05 x 5.28 x 5.19 inches) |
| Housing | Full metal |
| Installation | - |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Environmental: NEMA TS2, Traffic Controller Assemblies with NTCIP Requirements; Marine: DNV rules for classification - Ships and offshore units; Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements, EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-201: Particular requirements; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 1100 gr |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory., Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote Syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
