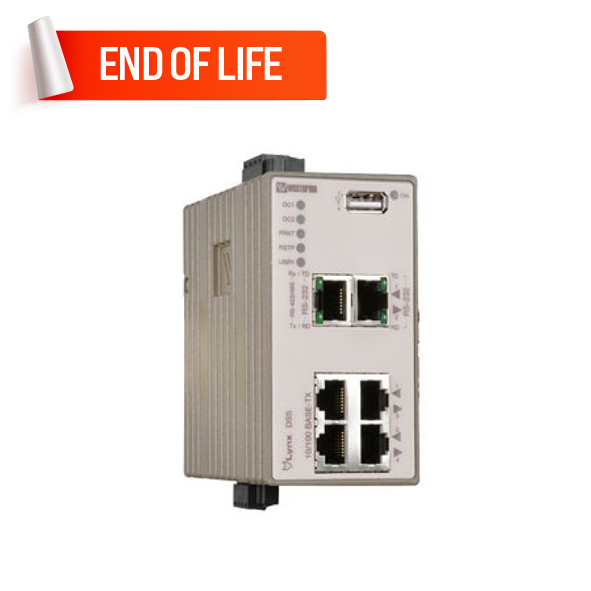

Westermo L106-S2-EX Managed Ethernet Switch

Westermo L106-S2-EX Managed Ethernet Switch
Westermo L106-S2-EX Managed Ethernet Switch
Westermo L106-S2-EX Managed Ethernet Switch
Westermo L106-S2-EX Managed Ethernet Switch
Westermo L106-S2-EX Managed Ethernet Switch

  • EX Approved Managed Device Server Switch
  • Layer 2 functionality switching
  • 4 x 10 Mbit/s, 100 Mbit/s Copper ports (RJ-45 connector)
  • 1 x RS-232 Port (50 bit/s – 115.2 kbit/s, RJ-45 connector)
  • 1 x RS-232/422/485 Port (50 bit/s – 2 Mbit/s, RJ-45 connector)
  • IP40-rated Zinc body material design

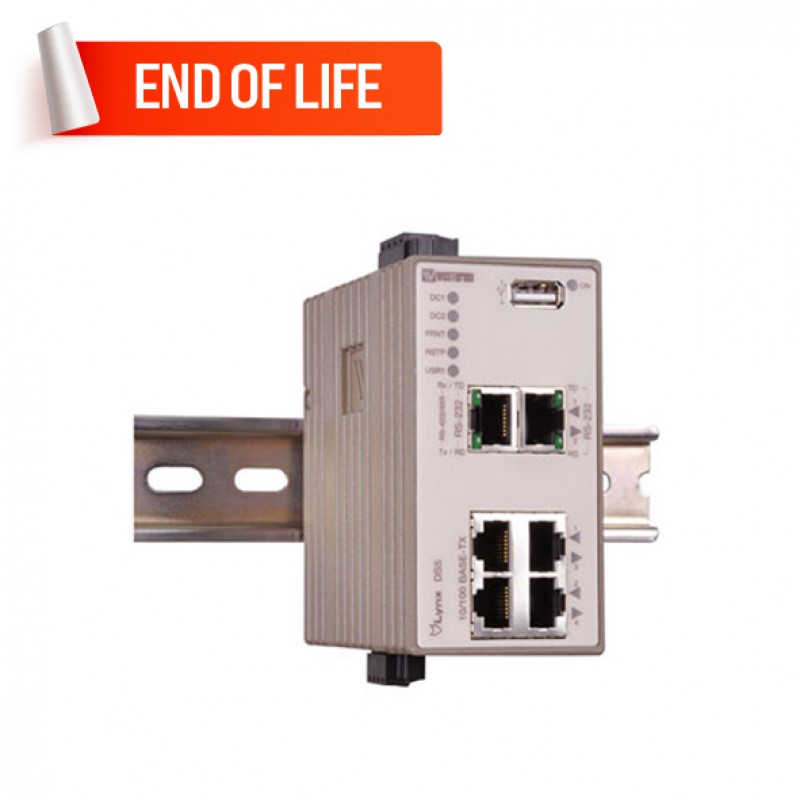

  • DIN rail mount installation
  • 24 to 48 VDC Redundant dual inputs (Wide Range 19 to 60 VDC)
  • -40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP40)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6, IEC 60068-2-64)
  • Hazardous Location (UL/cUL Class 1 Division 2, ATEX, IECEx)
  • Railway Transportation
  • Marine
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo L108-F2G-S2 Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1 Managed Ethernet Switch
Quickview
Westermo L105-S1 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1-EX Managed Ethernet Switch
Quickview
Westermo L105-S1-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G EX Managed Ethernet Switch
Quickview
Westermo L106-F2G EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G Managed Ethernet Switch
Quickview
Westermo L106-F2G Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-S2 Managed Ethernet Switch
Quickview
Westermo L106-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L108-F2G-S2-EX Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Managed Layer 2 Switches , Managed Switches , Layer 2 Switches , Industrial Data Communications , Marine Products , Railway Transportation Products , Oil & Gas Products , Ethernet Switches , Switches , Westermo L106-S2-EX

Lynx 106 EX is a layer 2 managed industrial Ethernet switch, powered by the Westermo WeOS network operating. Independently tested for IECEX and ATEX by Baseefa, as well as Class 1 Division II by FM approval, Lynx is the perfect solution for hazardous area applications in any part of the world.

Lynx is the most compact and has the lowest power requirements in this class of switch. Lynx has 4 10/100 Mbit/s ports and 2 serial ports. One serial port is configured for RS-232, the other one can be configured for either RS-232 or RS-422/485. Only industrial-grade components are used, which gives Lynx an MTBF of 593,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.


End of Life Product - Replacement Available

Please note that the L106-S2-EX has been phased out and replaced by the L106-S2.


Easy World Automation offers the easiest way to buy the Westermo L106-S2-EX Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 6 Ports
10/100Mb RJ45 (Megabit) Ports Yes : 4 Ports (or 10 Mbit/s)
10/100/1000Mb RJ45 (Gigabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 1 x RS-232 Port (50 bit/s – 115.2 kbit/s, RJ-45 connector), 1 x RS-232/422/485 Port (50 bit/s – 2 Mbit/s, RJ-45 connector), 1 x USB 2.0 Port, 1 x Digital I/O channel (4-position detachable screw terminal), 1 x Console Port (2.5 mm jack)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 150 mA (300 mA) @ 24 VDC (with 500 mA USB load), 80 mA (150 mA) @ 48 VDC (with 500 mA USB load)
Power Input Plugin ( Redundant ) Yes
Input Voltage 24 to 48 VDC (with Galvanic isolation to all ports)
Operating Voltage 19 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF MIL-HDBK-217K: 593,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 in)
Housing Metal
Installation Din-rail mounting
Operating Temperature -40 to +70°C (-40 to +158°F)
Operation Humidity 5-95% relative humidity
Standards and Certifications MIL-HDBK-217K; Ingress protection: IP40; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, EN 55022 +A1, Emission IT equipment, EN 55024, Immunity IT equipment, FCC part 15 Class A, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV Standard for Certification no. 2.4; IECEx: Explosive atmosphere, IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”; ATEX: Explosive atmosphere, EN 60079-0, General requirements, EN 60079-15, Equipment protected by type of protection “n”; Class1 Div 2: FM Approval; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64
Storage Temperature -50 to +85°C (-58 to +185°F)
Weight 0.7Kg
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards IGMPv2/v3 snooping, HTTP, HTTPS or CLI (SSHv2 or Telnet), SNMPv1/v2c/v3, SNTP (NTP client), PPPoE client, DHCP client, DDNS, DHCP client, DHCP server including option 82, DHCP relay agent including option 82
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
