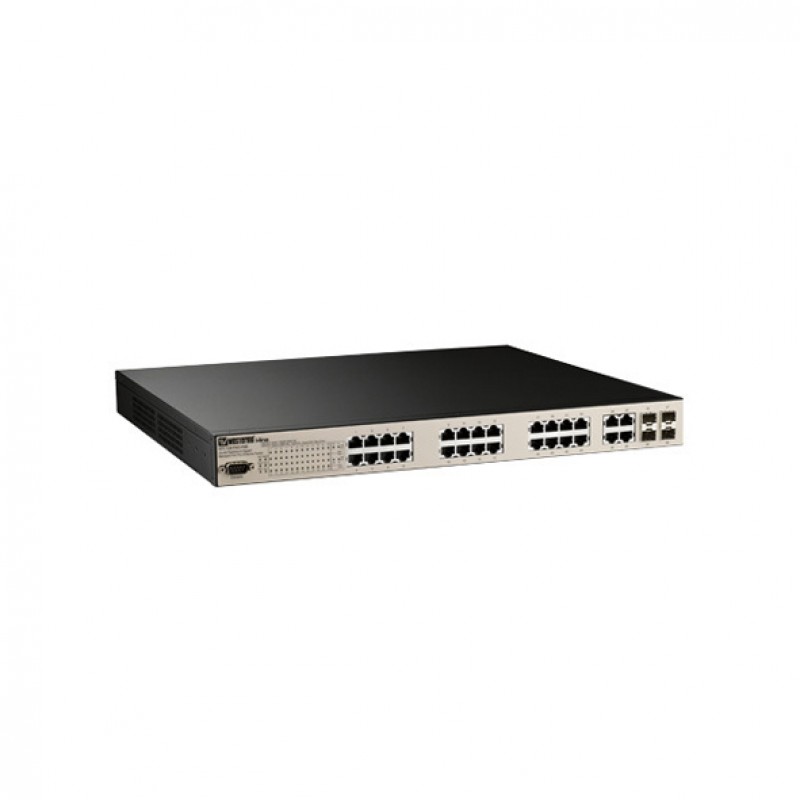

Westermo MRI-128-F4G-PSE/24 Rackmount Managed PoE Switch
- Layer 3 functionality switching
- 24 x 10/100Base-TX PoE Ports (RJ-45 connector with 24 PoE injectors)
- 4 x 10/100/1000Base-TX SFP combo ports (RJ-45 connector)
- 1 x RS-232 Console Port (DB-9 connector)
- Supports 802.3at/af (PoE+/PoE)
- IP31-rated Rugged aluminum case
- HV range 90 – 264 VAC / 127 – 370 VDC or Dual 24 V (12 – 48 V) DC inputs
- –25 to 70ºC operating temperature range
- Brand: WESTERMO
- Product Code: 3624-0370
.png)
Description
The i-line
MRI-128-F4G-PSE series is a rack-mount high-port-density PoE switch, designed
for critical and large-scale PoE applications such as real-time IP video
surveillance with high resolution quality and the evolving wireless communication
systems such as WiMax and 802.11 a/b/g/n Access Points.
All of the 24 Fast
Ethernet PoE injector ports of the switch can deliver 15.4 W by IEEE 802.3af or
30 W by the latest High Power PoE IEEE 802.3at standard. The 4 Gigabit Ethernet
ports provide high-speed uplinks to connect with higher-level backbone switches.
The switches can aggregate multiple Fast Ethernet and 2 gigabit rings while
providing high-quality data transmission.
Furthermore, to ensure
the traffic switching without data loss and blocking, the I-line
MRI-128-F4G-PSE provides a backplane with the integrated non-blocking switching
function.
You can also find the Lynx 3510-E-F2G2.5-P8G-LV, PSI-1010G-48V, and Viper-120A-T4G-P8-HV models in the POE Ethernet Switches.
Enjoy the ease of online inquiries for the Westermo MRI-128-F4G-PSE/24 Rackmount Managed PoE Switch. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | : 24 Ports (RJ45 connector with 24 PoE injectors) |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x 10/100/1000Base-TX SFP combo ports (RJ-45 connector), 1 x RS-232 Console Port (DB-9 connector), 1 x Relay Output (1 A @ 24 V) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | - |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | PSU: 90 – 264 VAC / 127 – 370 VDC, 300 W, DC1/DC2: 53 VDC (46 – 57 VDC), redundant dual inputs, PoE Power: 36 – 57 VDC, 0.6 A, Supply – 48 VDC |
| Operating Voltage | - |
| Power Consumption | Max. 28 Watts |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Above 200,000 Hours, MIL-HDBK-217F GB standard |
| Switch specifications | |
| Most forwarding speed | 12.8 Gbit/s |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 44 mm (H) x 438 mm (W) x 170 mm (D) |
| Housing | IP31 protection Rugged aluminum case |
| Installation | 19-inch, 1U Rack Mount |
| Operating Temperature | –25 to +70ºC |
| Operation Humidity | 5% to 95% (non-condensing) |
| Standards and Certifications | EMI: FCC Class A, CE/EN55022. Class A; EMS: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11; Traffic: NEMA TS2 (Pending); Marine: DNV (Pending), GL (Pending); Safety: UL, cUL, EN60950; Shock: IEC60068-2-27; Vibration: IEC60068-2-6; Free Fall: IEC60068-2-32; MIL-HDBK-217F GB ; IP31; |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | Appr. 5kg |
| Standards and protocols | |
| Protocols and work standards | RSTP, LACP, LLDP, PTP, MSTP, TCP/IP |
| Protocols and management standards | Configuration: Cisco-Like CLI, HTTP, HTTPS, SSL, SSH and WeDashboard.; Jumbo Frame Enable/Disable: Up to 9,216 KBytes; LLDP: Link Layer Discovery Protocol to advertise system / port identity and capability on the local network; SNMP: SNMP V1,V2c and V3; Time synchronization: NTP –Network time protocol, IEEE 1588 – High-precision time protocol; Port Mirroring: Online traffic monitoring; Port Trunk: Static Trunk and 802.3ad LACP , Up to 9 Trunk Group, 2 – 8 ports per trunk; Rate Control: Ingress and Egress rate limiting; VLAN: IEEE802.1Q VLAN and GVRP. Up to 256 VLANs; Quality of Service: IEEE802.1p COS and Layer 3 TOS/DiffServ; IGMP Snooping: IGMP Snooping V1/V2/V3 for multicast filtering and; IGMP: Query V1/V2; GMRP: GARP Multicast Registration Protocol; Network Security: Port Security – Assign authorized MAC to a specific port, 802.1x – Port-based Network Access Control (PNAC), Access Control List – Permit/Deny access control lists, RADIUS – Remote Authentication Dail In User Service; DHCP: DHCP-Server – Support 255 Dynamic IP poll, DHCP Option 82 – Relay the DHCP request to remote server; E-mail Warning: Automatic warning by pre-defined events; Syslog: Message logged with server and client mode |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
