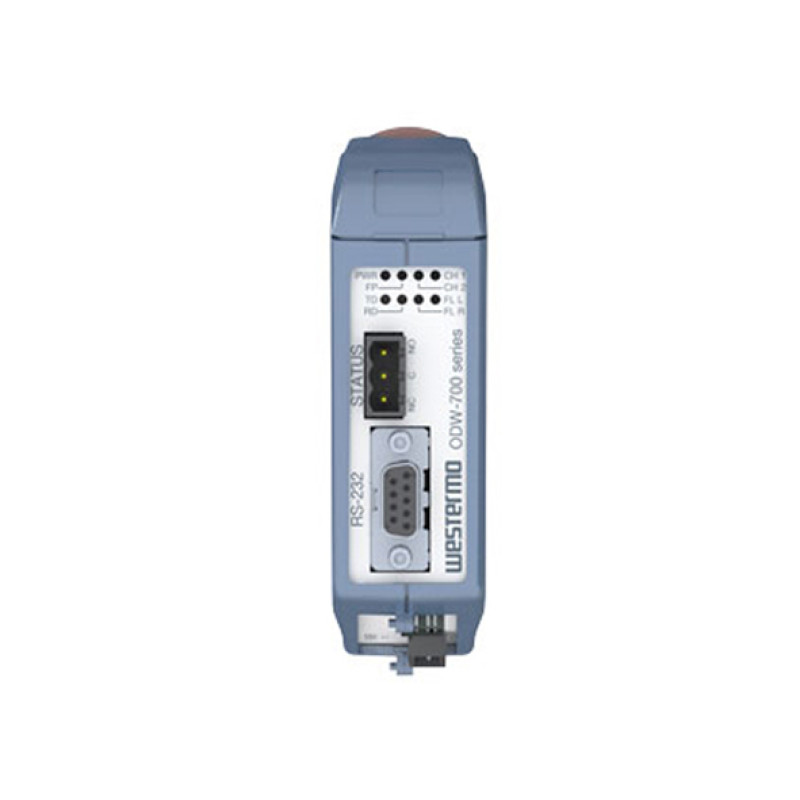

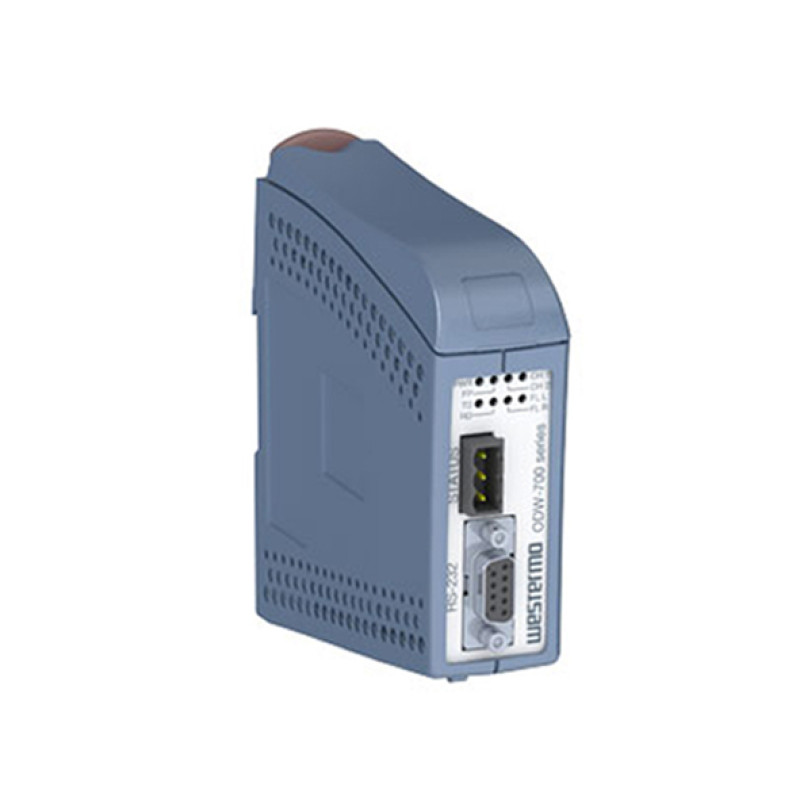

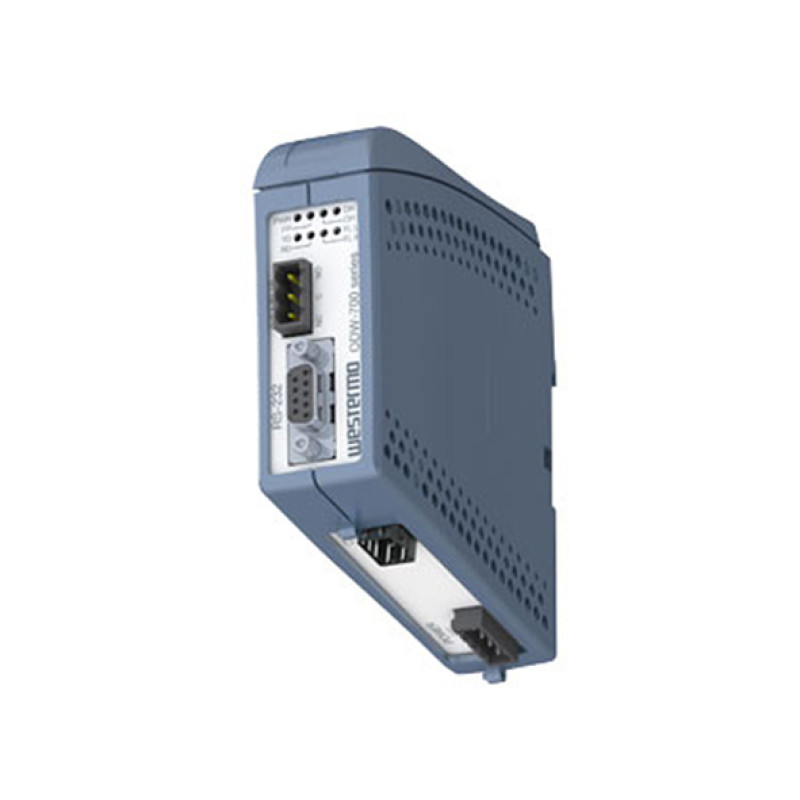

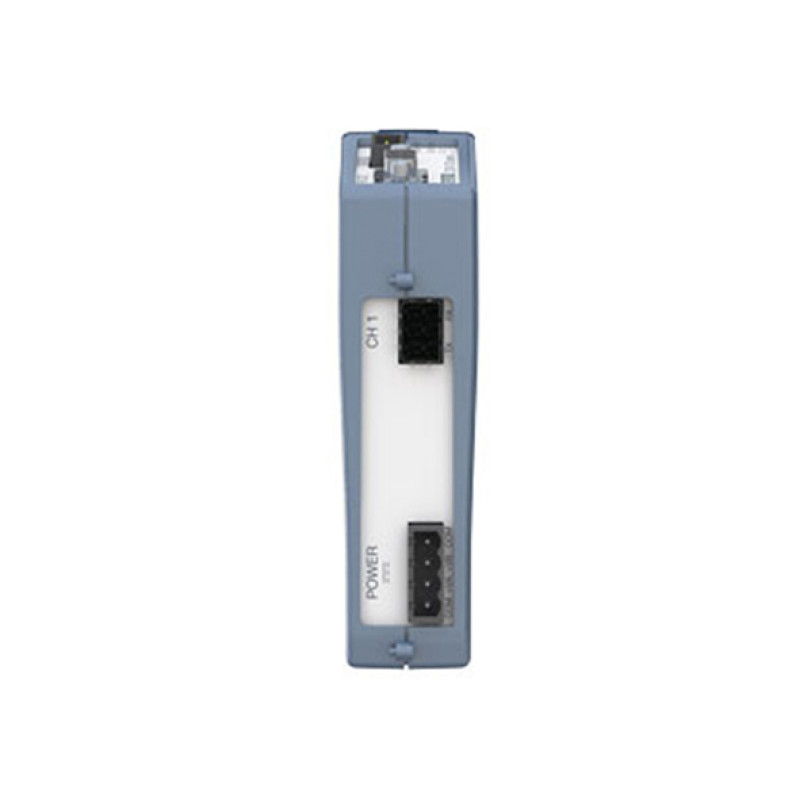

Westermo ODW-720-F1 Serial to Fiber Converter
- Point-to-Point Fibre Converter RS-232
- 1 x RS-232 Port (300 bit/s – 250 kbit/s)
- 1 x 100 Mbit/s SFP Slot (LC connector)
- Up to 120 KM Typical data transmission distance on fiber
- Compact housing with integral DIN rail clip
- IP21-rated PC/ABS body material design
- Dual 10 V to 60 VDC power input
- -40 to +70°C operating temperature range
.png)
Description
The ODW-720-F1 has been designed to allow RS-232 protocols to be transmitted point-to-point over a fiber-optic link. The design allows the use of a range of Westermo-verified SFP (Small Form Pluggable) transceivers, which can provide solutions with, for example, only a single fibre or distances up to 120 km.
This unit has been designed for industrial use where the requirement is for a long and reliable service life in a harsh environment. To ensure this reliable operation ,we manufacture using the highest quality components. The ODW-720 draws on Westermo’s many years of knowledge of serial protocols and can even transmit the RTS/CTS hardware controls if required.
The ODW is simple to install, being small with a simple integral DIN rail clip. The unit is totally transparent to any data rate, so no configuration is needed. The comprehensive LEDs provide a quick and easy way of detecting any network problems that may be encountered.
You can also find the ODW-720-F2, ODW-710-F1, and ODW-730-F1 models in the Fiber Optic Modems.
Inquire about the Westermo ODW-720-F1 Serial to Fiber Converter, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | : 1 x RS-232 port (female 9-position D-sub) |
| USB | |
| Other ports | : 1 x 100 Mbit/s SFP Slot (LC connector) |
| Isolation | : To power and status ports |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 300 bit/s – 250 kbit/s |
| Maximum data transmission distance | Up to 120 km (depending on SFP module and fiber type) |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | - |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | Asynchronous or synchronous |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | - |
| RS-485-2w Signals | - |
| RS-485-4w Signals | - |
| Power Requirements | |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Input Voltage | 12 to 48 VDC and 24 VAC |
| Input Current | 300 mA @ 12 VDC, 150 mA @ 24 VDC, 75 mA @ 48 VDC |
| Connector | Detachable screw terminal |
| General | |
| Fan / Fanless | Fanless |
| MTBF | MIL HDBK-217K: 500,000 hours |
| Physical Characteristics | |
| Dimensions | 34 x 122 x 123 mm (1.34 x 4.80 x 4.84 inches) |
| Housing | PC/ABS |
| Installation | Din-rail mounting |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN/IEC 61000-6-1, Immunity residential environments, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Marine: DNV rules for classification - Ships and offshore units; Safety: UL/CSA 60950-1, IT equipment; IP21; MIL-HBDK-217F; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27 |
| Storage Temperature | -40 to +70°C (-40 to +158°F) |
| Weight | 260 gr |
| LED Indicators | |
| LED Per Port | |
| Power | |
