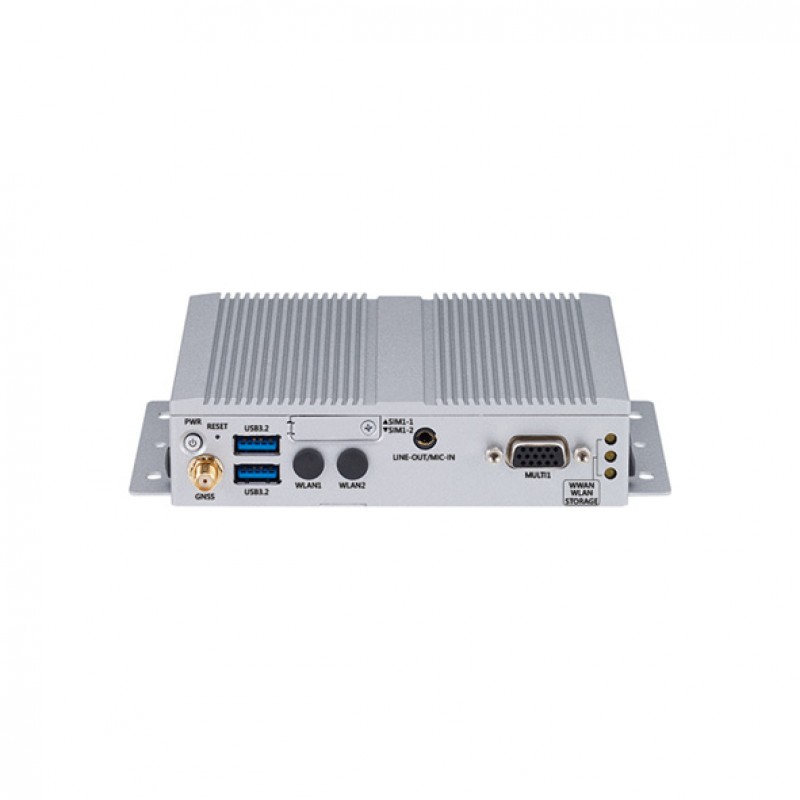

Nexcom VTC 1920 In-Vehicle Computer
- Super slim and ruggedized design
- Intel Atom® processor x7211RE (1.0GHz)
- Built-in 1 x CAN FD, 1 x CAN 2.0B
- Smart power management with Ignition on/off delay via software control and low voltage protection
- Built-in U-blox M9N GNSS
- Dual SIM cards for WWAN modules
- Wide range DC input from 9 ~ 36V
- Wide operating temperature -40°C ~ 70°C
- Certified by CE/ FCC/ E13 mark
Description
VTC 1920, a super slim, rugged, and entry-level vehicle
computer with Intel Atom® processor x7211RE (1.0GHz), is designed for the harsh
in-vehicle environment. It allows it to comply with stringent MIL-STD-810H
military standards in rugged, fanless, and compact mechanisms. Because of the
super slim design, it is especially for vehicles with limited space to
locate the computer system, but without compromising with its space to scarify
its features.
VTC 1920 has onboard CAN FD and CAN 2.0B for vehicle
diagnostics and driver behavior management. An advanced GNSS receiver supports
GPS/Glonass/ QZSS/Galileo/Beidou. VTC 1920 features WLAN and WWAN wireless
connection capability with an external 2 x SIM socket which can support a better
connectivity quality by software. VTC 1920 keeps the flexibility to meet
different demands for telematics applications, such as IoT Gateway
infotainment, fleet management, and dispatching systems.
You can also find the VTC 1010 model in the Vehicle Telematics Computer.
Experience the convenient way to purchase the Nexcom VTC 1920 In-Vehicle Computer in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| General | |
|---|---|
| CPU | Intel Atom® processor dual core x7211RE, 1.0GHz |
| Memory | 1 x 260-pin DDR4 SO-DIMM socket support 3200MHz up to 16GB., Default 4GB |
| Expansion | 1 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/ 5G NR module with 2 x external Nano-SI, 1 x M.2 2230 Key E socket (USB 2.0, PCIe 3.0), (optional on daughter board), 1 x Full size mini-PCIe socket (USB 2.0), BOM optional M.2 3052 Key B (USB 2.0) for LTE module (optional on daughter board) |
| Function | 1 x u-blox NEO-M9N onboard (support GPS/Glonass/QZSS/Galileo/BeiDou), Built-in G-sensor, TPM2.0 |
| Storage | 1 x M.2 Key M 2242 for SATA 3.0, 1 x M.2 Key M 2280 for SATA 3.0 (optional on daughter board) |
| Interface | |
| I/O Interface-Front | 1 x Power button with LED, 3 x LED for WWAN, WLAN, Storage, 1 x Reset button, 2 x SIM socket (Nano type) with cover, 1 x DB15 connector for 1 x CAN FD, 1 x CAN 2.0B, 1 x DR, 1 x analog input (detect 9~36VDC), 1 x Line-out/MIC-In, 2 x Type A USB 3.2, 3 x antenna hole for GNSS/WLAN |
| I/O Interface-Rear | 1 x Phoenix connector for Power/GND/Ignition input, 1 x RJ45 10/100/1000/2500 Mbps Ethernet with LED, 1 x HDMI, resolution up to 3840 x 2160 @30Hz, 1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX), 3 x DI, 3 x DO |
| Power Requirement | |
| Power Management | Selectable boot-up & shut-down voltage for low power protection by software, Setting 8-level power on/ off delay time by software, Status of ignition and low voltage can be detected by software, Support S3/ S4 suspend mode |
| Physical Characteristics | |
| Dimensions | 130mm (W) x 120mm (D) x 32mm (H) (5.12” x 4.72” x 1.26”), Weight: 0.6 kg (1.3 lbs) |
| Operating temperatures | Operating temperatures: -40°C~70°C |
| Storage temperatures | Storage temperatures: -45°C~85°C |
| Humidity | IEC60068-2-78, Damp heat steady state test, 40C, 95%, 48Hrs |
| Weight | 0.6 kg (1.3 lbs) |
| Environment | Temperature: Operating temperatures: -40°C~70°C, Storage temperatures: -45°C~85°C, Damp heat test per EN60068-2-30, Humidity: IEC60068-2-78, Damp heat steady state test, 40C, 95%, 48Hrs, Vibration: IEC 60068-2-64, 2G, Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4, Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24, Shock: MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g, Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash, hazard shock test=75g |
| Standards/Certifications | CE approval, FCC Class A, E13 mark |
| Compatible Operating Systems | |
| Operating System | Windows 10, 11 (64-bit), Linux 4.x |
