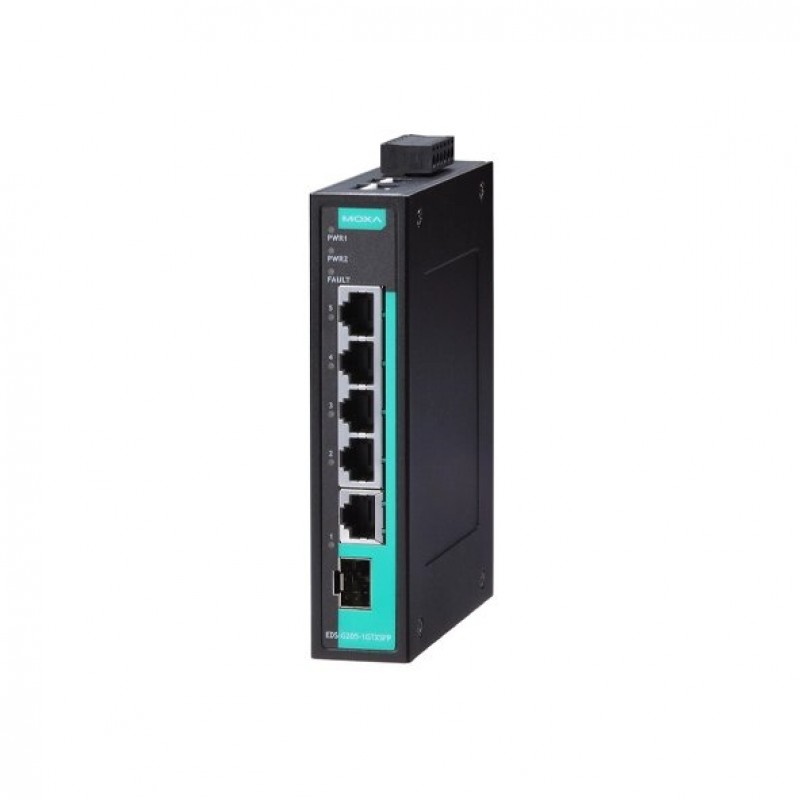

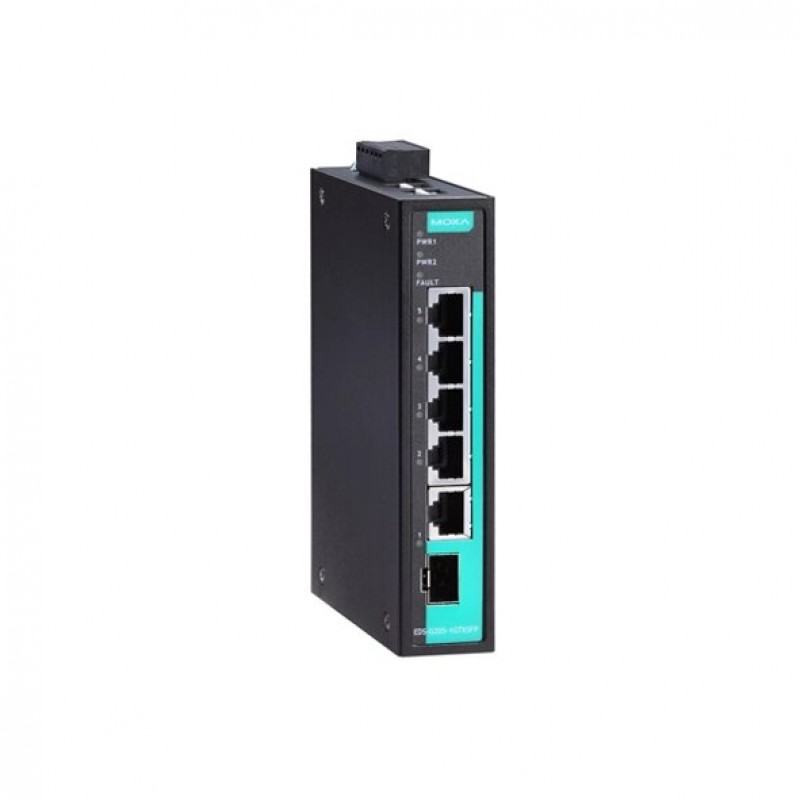

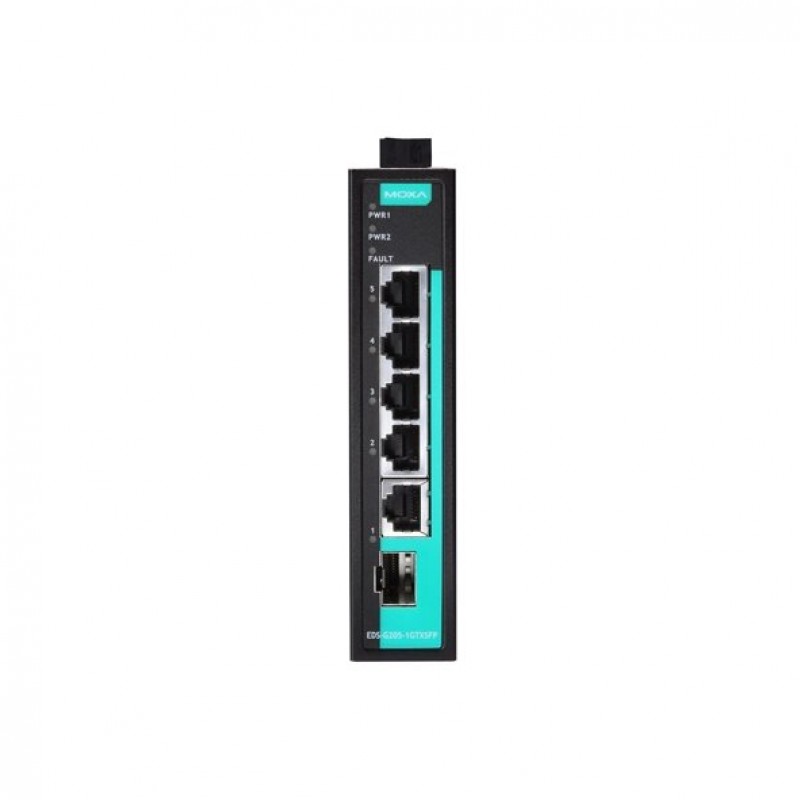

MOXA EDS-G205-1GTXSFP Unmanaged Ethernet Switches
- 4 x 100/1000Mbps ports (RJ45 connector)
- 1 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- DIN-rail and Wall mounting
- IP30-rated metal housing
- 12/24/48 VDC Redundant dual power inputs
- -10 to 60°C operating temperature
- Brand: MOXA
- Product Code: EDS-G205-1GTXSFP
.png)
Description
The EDS-G205 and EDS-G308 switches are equipped with 5 and 8 Gigabit Ethernet ports, respectively, and up to 2 fiber optic ports (EDS-G308-2SFP series only), making them ideal for applications that demand high bandwidth. The EDS-G205/G308 switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. Two models are available in this Specifications series. One model has an operating temperature range of 0 to 60°C, and the other model has an extended operating temperature range of -40 to 75°C. Both models undergo a 100% burn-in test to fulfill the special needs of industrial automation control applications. The EDS-G205/G308 switches can be installed easily on a DIN rail or in distribution boxes.
You can also find the EDS-G205A-4PoE-1GSFP-T, EDS-G205A-4PoE-T, and EDS-G205A-4PoE-1GSFP models in the DIN-Rail Ethernet Switches.
Easy World Automation offers the
easiest way to buy the MOXA EDS-G205-1GTXSFP Unmanaged Ethernet Switchesin the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 5 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 4 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 380 mA |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6V DC to 60V DC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 2,823,446 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | Unmanaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Maritime: ABS, LR, NK, DNV; IP30Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 290 g (0.64 lb) |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
