Description
The ioLogik 4000 Series is suitable for remote monitoring and alarm systems, such as those used for water treatment systems, water supply systems, wastewater treatment systems, and power monitoring systems. These kinds of applications need more I/O points and a variety of I/O types, including temperature sensors, gas detectors, and water quality detectors, all of which can benefit from the versatile mixture of I/O features supported by the ioLogik 4000 Series.
End of Life Product - Replacement Available

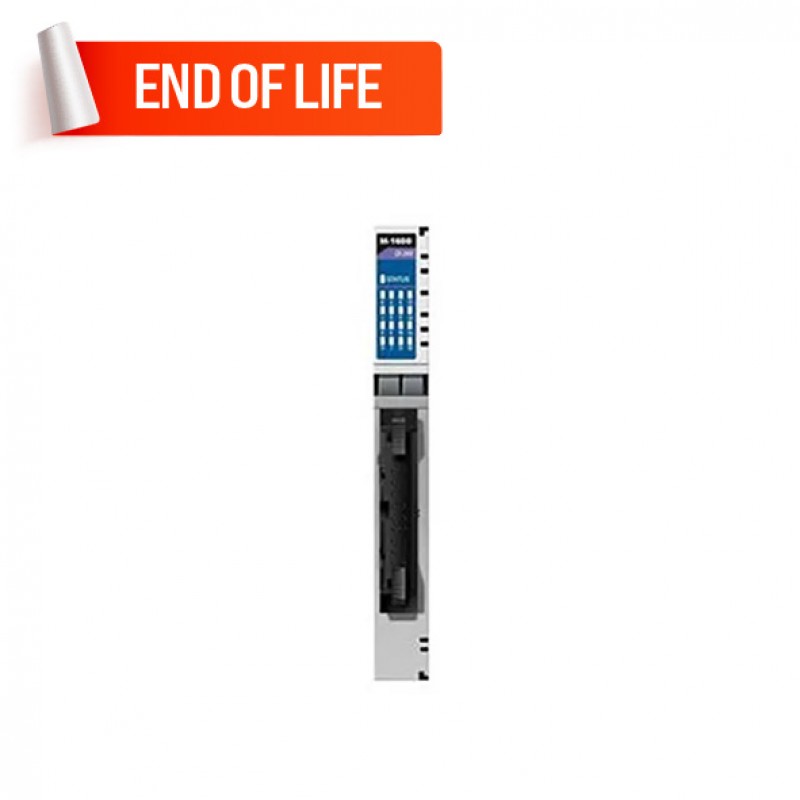

Please note that the ioLogik 4000 Series (M) Modules has been phased out and replaced by the 45MR Series.
Easy World Automation offers the
easiest way to buy the MOXA M-1601 Remote I/O Modules in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| INPUT/OUTPUT INTERFACE | |
|---|---|
| Digital Input and Output | : 16 x Digital Input Channels (Source 24 VDC) |
| Analog Input and Output | |
| System Power Input Channels | |
| Thermocouple Channels | |
| Field Power Input and Output | |
| Relays | |
| RTD Channels | |
| Ethernet Ports | |
| CAN Ports | |
| Serial Ports | |
| Isolation | : 3k VDC or 2k Vrms |
| SERIAL INTERFACE | |
| Connector | - |
| Serial Standards | - |
| Serial Communication Parameters | - |
| Serial Signals | - |
| GENERAL | |
| MTBF | 11,694,600 hrs |
| POWER REQUIREMENTS | |
| Power Connector | Spring-type Euroblock terminal |
| Input Voltage | - |
| Power Consumption | 40 mA @ 5 VDC |
| PHYSICAL CHARACTERISTICS | |
| Housing | Plastic |
| Dimensions | 14.1 x 99 x 70 mm (0.56 x 3.90 x 2.76 in) |
| Installation | DIN-rail mounting |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | Under 80 g |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Standards and Certifications | EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; RoHS, CRoHS, WEEE |
| Altitude | - |
