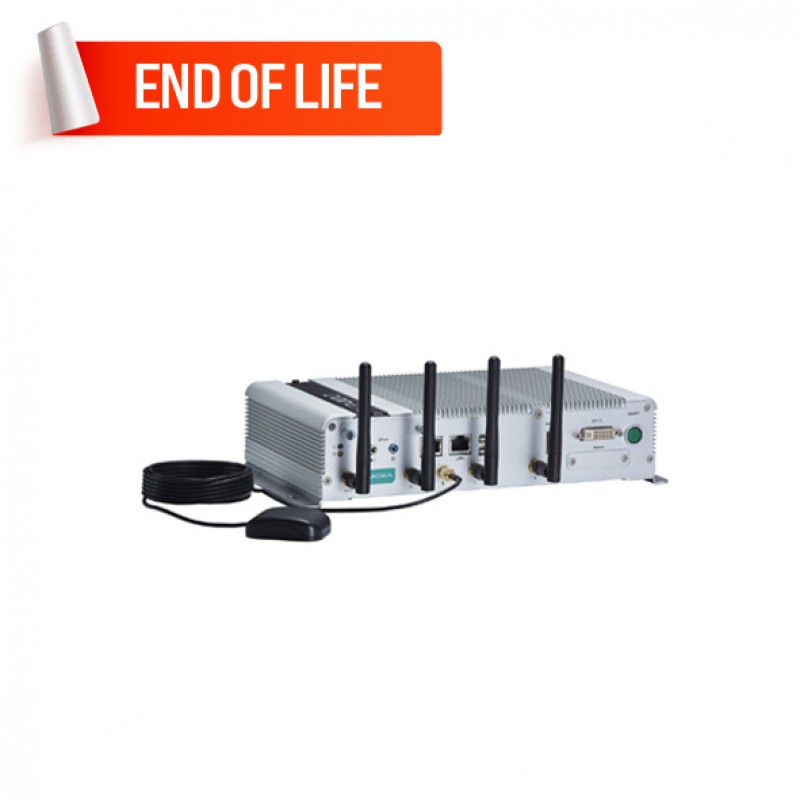

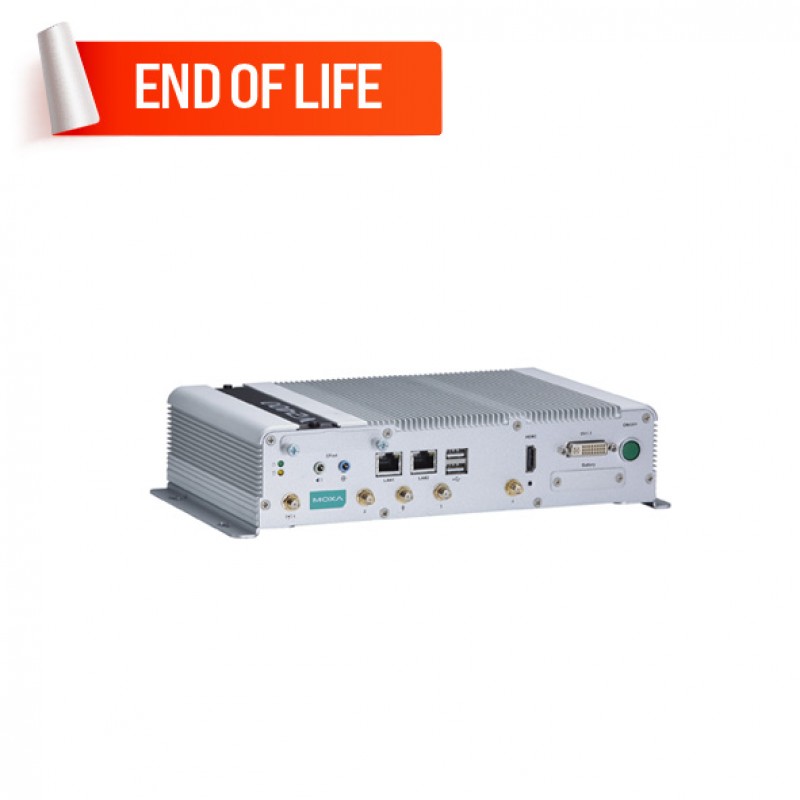

MOXA V2403-C2-T-W7E1 Wide Temperature Computer

  • CPU Intel® Celeron® 1047UE
  • Pre-installed Windows Embedded Standard 7 (WS7E)
  • 2 x 10/100/1000 Mbps Ethernet ports
  • 4 x RS-232/422/485 Serial ports
  • IP30-rated Aluminum body design
  • 9 to 36 VDC input power range
  • DIN-rail and Wall mounting
  • -40 to 70°C operating temperature

Description

The V2403 Series fanless x86 embedded computer is based on the Intel® 3rd gen Core-i™ Series processor features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 70°C (with a special-purpose Moxa wireless module installed).

The V2403 Series supports “Moxa Proactive Monitoring” for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.


End of Life Product - Replacement Available

Please note that the V2403 Series has been phased out and replaced by the V2403C Series.


Enjoy the ease of online inquiries for the MOXA V2403-C2-T-W7E1 Wide Temperature Computer. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Computer
CPU Intel® Celeron 1047UE (Dual Core, 2M Cache, 1.40 GHz)
Supported OS Linux Debian 8 (Linux kernel v4.1), Windows Embedded Standard 7 (WS7E) 32-bit, Windows Embedded Standard 7 (WS7E) 64-bit
OS (pre-installed) Windows Embedded Standard 7 (WS7E)
System Memory Default 4 GB DDR3
Graphics Controller Intel® HD Graphics
Storage Slot 2.5-inch HDD/SSD slots x 1, CFast slot x 2, mSATA slots x 1
Interface
LAN 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection
Digital Input/Output Channels 4 x Digital Input Channels, 4 x Digital Output Channels
Serial Ports 4 x RS-232/422/485 ports (DB9 male connector)
USB 4 x USB 2.0 hosts, type-A connectors
Expansion Slot 2 x mPCIe slot
Serial Communication Parameters
Baudrate 50 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS, Toggle (RS-232 only)
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
LED Indicators
System Power x 1, Storage x 1
LAN 2 per port (10/100/1000 Mbps)
Serial 2 per port (Tx, Rx)
Power Requirements
Input Voltage 9 to 36 VDC
Input Current 3.51 A @ 9 VDC, 1.39 A @ 24 VDC, 0.93 A @ 36 VDC
Power Consumption 34 W (max.)
General
Alert Tools -
Automatic Reboot Trigger -
MTBF 329,398 hrs
Physical Characteristics
Dimensions Without ears: 250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in) , With ears: 275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in)
Housing Aluminum
Operating temperature -40 to 70°C (-40 to 158°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 1 V, IEC 61000-4-8 PFMF; Safety: EN 60950-1, UL 508, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-64; IP30; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB
Weight 2,168 g (4.82 lb)
Mounting DIN-rail mounting (optional), Wall mounting (standard)
