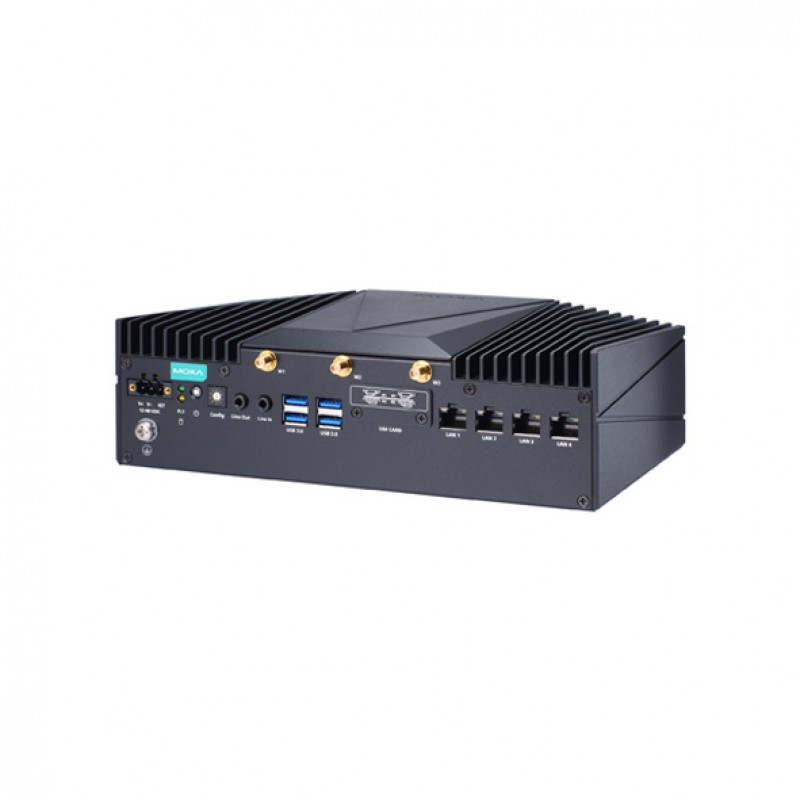

MOXA V2403C-KL1-T Wide Temperature Computer
- Intel® Celeron® 3965U CPU
- 1 × Optional OS Storage (mSATA)
- 2 × Optional SSD/HDD
- 4 x USB 3.0 (type A) USB Ports
- 12 to 48 VDC (Terminal Block) Power Input
- -40 to 70°C Operating Temperature
- 7th Gen Celeron® 3965U 2.2 GHz processor, 4 GbE ports, 4 COM ports, 4 DIs, 4 DOs, 1 HDMI/DP port, 1 mSATA slot, 2 2.5" SSD/HDD slots, 2 mPCIe slots, 4 USB ports
- Intel® Celeron® Processor 1047UE (2 M cache, 1.40 GHz) CPU
- Supported OS: Linux Debian 8 (Linux kernel v4.1), Windows Embedded Standard 7 (WS7E) 32-bit, Windows Embedded Standard 7 (WS7E) 64-bit
Description
The V2403C Series embedded computers are built around an
Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come
with up to 32 GB RAM, one mSATA slot, and two HDD/SSD for storage expansion.
The computers are compliant with EN 50121-4, E1 mark, and ISO- 7637-2 standards
making them ideal for rail-wayside and in-vehicle (except trains) applications.
V2403C computers are equipped with a rich set of interfaces
including 4 gigabit Ethernet ports, 4 RS-232/422/485 serial ports, 4 DIs, 4
DOs, and 4 USB 3.0 ports. In addition, they are also provided with 1
DisplayPort output and 1 HDMI output with 4K resolution.
Reliable connections and good power management are key to
in-vehicle applications. The computers are provided with 2 mPCIe wireless
expansion slots and 4 SIM-card slots to establish redundant LTE/Wi-Fi
connectivity. In terms of power management, startup, and shutdown delay
mechanisms help in avoiding system malfunction and damage.
You can also find the V2403C-KL3-T, V2403C-KL5-T, and V2403C-KL7-T models in the Wide Temperature Computers.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA V2403C-KL1-T Wide Temperature Computer through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| LAN | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4 |
| Computer | |
| CPU | Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz) |
| OS (Optional) | Windows Embedded Standard 7 64-bit or Linux Debian 8 64-bit |
| System Memory | SODIMM DDR4 slot x 2 |
| USB | USB 3.0 hosts x 4, type-A connectors |
| Display | |
| Graphics Controller | Intel® HD (integrated) |
| Display Interface | HDMI supports HDMI 1.4b, 1920 x 1200 resolution @ 60 Hz, DVI up to 1920x1200 resolution @ 60 Hz, VGA up to 1920x1200 resolution @ 60 Hz, VGA up to 2048x1536 resolution @ 75 Hz |
| Serial Interface | |
| Serial Standards | RS-232/422/485 ports x 4, software selectable (DB9 male) |
| Digital Input | |
| Input Channels | 4 x DIs |
| Digital Input Levels for Dry Contacts | Logic 0: Short to GND, Logic 1: Open |
| Digital Input Levels for Wet Contacts | - |
| Connector Type | Screw-fastened Euroblock terminal |
| Isolation | 3k VDC |
| Digital Output | |
| Output Channels | DOs x 4 |
| Output Current | - |
| On-State Voltage | - |
| Connector Type | 10-pin screw-fastened Euroblock terminal |
| Isolation | 3 kV optical isolation |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 115.2 kbps |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Storage Device | 2.5-inch HDD/SSD slots x 2, mSATA slots x 1 |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | - |
| Power Consumption | 70 W (max.) |
| General | |
| Automatic Reboot Trigger | - |
| MTBF | |
| CFast | 1 removable CFast socket for OS storage, 1 internal CFast socket for OS backup |
| Expansion Slot | mPCIe slots x 2 |
| Physical Characteristics | |
| Dimensions | Without ears: 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in) |
| Housing | Aluminum |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Telcordia (Bellcore), GB |
| EMC | EN 55032/35 |
| Weight | 2,500 g (5.51 lb) |
| Anti-Vibration | IEC 60068-2-64, IEC 61373, MIL-STD-810G |
| Safety | EN 62368-1, IEC 62368-1, UL 62368-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Anti-Shock | IEC 60068-2-27: 50 g/11ms ±X, ±Y, ±Z, 3 shocks each axis w/ mSATA, CFast, SSD |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: Signal: 1 kV, IEC 61000-4-8 |
| Mounting | Wall mounting (standard) |
| Isolation Protection | 2 kV |
