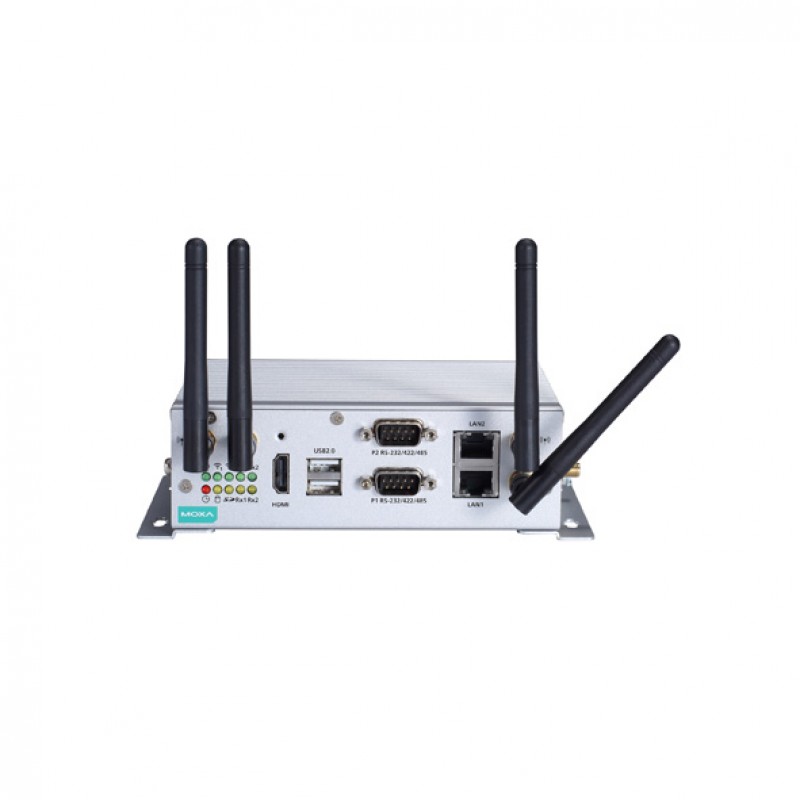

MOXA V2201-E1-W-T Wide Temperature Computer

  • 2 x 10/100/1000Mbps T(x) ports
  • 2 x RS-232/422/485 Serial ports
  • 2 x USB 2.0 and 1 x USB 3.0 hosts
  • 2 x mPCIe slot
  • 4/4 DI/DO
  • 1 x SODIMM DDR3/DDR3L slot
  • 4 GB DDR3L memory Pre-installed
  • 1 x SIM Slot
  • 32 GB mSATA
  • 16 GB SD Card
  • Intel Atom Processor E3815 (Single core, 512 K cache, 1.46 GHz) CPU
  • Supported OS: Linux Debian 8 (Linux kernel v4.1), Windows Embedded Standard 7 (WS7E) 32-bit, Windows Embedded Standard 7 (WS7E) 64-bit
  • -40 to 85°C operating temperature

Description

The V2201 Series ultra-compact x86 embedded computer is based on the Intel® Atom™ E3800 Series processor features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications.1 The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 85°C (-40 to 70°C with a special purpose Moxa wireless module installed).

The V2201 Series supports “Moxa Hardware Monitoring” for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.


You can also find the V2201-E1-T, V2201-E1-T-LX, and V2201-E1-T-W7E models in the Wireless Computers.


Easy World Automation offers the easiest way to buy the MOXA V2201-E1-W-T Wide Temperature Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
LAN Auto-sensing 10/100/1000 Mbps ports (RJ45) x 2
Computer
CPU Intel Atom Processor E3815 (Single core, 512 K cache, 1.46 GHz)
OS (Optional) Windows Embedded Standard 7 64-bit or Linux Debian 8 64-bit
System Memory 1 DDR3 SO-DIMM slot, 8 GB max.• E3815 and E3826 support DDR3L-1066, E3845 supports DDR3L-1333
Graphics Controller Intel® HD (integrated)
USB 1 bootable USB 3.0 port, 2 bootable USB 2.0 ports (type A)
Display
Display Interface Supports HDMI 1.4a, 1920 x 1080 pixels @ 60/24 Hz
Connector Type 1 HDMI connector (type A)
Serial Interface
Serial Standards RS-232/422/485 software-selectable ports (DB9 male) x 2
Digital Input
Input Channels DI x 4
Digital Input Levels for Dry Contacts Logic level 0: Close to GND, Logic level 1: Open
Digital Input Levels for Wet Contacts Logic level 1: +3 V max., Logic level 0: +10 V to +30 V (Source to DI)
Connector Type 10-pin screw-fastened Euroblock terminal
Isolation 3 kV optical isolation
Digital Output
Output Channels DO x 4, sink type
Output Current Max. 200 mA per channel
On-State Voltage 24 VDC nominal, open collector to 30 VDC
Connector Type 10-pin screw-fastened Euroblock terminal
Isolation 3 kV optical isolation
Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF
Baudrate 50 bps to 115.2 kbps
Serial Signals
RS-232 TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422 TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Data+, Data-, GND
LED Indicators
System Power, user-defined 2 LEDs per port (100/1000 Mbps)
LAN 2 LEDs per port (100/1000 Mbps)
Serial 2 LEDs per port (Tx and Rx)
Power Requirements
Input Voltage 9 to 36 VDC (3-pin terminal block for V+, V-, SG)
Input Current 2 A @ 9 VDC
Power Consumption 18 W
General
Automatic Reboot Trigger Software-programmable watchdog timer configurable from 1 to 255 seconds
MTBF 408,275 hrs
Storage Device mSATA, SD
Physical Characteristics
Dimensions Without ears: 150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in), With ears: 178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)
Housing Aluminum
Operating temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Relative humidity 5 to 95% (non-condensing)
Standards and Certifications Telcordia (Bellcore) Standard TR/SR
EMC EN 55032/24, EN 61000-6-2/6-4*
Weight 940 g (2.09 lb)
Anti-Vibration IEC 60068-2-64: 5 Grms, 5 Hz to 500 Hz, 1 hr/axis w/ mSATA, SD
Safety UL 60950-1, CSA C22.2 No. 60950-1-03 (60950-1-07), EN 60950-1, UL 508
Green Product RoHS, CRoHS, WEEE
Anti-Shock IEC 60068-2-27: 100 g/11 ms ±X, ±Y, ±Z, 3 shocks each axis w/ mSATA, SD
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8

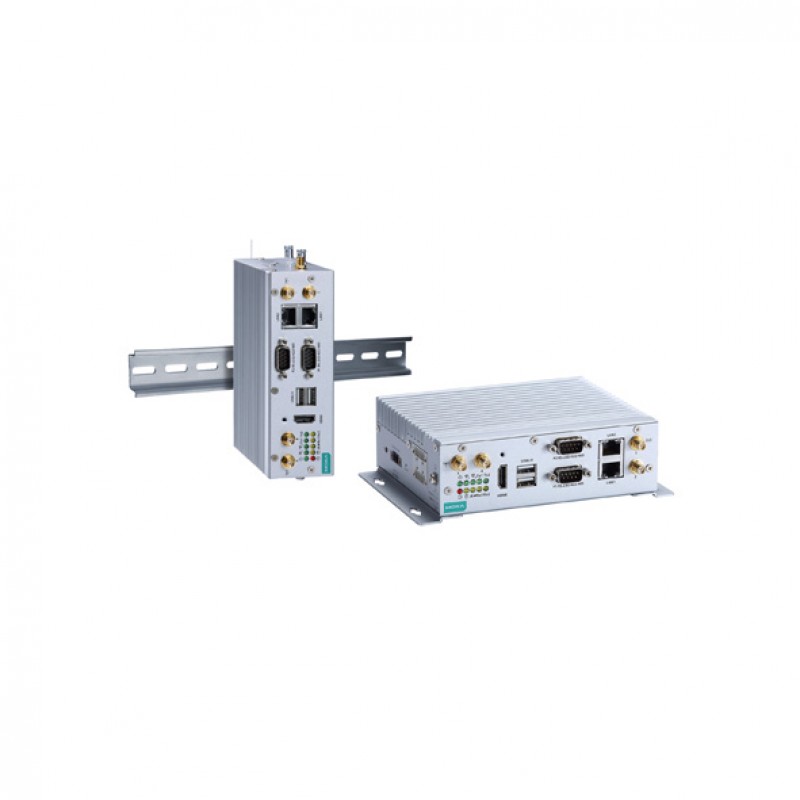

Mounting DIN rail, wall
Isolation Protection 1.5 kV
