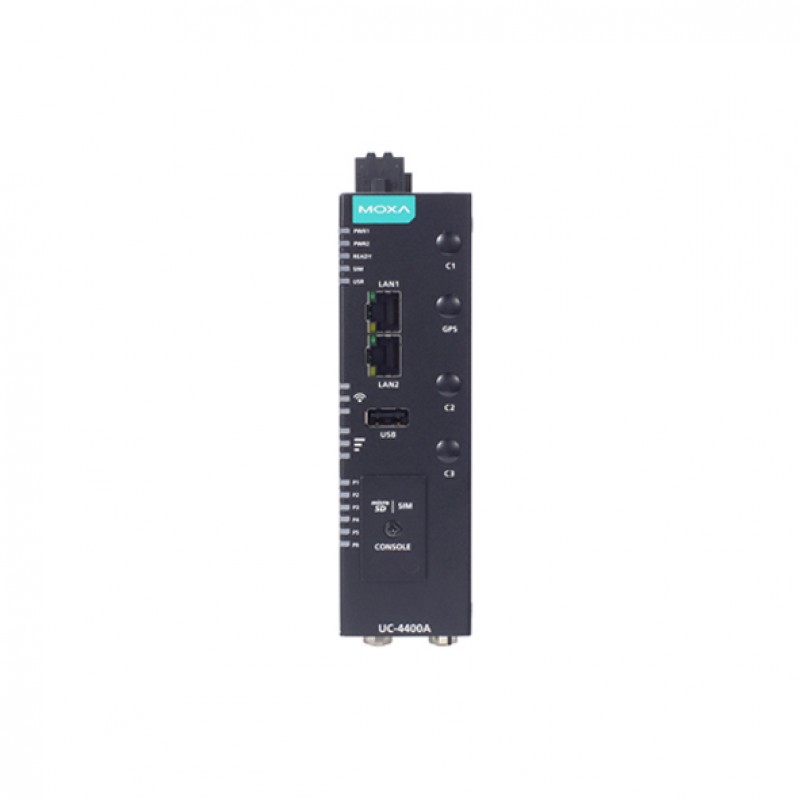

MOXA UC-4410A-T Industrial Embedded Computer
- CPU Arm Cortex-A53 quad-core 1.6 GHz
- Pre-installed Linux Debian 11, kernel 5.10
- 2 x 10/100/1000 Mbps Ethernet Ports
- 2 x RS-232/422/485 Serial Ports and 1 x CAN 2.0 A/B Port
- 9 to 48 VDC Redundant dual power inputs
- IP30-rated Metal and SECC body design
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature range
.png)
Description
The UC-4400A computing platform is designed for embedded
data-acquisition applications. The computer comes with up to four
RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and up to 2
CAN ports, as well as a Mini PCIe and M.2 E socket to support LTE Cat. 4 and
Wi-Fi 6E modules. These versatile capabilities let users efficiently adapt the
UC-4400A to a variety of complex communications solutions.
The UC-4400A is built around an Arm Cortex-A53 quad-core
processor that has been optimized for use in energy monitoring systems but is
widely applicable to a variety of industrial solutions. With flexible
interfacing options, this tiny, embedded computer is a reliable and secure
gateway for data acquisition and data processing at field sites as well as a
useful communications platform for many other large-scale deployments.
Wide-temperature cellular-enabled models are available for
extended-temperature applications. All units are thoroughly tested in a testing
chamber, guaranteeing that the cellular-enabled computing platforms are
suitable for wide-temperature applications.
You can also find the UC-4414A-I-T, UC-4430A-T, and
UC-4450A-T-5G models in the Wide Temperature Computers.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA UC-4410A-T Industrial Embedded Computer through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Computer | |
|---|---|
| CPU | Arm Cortex-A53 quad-core 1.6 GHz |
| Supported OS | Moxa Industrial Linux 3 (Debian 11, kernel 5.10), 2031 EOL |
| OS (pre-installed) | Linux Debian 11, kernel 5.10 |
| System Memory | 4 GB LPDDR4 |
| Graphics Controller | - |
| Storage Slot | - |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV built-in |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs (Screw-fastened Euroblock terminal connector) |
| Serial Ports | 2 x RS-232/422/485 ports (software-selectable, DB9 male connector) |
| USB | 1 x USB 2.0 host, type-A connectors |
| Expansion Slot | 1 x microSD socket |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.60 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 2, READY (device bootup) x 1, SIM card indicator x 1 |
| LAN | 2 ports, 1 per port (10/100/1000 Mbps) |
| Serial | 1 LED per port for 2 serial ports |
| Power Requirements | |
| Input Voltage | 9 to 48 VDC (Redundant dual power inputs) |
| Input Current | 1.53 A @ 9 VDC, 0.21 A @ 48 VDC |
| Power Consumption | 10 W @ 95% CPU loading |
| General | |
| Alert Tools | External WDT (watchdog timer) |
| Automatic Reboot Trigger | External RTC (real-time clock) |
| MTBF | 1,311,070 hrs |
| Physical Characteristics | |
| Dimensions | 141.5 x 120 x 41 mm (5.57 x 4.72 x 1.62 in) |
| Housing | Metal, SECC |
| Operating temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4, UKCA, RCM, KC, BSMI; EMI: FCC Part 15B Class A, ICES-003 Class A, EN 55032 Class A, EN 61000-6-4 Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: line-to-line 2 kV, Signal: line-to-ground 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V, IEC 61000-4-8 PFMF; International Approval: FCC, CE, ISED, UKCA, RCM, KC, BSMI; Safety: IEC 62368-, EN 62368-1, UL 62368-1, BSMI; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-64, 2 grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached); Green Product: RoHS, CRoHS, WEEE; IP30; Telcordia (Bellcore) Standard TR/SR |
| Weight | 750 g (1.7 lb) |
| Mounting | DIN-rail mounting, Wall mounting (with optional kit) |
