Description

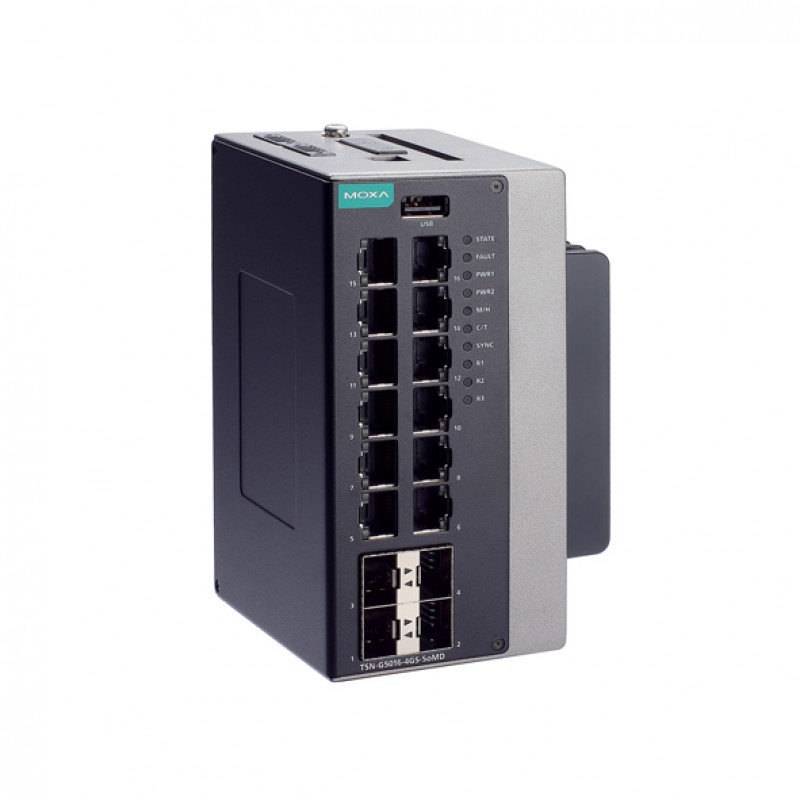

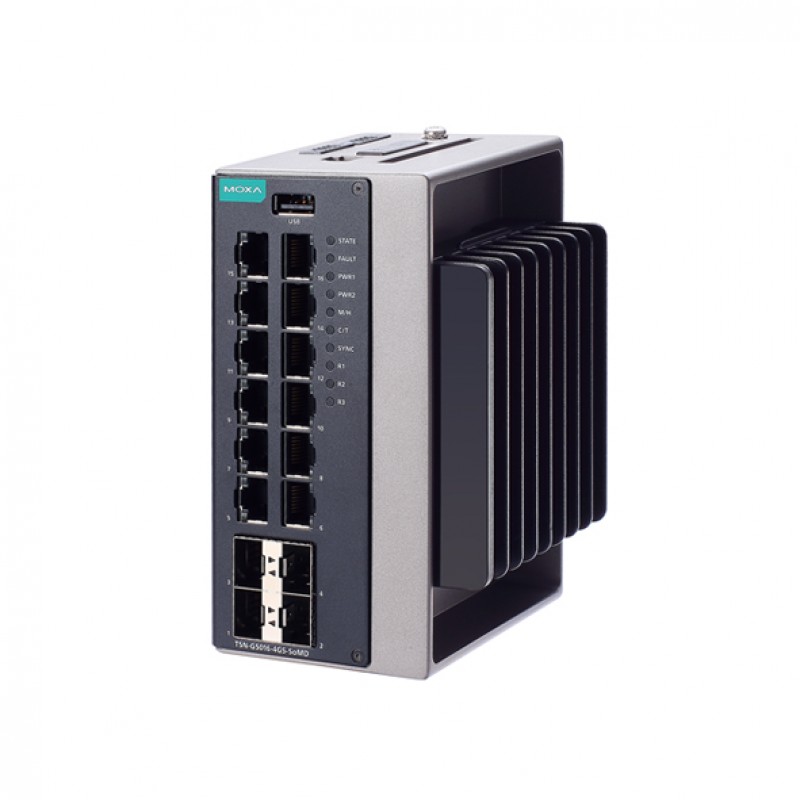

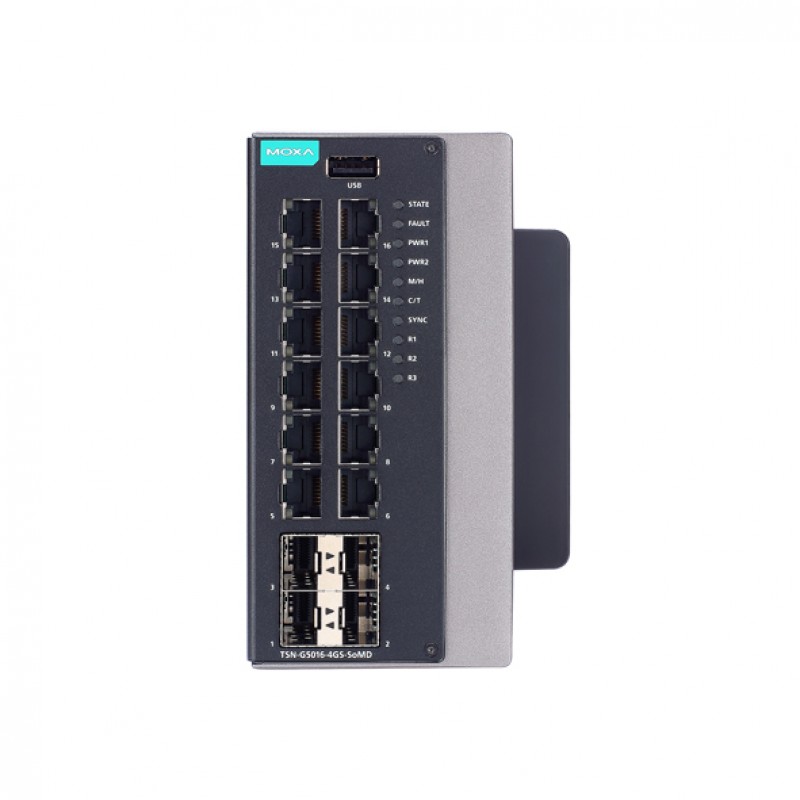

The TSN-G5016 Series is designed to meet the demands of
modern industrial networks and realize the vision of Industry 4.0. Equipped
with up to four 10GbE Ethernet ports, these switches provide high-bandwidth,
bounded low-latency communication, making them ideal for data-intensive
applications and future-proof network expansion.
The compact and flexible design allows the TSN-G5016 Series
to fit easily into confined spaces, while the durable IP40-rated metal housing
ensures reliable operation in harsh industrial environments. The user-friendly
web interface simplifies configuration and management, reducing deployment time
and operational complexity.
Leveraging standard Ethernet time-sensitive networking (TSN)
technology, the TSN-G5016 Series enables one unified Ethernet network that
supports reliable, deterministic, bounded low-latency communication, with the
ability to expand TSN capabilities through future firmware upgrades.
You can also find the TSN-G5016-4XGS-SoMD-LV-T model in the DIN-Rail Ethernet Switches.
Enjoy the ease of online inquiries for the MOXA TSN-G5016-4GS-SoMD-LV-T Managed Ethernet Switch. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 12 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 4 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel (1 A @ 24 VDC), 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | : STATE, FAULT, PWR1, PWR2, M/H, C/T, SYNC, R1, R2, R3 |
| Power Requirements | |
| Input Current | 3A (max.) |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12 to 48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 809,568 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 84 x 140 x 105 mm (3.31 x 5.51 x 4.13 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 61010-2-201, EN 62368-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP40; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1,380.5 g (3.04 lb) |
| Standards and protocols | |
| Protocols and work standards | RSTP, STP |
| Protocols and management standards | IPv4/IPv6, LLDP, SMTP, SNMP Inform,, SNMPv1/v2c/v3, SNMP Trap, DHCP Server/Client, ARP, TFTP, SFTP, HTTP, HTTPS, SSH, Telnet, Private MIB, Syslog, Port Mirroring, 802.1Q VLAN, Static Multicast |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
