Description

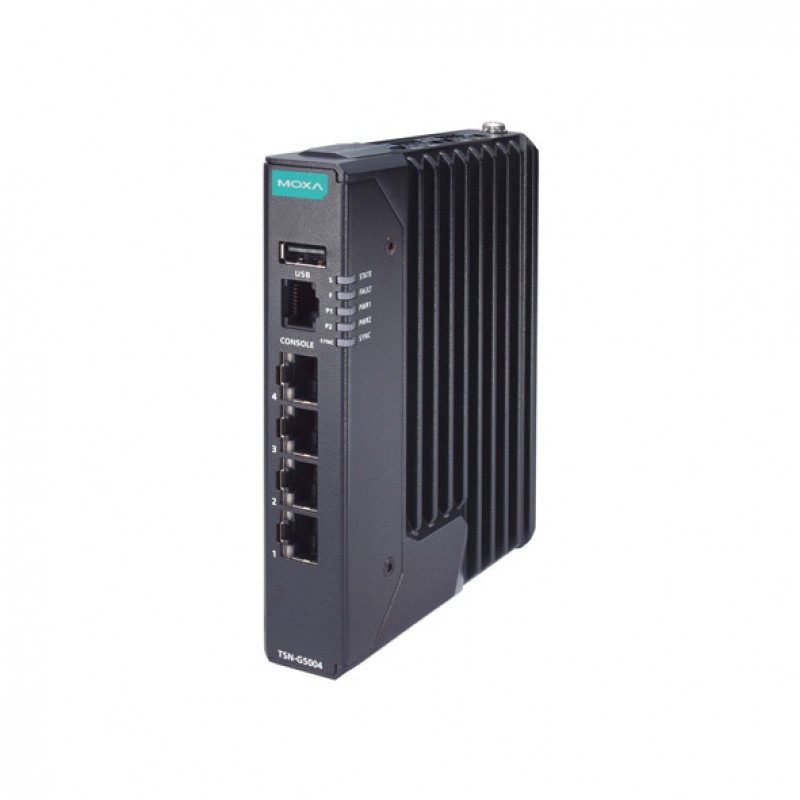

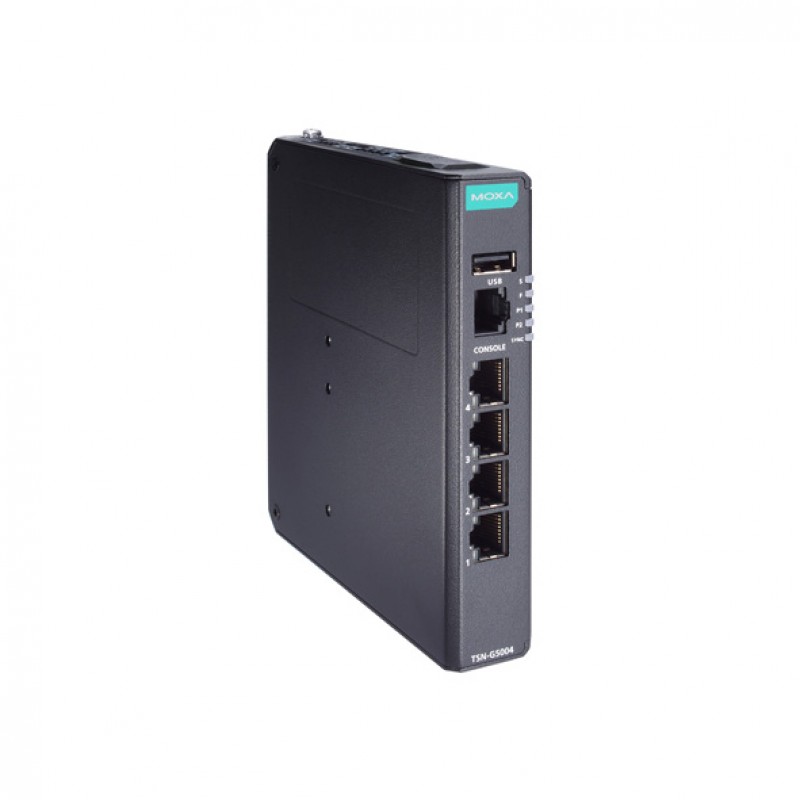

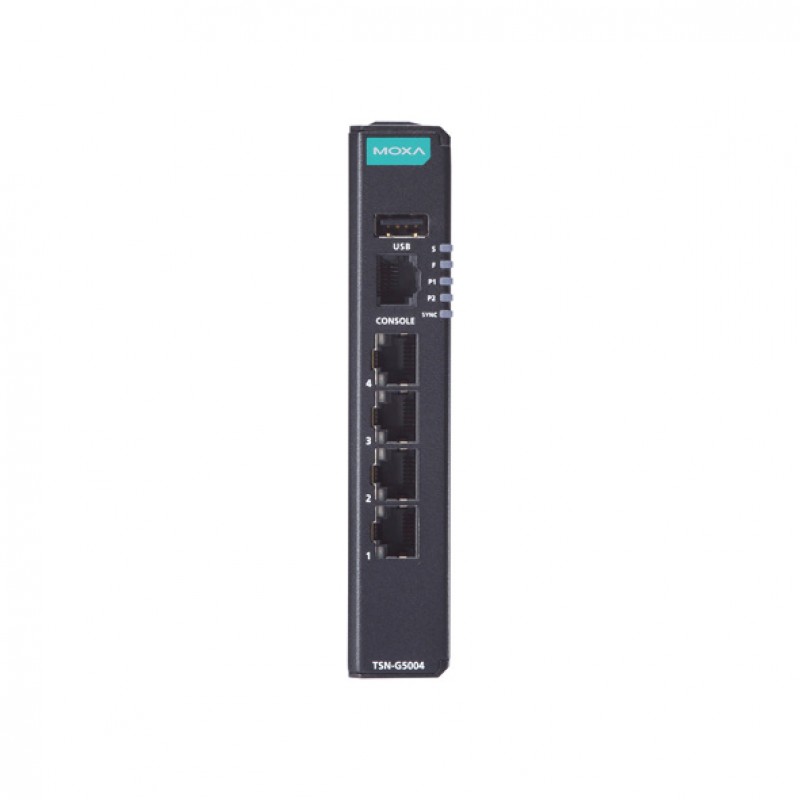

The TSN-G5004 Series switches are ideal for making
manufacturing networks compatible with the vision of Industry 4.0. The switches
are equipped with 4 Gigabit Ethernet ports. The full Gigabit design makes them
a good choice for upgrading an existing network to Gigabit speed or for
building a new full-Gigabit backbone for future high-bandwidth applications.
The compact design and user-friendly configuration interfaces provided by the
new Moxa web GUI make network deployment much easier. The TSN-G5004 Series leverages
standard Ethernet Time-sensitive Networking (TSN) technology to enable
real-time communications with future firmware upgrades adding support for
additional TSN standards.
You can also find the TSN-G5008-2GTXSFP model in the DIN-Rail Ethernet Switches.
Enjoy the ease of online inquiries for the MOXA TSN-G5004 Managed Ethernet Switch. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 4 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 4 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel |
| Features and capabilities | |
| Backup | : ABC-02 and ABC-03 |
| LED Indicators | |
| LED Per Port | : STATE, FAULT, PWR1, PWR2, SYNC |
| Power Requirements | |
| Input Current | 1.25 A @ 12 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12 to 48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 848,997 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 25 x 135 x 115 mm (0.98 x 5.32 x 4.53 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 61010-2-201, EN 62368-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP40; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 582 g (1.28 lb) |
| Standards and protocols | |
| Protocols and work standards | RSTP, STP, Turbo Chain, Link Aggregation |
| Protocols and management standards | IPv4/IPv6, LLDP, SMTP, SNMP Inform, SNMPv1/v2c/v3, SNMP Trap, DHCP Server/Client, ARP, TFTP, SFTP, HTTP, HTTPS, SSH, Telnet, Private MIB, Syslog, Port Mirror, 802.1Q VLAN, Static Multicast |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
