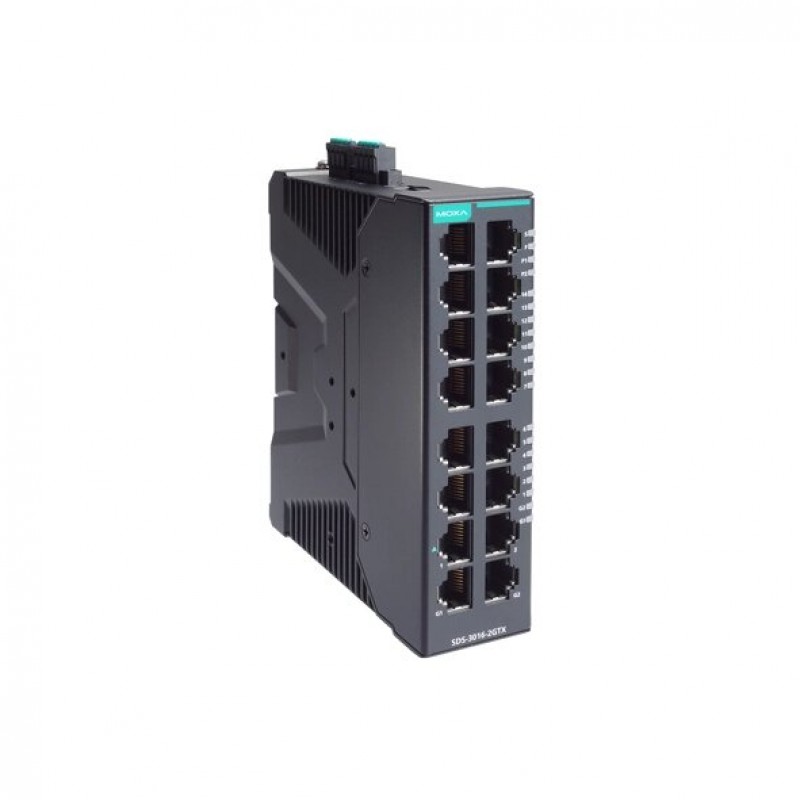

MOXA SDS-3016-2GTX-T Smart Ethernet Switch
- 14 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- Security features based on IEC-62443
- 12/24/48/-48 VDC Redundant dual inputs
- IP40-rated metal body design
- DIN-rail mounting
- -40 to 75°C operating temperature
.png)
Description
The SDS-3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle. The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.
You can also find the SDS-3016-2GTX, SDS-3016-2GSFP, and SDS-3016-2GSFP-T models in the DIN-Rail Ethernet Switches.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA SDS-3016-2GTX-T Smart Ethernet Switch through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 14 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 2 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Digital Input Channel, 1 x Alarm Contact Channel, 1 x USB Type A Storage Port |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 12-48 VDC, 0.858 A (max.) |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48/-48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 1,109,179 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Smart Managed Switch |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in) |
| Housing | Metal |
| Installation | DIN-rail mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 30 A/m; Safety: EN 62368-1, UL 61010-2-201; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP40; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 590 g (1.3 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, PROFINET IO Device, RSTP,STP, MRP |
| Protocols and management standards | Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog, 802.1Q VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
