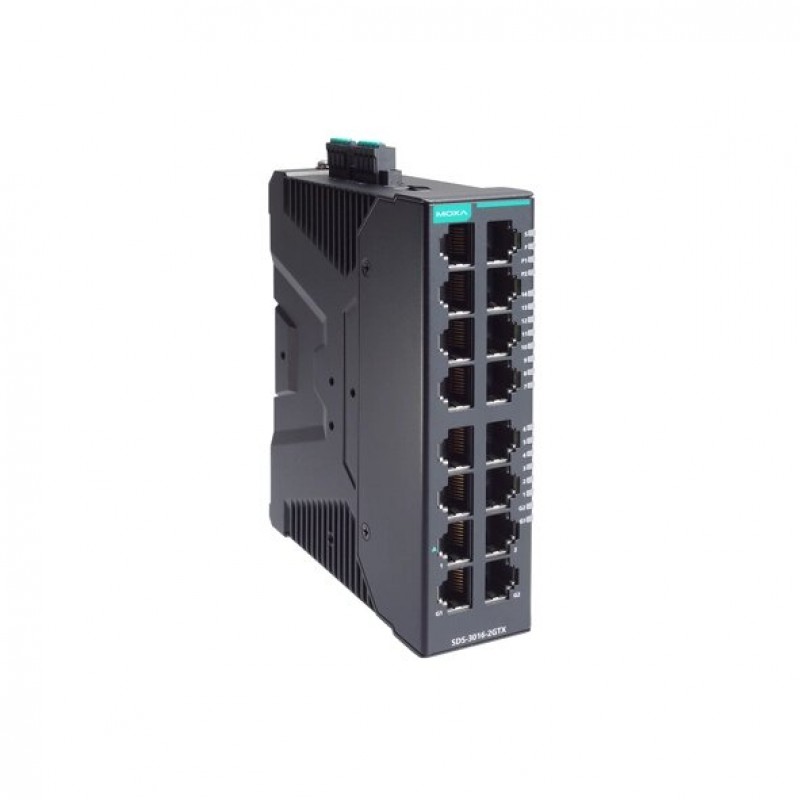

MOXA SDS-3016-2GTX Smart Ethernet Switch
- 2 x 10/100Mbps T(x) ports and 16 x 10/100/1000Mbps T(x) ports
- DIN-rail
- Metal body
- -10 to 60°C operating temperature
- 12/24/48/-48 VDC dual power inputs
- Brand: MOXA
- Product Code: SDS-3016-2GTX
.png)
Description
The SDS-3016 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle. The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3016 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.
You can also find the SDS-3016-2GTX-T, SDS-3016-2GSFP, and SDS-3016-2GSFP-T models in the DIN-Rail Ethernet Switches.
Enjoy the ease of online
inquiries for the MOXA SDS-3016-2GTX Smart Ethernet Switch. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | 14 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | 2 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 10/100Mb (Megabit) POE Ports | |
| M12 port | |
| Serial port | |
| USB | USB Type A |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Maximum power consumption | 12-48 VDC, 0.858 A (max.) |
| Power Consumption (Output Adapter) | 9.6 to 60 VDC |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 1,109,179 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Smart Ethernet switch |
| Port Aggregation | - |
| Physical Characteristics | |
| Housing | Metal |
| Installation | DIN-rail mounting |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, Safety, Shock, Freefall, Vibration |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x , IEEE 802.1D-2004, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p |
| Protocols and management standards | EtherNet/IP, Modbus TCP, PROFINET IO Device, Back Pressure Flow Control, DHCP Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, SNMP Inform, SNMPv1/v2c/v3, Syslog, RSTP, STP, MRP (Client), HTTPS/SSL, SNMPv3, Port Lock, NTP Server/Client, SNTP, 802.1Q VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
