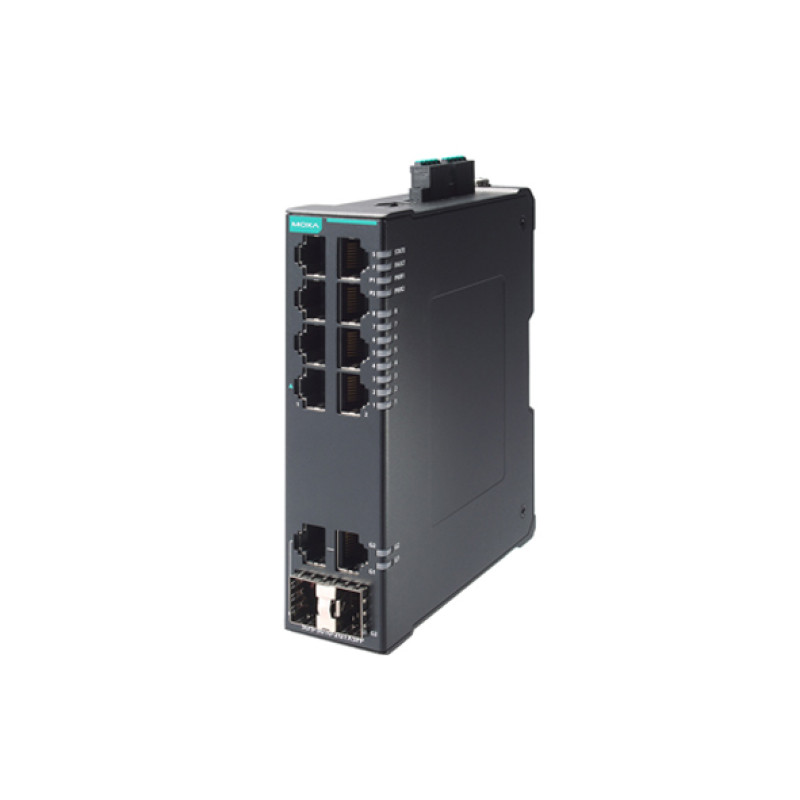

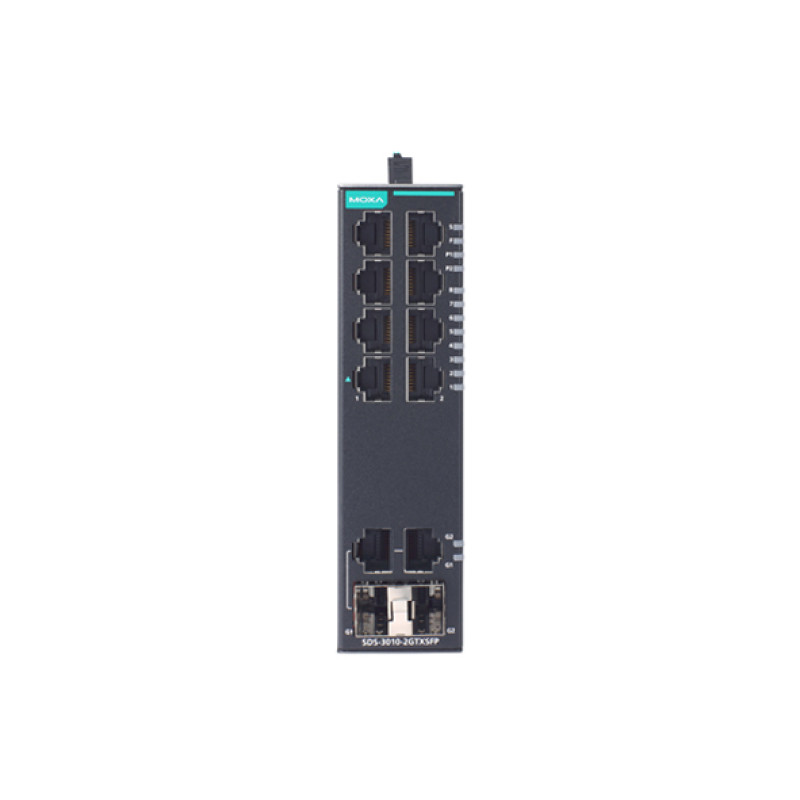

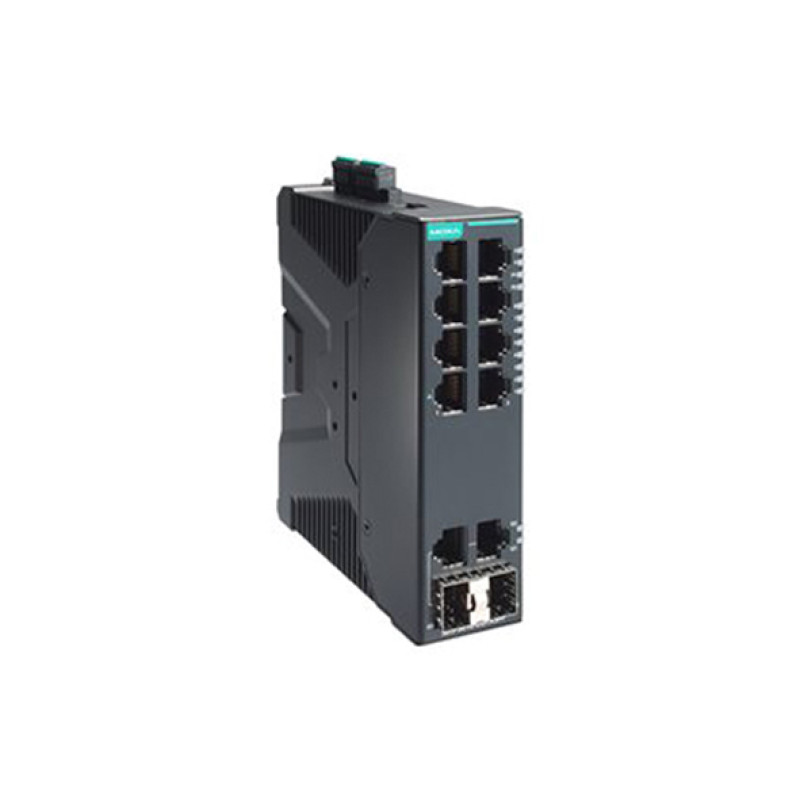

MOXA SDS-3010-2GTXSFP Smart Ethernet Switch

  • 8 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
  • 12 to 48 VDC Redundant dual power inputs
  • IP40-rated Metal body design
  • DIN-rail and Wall mounting
  • -10 to 60°C operating temperature range

Description

The SDS-3010 smart Ethernet switch is the ideal product for IA engineers and automation machine builders to make their networks compatible with the vision of Industry 4.0. By breathing life into machines and control cabinets, the smart switch simplifies daily tasks with its easy configuration and easy installation. In addition, it is monitorable and is easy to maintain throughout the entire product life cycle.

The most frequently used automation protocols—including EtherNet/IP, PROFINET, and Modbus TCP—are embedded in the SDS-3010 switch to provide enhanced operational performance and flexibility by making it controllable and visible from automation HMIs. It also supports a range of useful management functions, including IEEE 802.1Q VLAN, port mirroring, SNMP, warning by relay, and a multi-language Web GUI.



You can also find the SDS-3010-2GTXSFP-T, SDS-3010-8PoE-2GTXSFP, and SDS-3010-8PoE-2GTXSFP-T models in the DIN-Rail Ethernet Switches.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA SDS-3010-2GTXSFP Smart Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports : 8 Ports (Auto negotiation speed, Full/Half duplex mode, Auto MDI/MDI-X connection)
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
Features and capabilities
Backup : ABC-02
LED Indicators
LED Per Port
Power Requirements
Input Current 0.98 A max. 12-48 VDC
Power Input Plugin ( Redundant )
Input Voltage 12-48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption 7.20 W
General
Fan / Fanless Fanless
MTBF 3,086,399 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Smart Managed Switch
Port Aggregation
Physical Characteristics
Dimensions 36 x 135 x 111 mm (1.42 x 5.32 x 4.37 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 800 MHz: 10 V/m; 800 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (1.2/50 μs), 1 kV (10/700 μs), IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: EN IEC 62368-1, UL 61010-2-201; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; IP40; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 767g (1.69 lbs)
Standards and protocols
Protocols and work standards EtherNet/IP, Modbus TCP, PROFINET IO Device, RSTP, STP, MRP
Protocols and management standards Back Pressure Flow Control, DHCP Client, Fiber check, Flow control, IPv4/IPv6, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, 802.1Q VLAN
Package Checklist
Hardware installation guide
Power adapter
Power cable
