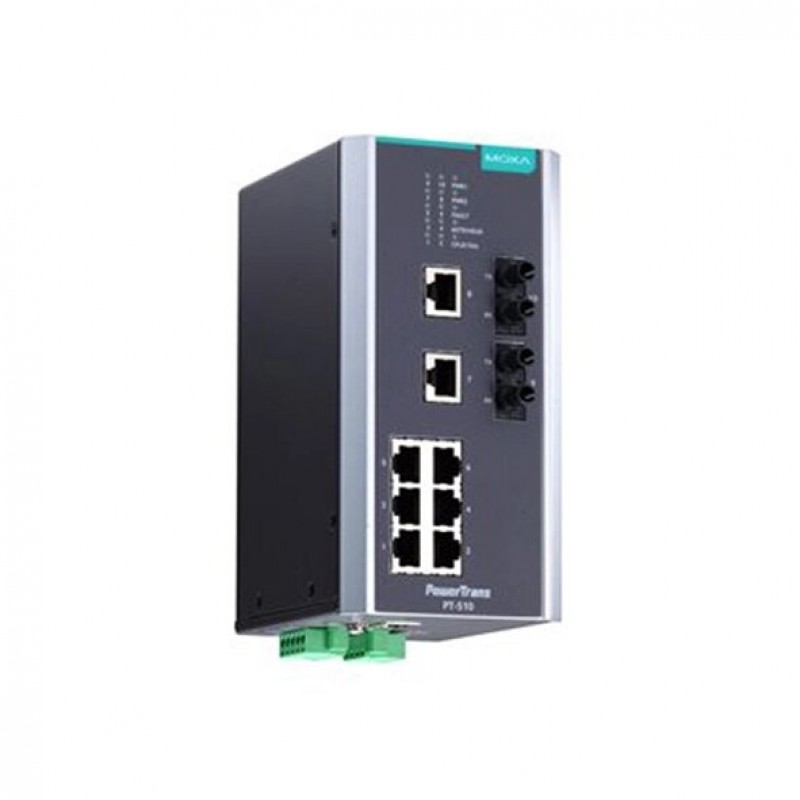

MOXA PT-510-MM-ST-HV Managed Ethernet Switches
- 8 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x 100BaseFX Ports (multi-mode ST connector)
- 5 KM Typical data transmission distance on fiber
- DIN-rail mounting
- 110/220 VDC/VAC input power range
- IP40-rated Aluminum body design
- -40 to 85°C operating temperature range
.png)
Description
The PowerTrans PT-510 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-510 makes network planning easy and allows greater flexibility by letting you install up to 10 Fast Ethernet ports for power distribution applications.
You can also find the PT-510-SS-LC-48, PT-510-SS-LC-24, and PT-510-MM-ST-48 models in the IEC 61850-3 Ethernet Switches.
Inquire about the MOXA PT-510-MM-ST-HV Managed Ethernet Switches, designed
for industrial automation solutions. Feel free to get in touch with our sales
team to give you the best solutions at the best global price in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 2 ST Ports |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Consoles Port (RJ45 connector), 1 x Alarm Contact Channel |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.234/0.148 A @ 110/220 VAC, 0.10/0.052 A @ 110/220 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110/220 VAC/VDC (88 to 300 VAC, 85 to 264 VDC) |
| Operating Voltage | - |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 372,276 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in) |
| Housing | Aluminum |
| Installation | DIN-rail mounting (with optional kit) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Safety: UL 508; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1210 g (2.69 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
