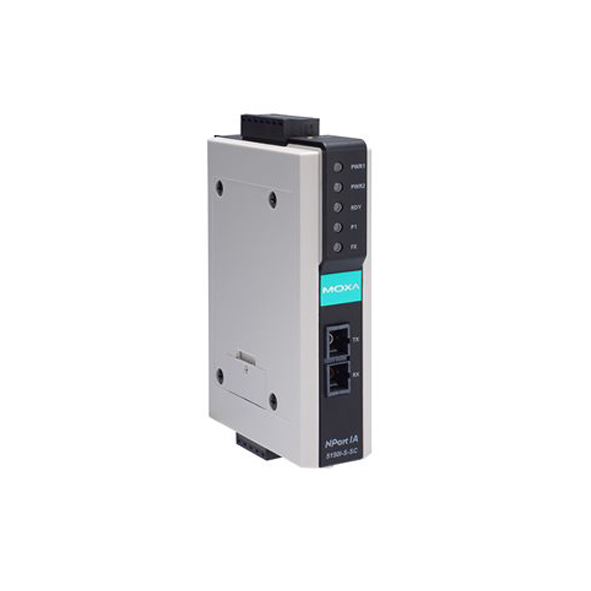

MOXA NPort IA-5150-S-SC Serial to Ethernet Device Server
- 2 x 10/100Mbps T(x) ports and 1 x RS-232/422/485 Serial ports
- Ethernet Port: Single-Mode SC
- 12 to 48 VDC dual power inputs
- Plastic body
- 0 to 55°C operating temperature
- Relay output warning and Email alerts
.png)
Description
NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.
Cascading Ethernet Ports Make Wiring Easy (10/100BaseTX models)
The NPort® IA5150 and IA5250 device servers each have two
Ethernet ports that can be used as Ethernet switch ports. One port connects
directly to the network or server, and the other port can be connected to
either another NPort® IA device server or an Ethernet device. The dual Ethernet
ports help reduce wiring costs by eliminating the need to connect each device
to a separate Ethernet switch.
You can also find the NPort IA-5150-M-ST-T and NPort IA-5150-IEX models in the Serial-To-Ethernet Converters.
You can explore our wide range of products and enquire about
the MOXA NPort IA-5150-S-SC Serial to Ethernet Device Server for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the
Middle East.
Specification
| Interface | |
|---|---|
| 10Mbps RJ-45 Ports | |
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports |
| RS-232 Ports | |
| RS-422/485 Ports | |
| RS-232/422/485 Ports | : 1 Port |
| Serial port specifications | |
| Serial connection type | DB9-M for RS-232 and Terminal Block for RS-422/485 |
| Serial Communication Parameters | Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, and DTR/DSR (only RS-232) |
| Data transfer speed ( Baudrate ) | 0.1Kbps to 230.4Kbps |
| Protection against electrostatic discharge | |
| Electrical isolation | |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | Web Console, Serial Console, Telnet Console, Windows Utility |
| MTBF | 183,747 hour |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x, 3.x |
| Power Requirements | |
| Power Consumption (Output Adapter) | 12V DC, 0.238A to 48V DC |
| Security | |
| Security | |
| Encryption | |
| Features and capabilities | |
| Display | |
| Keyboard | |
| The automatic restart (reset) | : WDT |
| Alarm feature | : Relay Output Warning and E-mail Alerts (Built-in buzzer and RTC) |
| Standards and protocols | |
| Network protocol | ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP |
| Physical Characteristics | |
| Safety | UL 508, UL 60950-1 |
| EMC | EN 55032/35 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2, ESD: Contact: 6 kV; Air: 8 kV ,IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV ,IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF |
| Marine | DNV |
| Medical | |
| LAN port Protection against magnetic fields | 1.5KV |
| Housing | Plastic |
| Altitude | - |
| Operation Humidity | 5% to %95 RH non-condensing |
