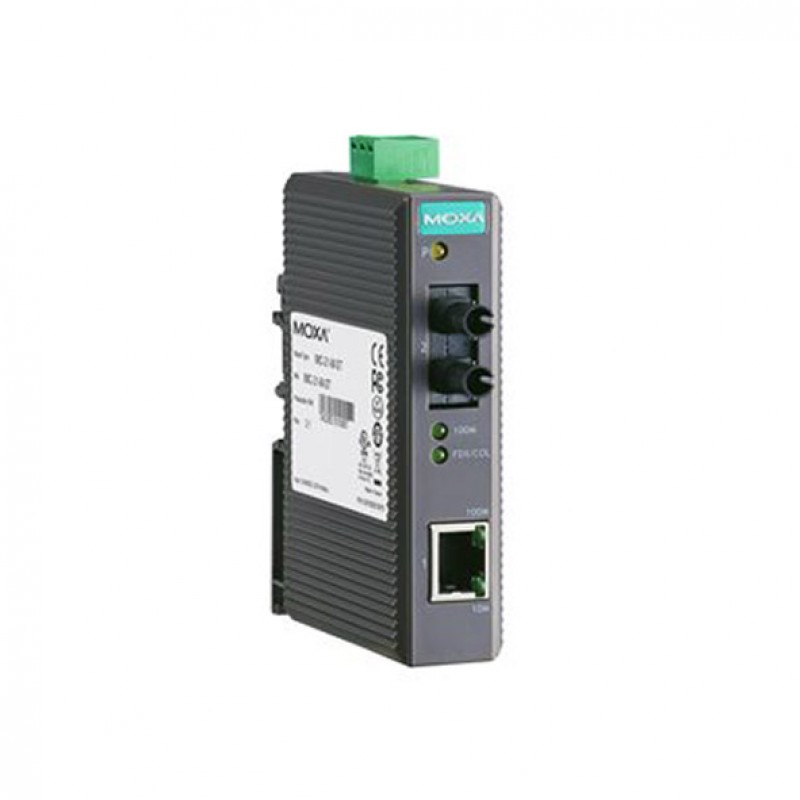

MOXA IMC-21-M-ST Ethernet to Fiber Converter
- 1 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x 100BaseFX Ports (multi-mode ST connector)
- 5 KM Typical data transmission distance on fiber
- IP30-rated Plastic body design
- 12 to 48 VDC input power range
- DIN-rail mounting
- -10 to 60°C operating temperature
- Brand: MOXA
- Product Code: IMC-21-M-ST
.png)
Description
The IMC-21 industrial media converters are entry-level 10/100BaseT(X)-to-100BaseFX media converters designed to provide reliable and stable operation in harsh industrial environments. The converters are a cost-effective solution that runs on either a 12 or 48 VDC power input and can operate reliably in temperatures ranging from -10 to 60°C. The rugged hardware design ensures your Ethernet equipment can withstand demanding industrial conditions. The IMC-21 converters are easy to mount on a DIN rail or in distribution boxes.
You can also find the IMC-21-S-SC and IMC-21-M-SC models in the Industrial Media Converters.
Inquire about the MOXA IMC-21-M-ST Ethernet to Fiber Converter, designed
for industrial automation solutions. Feel free to get in touch with our sales team to give you
the best solutions at the best global price in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 ST Port |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards and protocols | |
| Protocols and work standards | - |
| General | |
| Maximum cable length for data transfer | 5Km with multi mode fiber optic cable |
| MTBF | 353,000 hour |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 12 to 48 VDC, 0.271A (Max.) |
| Overload Current Protection | Supported |
| Type of power input | Terminal block |
| Power Consumption | - |
| Physical Characteristics | |
| Standards and Certifications | Safety: UL 508, EMC: EN 55022/24, EMI: CISPR 22, FCC Part 15B Class A, EN 61000-4-2 (ESD): Contact: 6 kV; Air: 8 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 1 V/m, EN 61000-4-4 (EFT): Power: 1 kV; Signal: 1 kV, EN 61000-4-5 (Surge): Power: 1 kV; Signal: 1 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF), EN 61000-4-11, RoHS, CRoHS, WEEE, Shock: IEC 60068-2-27, Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6; MIL-HDBK-217F; IP30 |
| Housing | Plastic |
| Dimensions | 25 x 109 x 97 mm (0.98 x 4.29 x 3.82 in) |
| Weight | 125 g (0.27 lb) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
