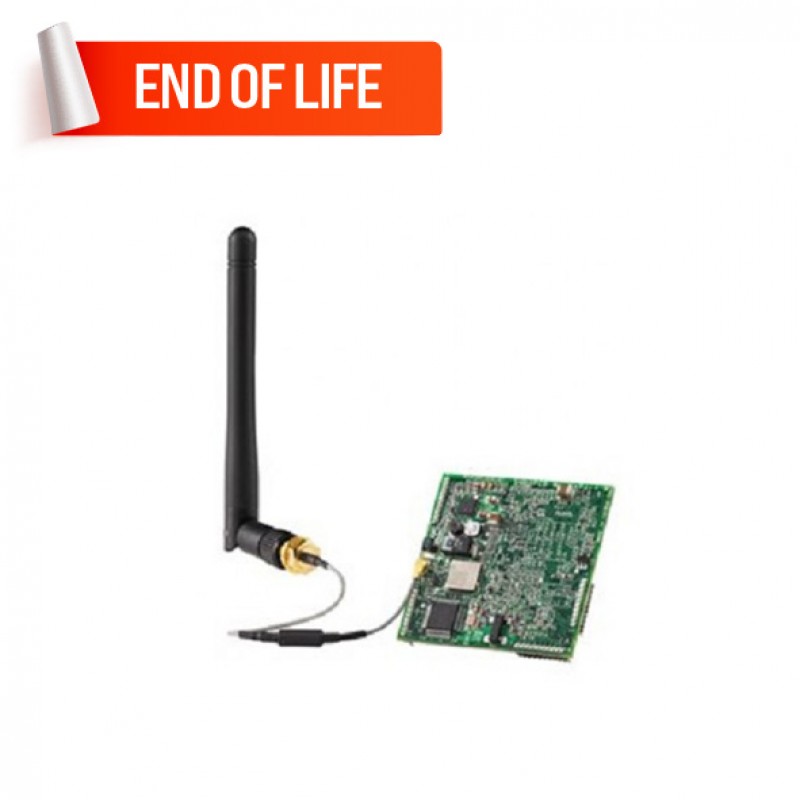

MOXA MiiNePort W1 Embedded Serial Module
- 8 x Configurable DIO Channels
- 1 x TTL Serial port, up to 921.6 kbps baud rate
- 1 x 10/100Mbps Port (Auto MDI/MDI-X connection)
- IEEE 802.11 b/g compatible
- 3.3 to 5 VDC input power range
- 0 to 55°C operating temperature
Description
The MiiNePort W1 Series provides a serial to IEEE 802.11 b/g embedded wireless solution that includes compact sizes and ultra-low power consumption as features. Numerous operation modes are designed to fulfill the requirements of the embedded module applications. Complete driver support reduces software redesign effort and accelerates time to market.
End of Life Product - No Replacement
Please note that the MiiNePort W1 Series has been phased out. You can explore the MiiNePort E1 Series in the Serial-to-Ethernet Converters.
Easy World Automation offers the easiest way to buy the MOXA
MiiNePort W1 Embedded Serial Module in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our
sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Embedded System | |
|---|---|
| CPU | 32-bit Arm Core |
| Flash | 16 MB |
| SDRAM | 64 MB |
| Input/Output Interface | |
| Configurable DIO Channels | 8 Channels |
| Digital Input Channels | |
| Digital Output Channels | |
| Ethernet Interface | |
| Ethernet Ports | 1 x 10/100BaseT(X) Auto MDI/MDI-X connection Port |
| Magnetic Isolation Protection | - |
| Power Parameters | |
| Input Current | 400 mA @ 3.3 VDC |
| Input Voltage | 3.3 to 5 VDC |
| Seriel Interface | |
| Number of Ports | 1 x TTL Port |
| Serial Standards | TTL |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | None, Even, Odd |
| Flow Control | None, RTS/CTS, XON/XOFF |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| General | |
| Management | ARP, Device Search Utility (DSU), DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/ v3, TCP/IP, Telnet, UDP, Web Console, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| MTBF | 441,378 hrs |
| Physical Characteristics | |
| Dimensions | 44.4 x 44.4 x 9.7 mm (1.75 x 1.75 x 0.38 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 8 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Radio Frequency: EN 300 328, EN 301 489; Safety: EN 60950-1, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 15.35 g (0.03 lb) |
