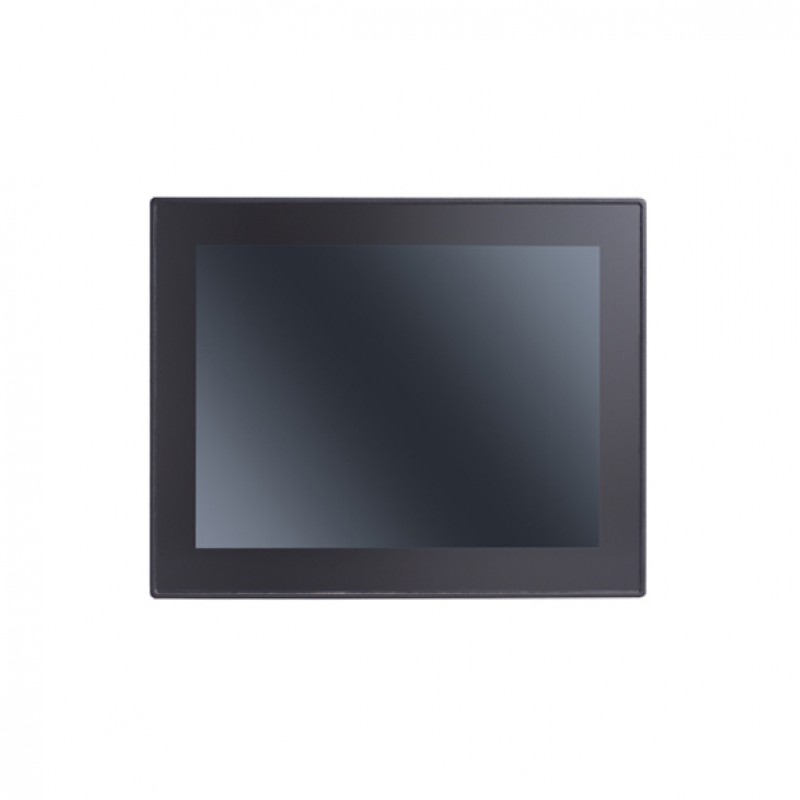

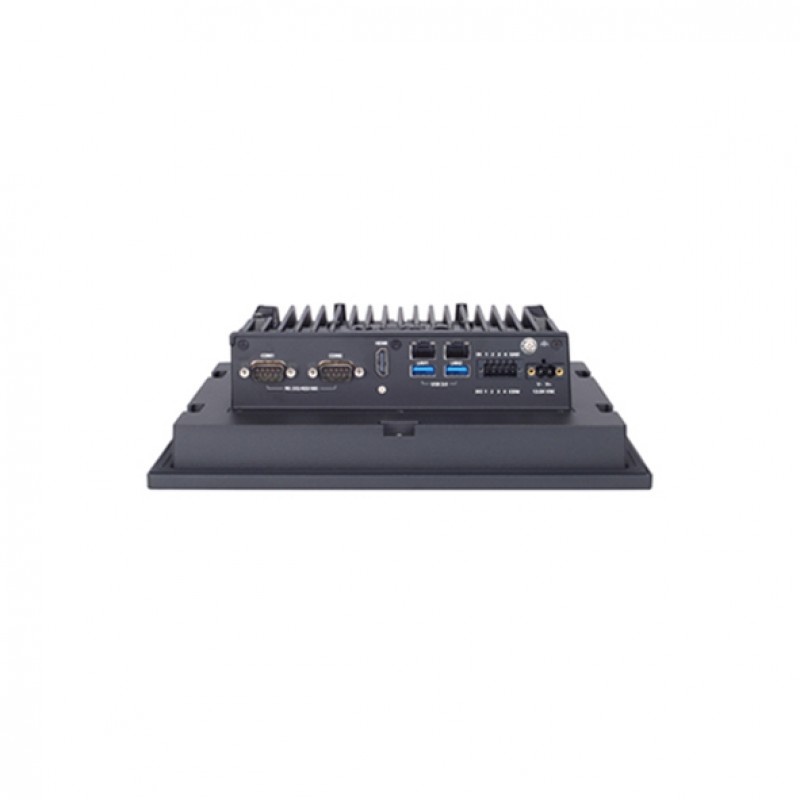

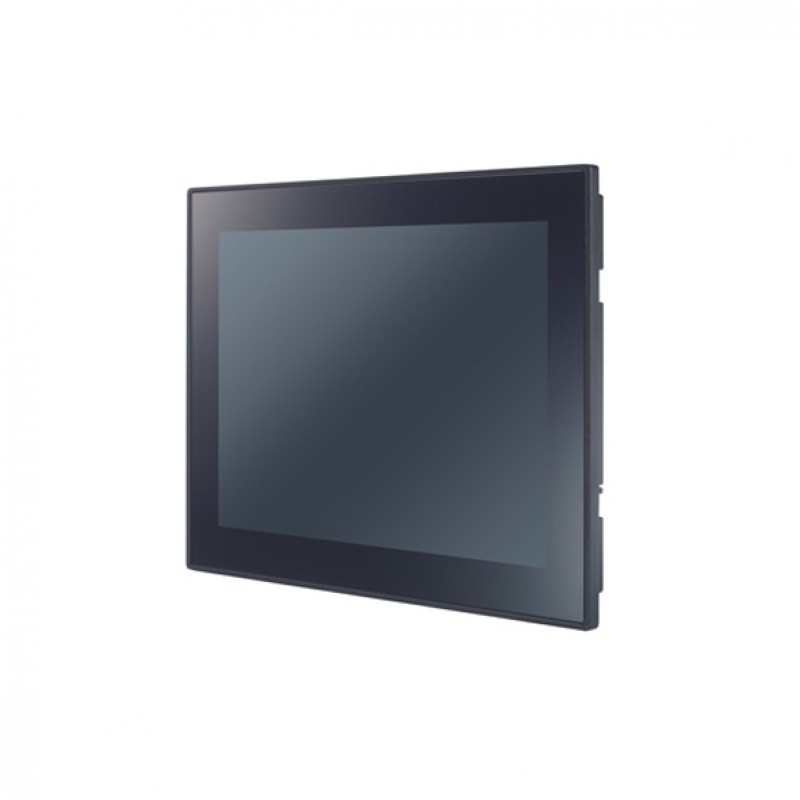

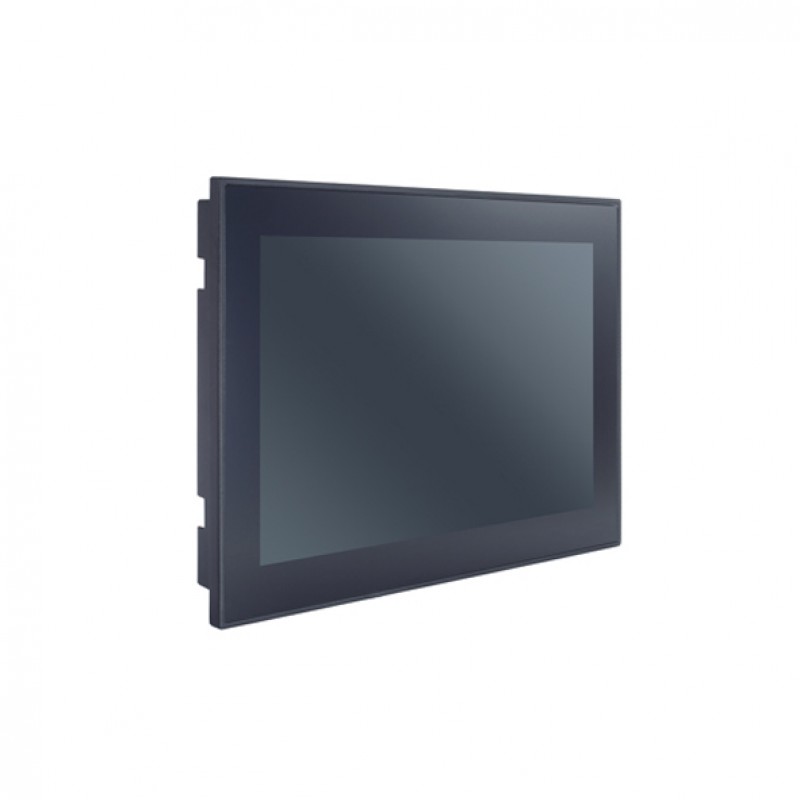

MOXA MPC-3100-E4-LB-T Panel Computer
- 10.4-inch panel computer (400 nits)
- CPU Intel Atom® Elkhart Lake quad-core x6425E
- 2 x 10/100/1000 Mbps ports (RJ45 connector)
- 2 x RS-232/422/485 Serial Ports (DB9 male connector)
- Metal body design (IP66 for front, IP20 for rear)
- 12/24 VDC input power range
- -30 to 60°C operating temperature
.png)
Description
The MPC-3100 10.4-inch panel computers with Intel Atom® x6211E dual-core or x6425E quad-core processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-3100 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-3100 panel computers are designed for the -30 to 60°C temperature range and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation. This makes the computers reliable industrial platforms for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-3100 also features a 400–nit or 1000–nit LCD panel, offering a sunlight-readable, projected-capacitive, glove-friendly, multi-touch screen for an excellent user experience in outdoor applications.
You can also find the MPC-3100-E2-T, MPC-3100-E2-LB-T, and MPC-3100-E4-T models in the Displays and Panel Computers.
Easy World Automation offers the easiest way to buy the MOXA MPC-3100-E4-LB-T Panel Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel Atom® Elkhart Lake quad-core x6425E 2.0 GHz |
| Supported OS | Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit), Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.1x), RHEL 9 (kernel 5.14) |
| OS (pre-installed) | - |
| System Memory | 8 GB DDR4 2400 MHz (32 GB max) |
| Graphics Controller | Intel® HD Graphics |
| Storage Slot | CFast slot x 1, SD slots x 1, SD 3.0 interface (SDHC/SDXC) |
| Interface | |
| LAN | 2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Digital Input/Output Channels | 4 x Digital inputs, 4 x Digital outputs |
| Serial Ports | 2 x RS-232/422/485 port (software-selectable, DB9 male connector) |
| USB | 2 x USB 3.0 hosts, type-A connectors |
| Expansion Slot | - |
| Display | |
| Panel Size | 10.4 in (viewable image) |
| Aspect Ratio | 4:3 |
| Response Time | 25 ms |
| Contrast Ratio | 1000:1 (typ.) |
| Viewing Angles | 176°/176° |
| Touch | Projective Capacitive touchscreen (PCAP) with Glove Support |
| Pixels | 1024 x 768 |
| Pixel Pitch (RGB) | 0.2055 (H) x 0.2055 (V) mm |
| Light Intensity | 400 nits |
| Active Display Area | 210.4 (H) x 157.8 (V) mm |
| Max. No. of Colors | 262k, 16.7M (8-bit/color) |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only) |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 12/24 VDC |
| Power Consumption | 42 W, (max, including full USB loading) |
| Physical Characteristics | |
| Dimensions | 260 x 210 x 73.8 mm (10.28 x 8.27 x 2.91 in) |
| Housing | Metal |
| Operating temperature | -30 to 60°C (-22 to 140°F) |
| Storage Temperature | -40 to 70°C (-40 to 158°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-1, IEC 60945, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, DNV-CG-0339; Hazardous Locations: ATEX Zone 2, Class I Division 2, IECEx Zone 2; Maritime: DNV-CG-0339, IEC 60945, IACS E10; Safety: IEC 62368-1, UL 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, DNV-CG-0339, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP66; IP20 |
| Weight | 2,300 g (5.07 lb) |
| Mounting | Panel mounting |
