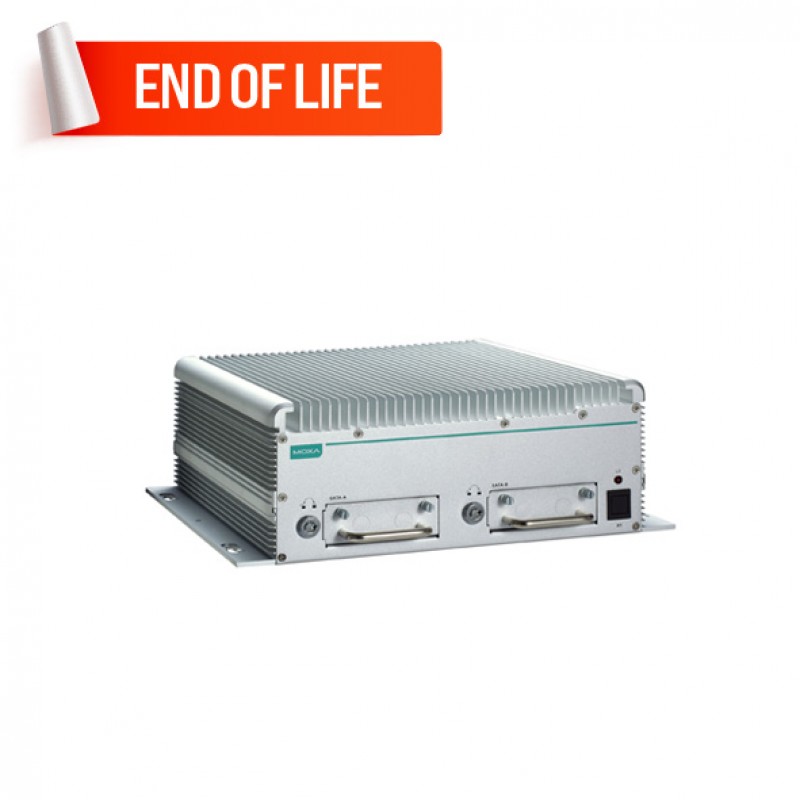

MOXA V2616A-C5 Wide Temperature Computer
- Compliant with EN 50121-4
- Complies with all EN 50155 mandatory test items*
- IEC 61373 certified for shock and vibration resistance
- Two hot-swappable storage trays for 2.5-inch SSDs or HDDs
- SynMap for system health monitoring
- 24 to 110 VDC wide range isolated power input
- Easy coin battery replacement
- Smart Recovery for manual or automatic system recovery
- Brand: MOXA
- Product Code: V2616A-C5
Description
The V2616A Series of embedded computers are based on the Intel Core i5/i7 processor, and feature 2 RS-232/422/485 serial ports, dual Gigabit LAN ports, 3 USB 2.0 ports, and dual VGA/DVI-D video outputs. The V2616A computers are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications.
The V2616A computers come with a CFast socket that provides ample and secure data buffering or additional storage expansion, as well as 2 hot-swappable storage trays that accept 2.5-inch solid state or hard disk storage drives and may be arranged in RAID 1 arrays to give full data redundancy.
The V2616A Series comes with preinstalled Windows Embedded Standard 7 or Debian 7 environments, allowing programmers and system integrators to choose their preferred computing and development platform.
You can also find the V2416A-C2 and V2426A-C2 models in the Wide Temperature Computers.
Easy World Automation offers the
easiest way to buy the MOXA V2616A-C5 Wide Temperature Computer in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| LAN | Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2 |
| ESD Protection | 4 kV for all signals |
| Computer | |
| CPU | Intel® Core™ i5-3610ME dual-core processor (3M Cache, 2.7 GHz) |
| System Chipset | Mobile Intel HM65 Express Chipset |
| OS (Optional) | Linux or Windows Embedded Standard 7 |
| System Memory | 16 GB capacity, 4 GB pre-installed: 2 slots of 8 GB DDR3-1600 SO-DIMM SDRAM |
| USB | USB 2.0 hosts x 3 (Type A connectors x 2, supporting system boot up, M12 connectors x 1) |
| Display | |
| Graphics Controller | Intel® HD Graphics 4000 (integrated) |
| DVI Interface | DVI-D connector (Chrontel CH7307 SDVO to DVI transmitter), max. resolution 1920 x 1200 |
| VGA Interface | DB15 female connector, max. resolution 2048 x 1536 |
| Serial Interface | |
| Serial Standards | 2 software-selectable RS-232/422/485 ports (DB9 male) |
| Digital Input | |
| Input Channels | 6 |
| Input Voltage | 0 to 30 VDC at 25 Hz |
| Digital Input Levels for Dry Contacts | Logic level 0: Close to GND, Logic level 1: Open |
| Digital Input Levels for Wet Contacts | Logic level 0: +3 V max., Logic level 1: +10 V to +30 V (Source to DI) |
| Digital Output | |
| Output Channels | 2, sink type |
| Output Current | Max. 200 mA per channel |
| On-State Voltage | 24 VDC nominal, open collector to 30 VDC |
| Connector Type | 10-pin screw terminal block (6 DI points, 2 DO points, DI Source, GND) |
| Isolation | 3 kV optical isolation |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Baudrate | 50 bps to 921.6 Kbps (non-standard baudrates supported |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxDA(-), TxDB(+), RxDB(+), RxDA(-), GND |
| RS-485-4w | TxDA(-), TxDB(+), RxDB(+), RxDA(-), GND |
| RS-485-2w | DataA(-), DataB(+), GND |
| LED Indicators | |
| System | 1 Power, 1 Storage |
| LAN | 2 100M/Link, 2 1000M/Link |
| Serial | 2 TX, 2 RX |
| Power Requirements | |
| Input Voltage | 24 to 110 VDC, M12 connector |
| Input Current | 2.5 A @ 24 VDC to 0.55 A @ 110 VDC (SSD/HDD not attached) |
| Power Consumption | 60 W (no SSD/HDD attached) |
| General | |
| Automatic Reboot Trigger | Built-in WDT (watchdog timer) supporting 1-255 second system reset, software programmable |
| MTBF | 280,726 hrs |
| HDD Support | 1 internal SATA-II storage connector for 2.5-inch SSD or HDD |
| Storage Expansion | 2 hot-swappable storage trays for 2.5-inch SATA SSD or HDD |
| Expansion Slot | 1 full-size/half-size mini PCIe socket with 1 SIM card socket. Mini PCIe socket supports power on/off control |
| Physical Characteristics | |
| Dimensions | 287 x 290 x 101 mm (11.29 x 11.41 x 3.97 in) |
| Housing | Aluminum |
| Operating temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | (with SSD installed) -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| EMC | EN 55032/24 |
| Weight | 5 kg (11.11 lb) |
| Anti-Vibration | EN 50155 standard |
| Safety | UL 60950-1, CSA C22.2 No. 60950-1-07, EN 60950-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Anti-Shock | EN 50155 standard |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Mounting | Wall (mounting kit must be purchased separately) |
| Isolation Protection | 3 kV |
