Description

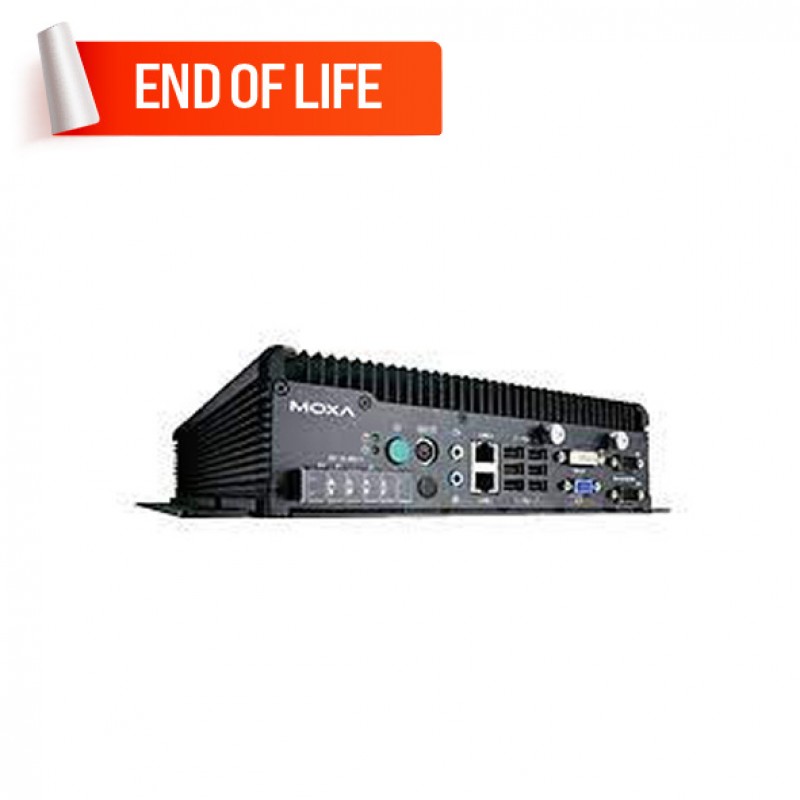

The MC-4510-C23 computer is based on the Intel Core 2 Duo
mobile processor and comes with 2 RS-232/422/485 serial ports with optical
isolation, 2 Gigabit Ethernet ports, 6 USB 2.0 hosts, and a CompactFlash
socket. It offers high-performance and versatile peripherals for marine, railway,
power, and other industrial applications. The MC-4510-C23’s rugged, fanless design, 1-g anti-vibration, and 15-g anti-shock features make it particularly
well-suited for bridge systems in marine applications.
In addition, the compact size and low power consumption features ensure an easy installation and reliable system operation, and the modular design allows easy integration with the panel. Users can easily install Windows 7, Windows XP SP3, or Windows XP Embedded to provide a flexible and friendly environment for system development and application implementation.
End of Life Product - Replacement Available
Please note that the MC-4510-C23 Series has been phased out and replaced by the MC-7400 Series.
Easy World Automation offers the
easiest way to buy the MOXA MC-4510-C23 Industrial Computer in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Computer | |
|---|---|
| CPU | Intel Core 2 Duo SP9300 2.26 GHz, 6 MB for L2 cache |
| Supported OS | Windows 7, Windows XP SP3, Windows XP Embedded (must be installed by the user) |
| OS (pre-installed) | - |
| System Memory | 2 GB DDR3 SDRAM onboard (supports DDR3 up to 4 GB) |
| Graphics Controller | GMA 4500MHD (Intel GS45 built-in) |
| Storage Slot | CompactFlash socket |
| Interface | |
| LAN | 2 x auto-sensing 10/100/1000 Mbps ports (RJ45) |
| Magnetic Isolation Protection | 1.5 KV built-in |
| Digital Input/Output Channels | |
| Serial Ports | 2 x RS-232/422/485 ports, software-selectable (DB9 male) |
| USB | USB 2.0 host x 6 |
| Expansion Slot | Mini-PCIe onboard |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 921.6 Kbps (supports non-standard baudrates; see user’s manual for details) |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485 |
| Serial Signals | |
| RS-232 | TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND |
| RS-422 | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Storage, Power |
| LAN | 10M/Link x 2, 100M/Link x 2 (on connector) |
| Serial | - |
| Power Requirements | |
| Input Voltage | 18 to 36 VDC (3-pin terminal block) |
| Input Current | - |
| Power Consumption | 48.6 W, 1.35 A @ 36 VDC, 1.96 A @ 24 VDC, 2.61 A @ 18 VDC |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 175,865 hrs |
| Physical Characteristics | |
| Dimensions | 302 x 70 x 279 mm (11.98 x 2.76 x 10.98 in) |
| Housing | Aluminum, sheet metal |
| Operating temperature | -10 to 55°C (14 to 131°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 60950-1, IEC 60945 4th. IACS-E10, CCC (GB4943, GB9254, GB17625.1); EMC: EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class B; Marine: IEC 60945 4th. IACS-E10; Green Product: RoHS, cRoHS, WEEE |
| Weight | 3.75 kg |
| Mounting | Wall mounting |
