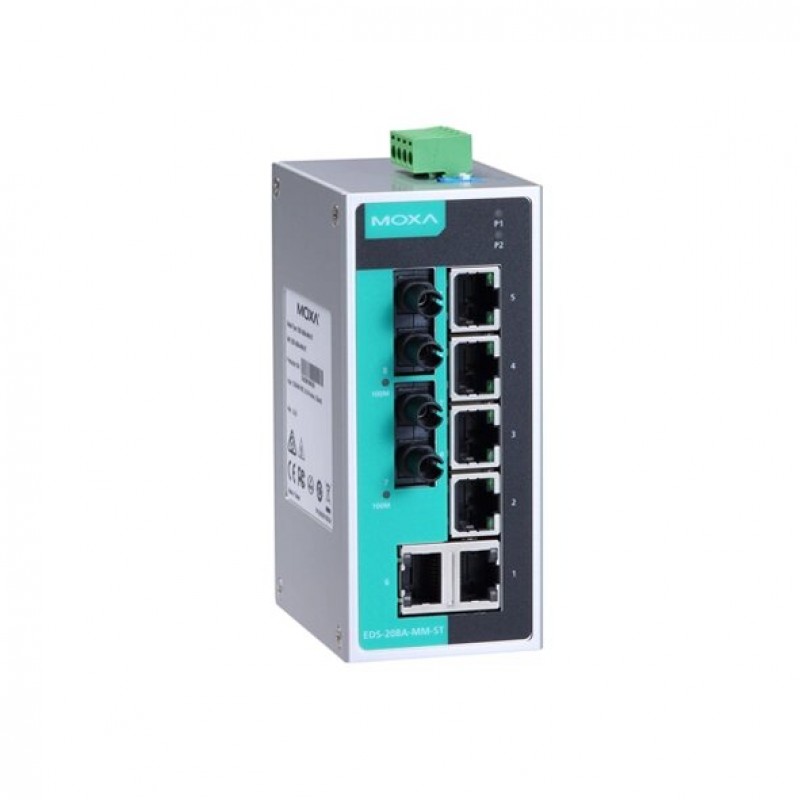

MOXA EDS-208A-MM-ST Unmanaged Ethernet Switches
- 6 x 10/100Mbps T(x) ports
- 2 x 100BaseFX port (Multi-mode ST)
- IEEE802.3/802.3u/802.3x support
- 5 KM Data transmission typical distance on fiber
- DIN-rail and Wall mounting
- IP30-rated aluminum housing
- 12 to 48 VDC Redundant dual power inputs
- -10 to 60°C operating temperature
- Brand: MOXA
- Product Code: EDS-208A-MM-ST
.png)
Description
The EDS-208A Series 8-port industrial Ethernet switches support
IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X
autosensing. The EDS-208A Series has 12/24/48 VDC (9.6 to 60 VDC) redundant
power inputs that can be connected simultaneously to live DC power sources.
These switches have been designed for harsh industrial environments, such as in
maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN
50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2)
that comply with FCC, UL, and CE standards.
The EDS-208A switches are available with a standard operating temperature range from -10 to 60°C or with a wide operating temperature range from -40 to 75°C. All models are subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
You can also find the EDS-208A-M-SC, EDS-208A, EDS-208A-S-SC, and EDS-208A-T models in the DIN-Rail Ethernet Switches.
Experience the convenient way to purchase the MOXA EDS-208A-MM-ST Unmanaged Ethernet Switches in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 6 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 2 Ports (ST connectors) |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.15 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 2,705,157 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in) |
| Housing | Aluminium |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 508, EN 62368-1 (LVD); EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Maritime: ABS, LR, NK, DNV; IP30;Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 275 g (0.61 lb) |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
