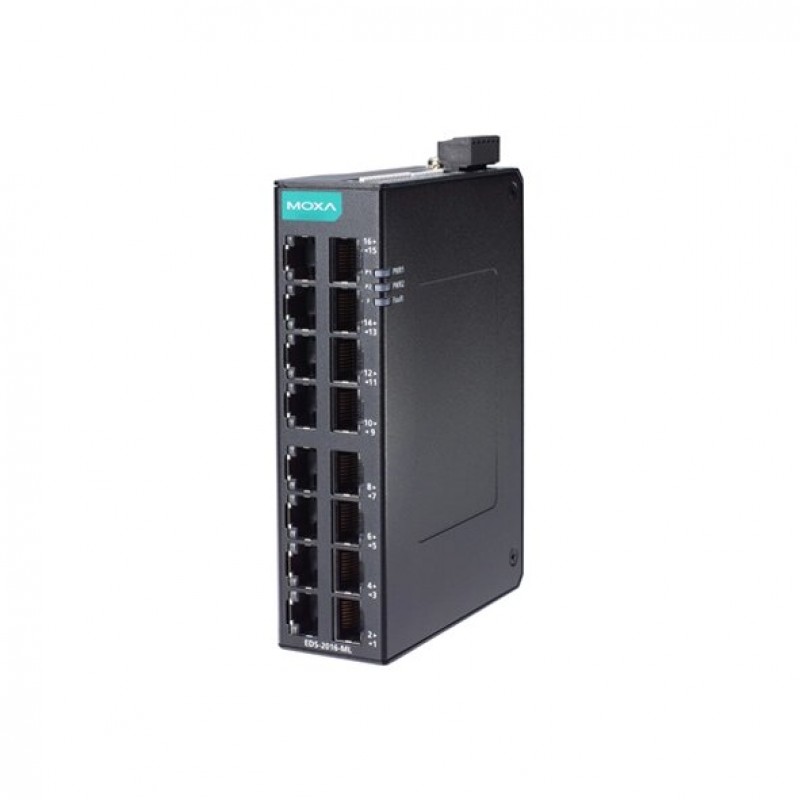

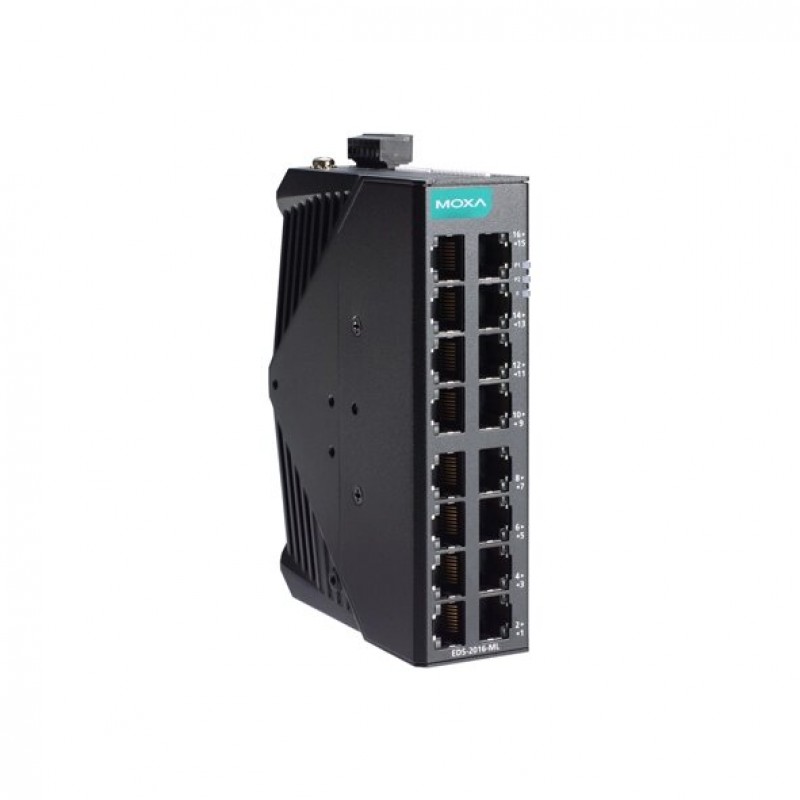

MOXA EDS-2016-ML-T Unmanaged Ethernet Switch

16 x 10/100BaseT(X) Ports (RJ45 connector)
DIN-rail and Wall mounting
IP30-rated metal housing
dual 12/24/48 VDC Redundant dual power inputs
-40 to 75°C operating temperature

Brand: MOXA
Product Code: EDS-2016-ML-T

Datasheet

Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Railway Transportation Products , Road Transportation Products , Marine Products , Oil & Gas Products , Switches , MOXA EDS-2016-ML Series

Description

The EDS-2016-ML Series of industrial Ethernet switches have up to 16 10/100M copper ports and two optical fiber ports with SC/ST connector type options, which are ideal for applications that require flexible industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2016-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and the port break alarm function with DIP switches on the outer panel.

In addition to its compact size, the EDS-2016-ML Series features 12/24/48 VDC redundant power inputs, DIN-rail mounting, high-level EMI/EMC capability, and an operating temperature range of -10 to 60°C with -40 to 75°C wide temperature models available. The EDS-2016-ML Series has also passed a 100% burn-in test to ensure it will function reliably in the field.

You can also find the EDS-2016-ML-T, EDS-2016-ML-MM-SC, and EDS-2016-ML-MM-ST models in the DIN-Rail Ethernet Switches.

Easy World Automation offers the easiest way to buy the MOXA EDS-2016-ML-T Unmanaged Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Number of ports	16 Ports
10/100Mb RJ45 (Megabit) Ports	: 16 Ports
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports	: 1 x Alarm Contact Channel
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Input Current	0.088 A @ 24 VDC
Power Input Plugin ( Redundant )
Input Voltage	12/24/48 VDC
Operating Voltage	9.6 to 60 VDC
Power Consumption	-
General
Fan / Fanless	Fanless
MTBF	2,523,953 hrs
Switch specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	Unmanaged
Port Aggregation
Physical Characteristics
Dimensions	36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: UL 61010-2-201, EN 62368-1(LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: Class I Division 2, ATEX, IECEx; Maritime: DNV, LR, ABS, NK; Railway: EN 50121-4; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	486 g (1.07 lb)
Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
Package Checklist
Hardware installation guide
Power adapter
Power cable
