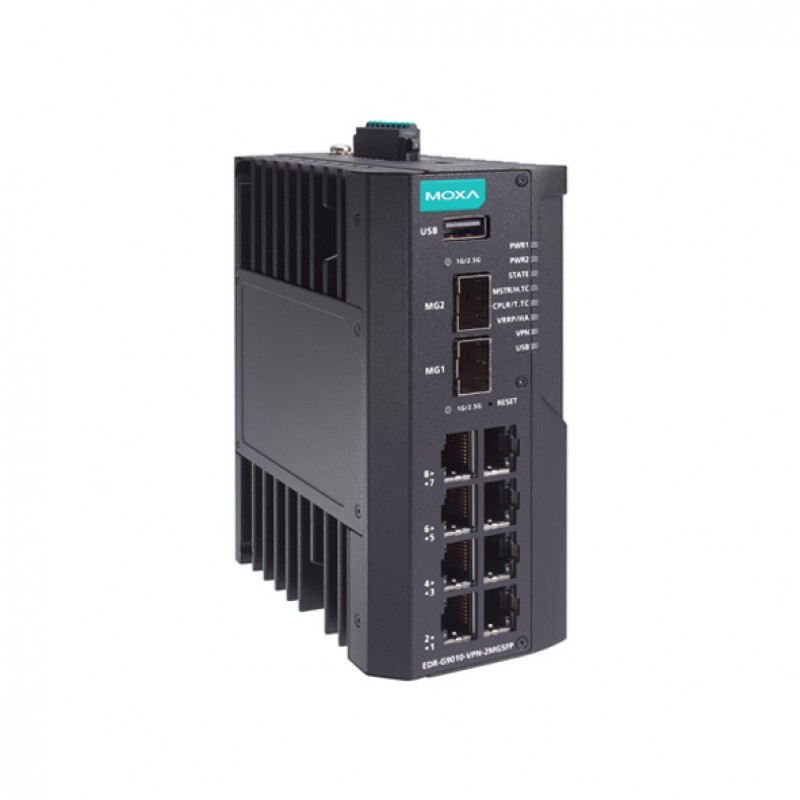

MOXA EDR-G9010-VPN-2MGSFP-T Industrial Secure Router

8 x 10/100/1000BaseT(X) Ports (RJ45 connector)
2 x 1000/2500BaseSFP Ports
Metal body design
DIN-Rail and Wall mounting
12 to 48 VDC Redundant dual power inputs
DNV-certified for -25 to 70°C operating temperature

Brand: MOXA
Product Code: EDR-G9010-VPN-2MGSFP-T

Datasheet

Tags: Industrial Network Infrastructure , Industrial Data Communications , Industrial Routers And Firewalls , Industrial Secure Routers , Secure Routers , Routers , Industrial Routers , Network Security Appliance , Cybersecurity , Factory Automation Products , Marine Products , Power Utility Products , Railway Transportation Products , Road Transportation Products , Oil & Gas Products , MOXA EDR-G9010 Series

Description

The EDR-G9010 Series is a set of highly integrated industrial multi-port secure routers with firewall/NAT/VPN and managed Layer 2 switch functions. These devices are designed for Ethernet-based security applications in critical remote control or monitoring networks. These secure routers provide an electronic security perimeter to protect critical cyber assets including substations in power applications, pump-and-treat systems in water stations, distributed control systems in oil and gas applications, and PLC/SCADA systems in factory automation. Furthermore, with the addition of IDS/IPS, the EDR-G9010 Series is an industrial next-generation firewall, equipped with threat detection and prevention capabilities to further protect critical infrastructure from cybersecurity attacks.

Defend Against Malicious Threats With Advanced Cybersecurity Features

The EDR-G9010 Series’ embedded firewall uses policy rules to control network traffic between trusted zones while Network Address Translation (NAT) shields the internal network from unauthorized access by outside hosts. The Virtual Private Networking (VPN) functionality further provides users with secure communication tunnels when accessing the private network from the public Internet. To help protect your OT assets from cyberattacks, the EDR-G9010 Series supports Deep Packet Inspection (DPI) to examine the data portion of network packets for various OT-specific protocols.

Simplify Configurations With the User-friendly Interface and Quick Settings

The EDR-G9010 Series’ Setup Wizard provides an easy way for users to set up WAN, LAN, and Bridge ports for routing functionality in just four steps. In addition, the object-based firewall management feature gives engineers a simple way to configure and maintain firewall filtering for IP addresses and subnets, network services, industrial application services, and user-defined services.

You can also find the EDR-G9010-VPN-2MGSFP and EDR-G9010-VPN-2MGSFP-HV-T models in the Industrial Secure Routers.

You can Buy the MOXA EDR-G9010-VPN-2MGSFP-T Industrial Secure Router via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

INTERFACE
Ethernet Ports	8 x 10/100/1000BaseT(X) Ports (RJ45 connector) and 2 x 1000/2500BaseSFP Ports
Serial Ports	1 x Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1 with USB Type-C connector
Input/Output Channels	1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
Alarm Contact Channels	Resistive load: 1 A @ 24 VDC
SOFTWARE SPECIFICATIONS
Management	Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP, HTTPS, SSH
Routing Redundancy	VRRP
Security	Secure Boot, IPsec, L2TP (server), RADIUS, Trust access control, TACACS+
Time Management	NTP Server/Client, SNTP
Encryption	DES, 3DES, AES-128, AES-192, AES-256
Authentication	MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate
LED INTERFACE
LED Indicators	PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB
GENERAL
Supported Protocols	IPsec, L2TP (server), PPTP (client); Redundancy: RSTP, STP, Turbo Ring v2, Turbo Chain; DPI: DNP3, EtherNet/IP, IEC 60870-5-104, IEC 61850 MMS, Modbus TCP, Modbus UDP
MTBF	1,080,807 hrs
POWER REQUIREMENTS
Input Voltage	12/24/48 VDC, Redundant dual inputs (DNV-certified for 24 VDC)
Input Current	1.51 A @ 12 VDC, 0.70 A @ 24 VDC, 0.35 A @ 48 VDC
Operating Voltage	9.6 to 60 VDC
Overload Current Protection	-
Reverse Polarity Protection	Supported
Power Connector	Removable terminal block
PHYSICAL CHARACTERISTICS
Housing	Metal
Dimensions	58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in)
Weight	1030 g (2.27 lb)
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (DNV-certified for -25 to 70°C)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: IEC 62368-1, UL 62368-1, IEC 60950-1, UL 60950-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Railway: EN 50121-4; Traffic Control: NEMA TS2; Maritime: IEC 60945, DNV; Hazardous Locations: ATEX, Class I Division 2; Power Substation: IEEE 1613, IEC 61850-3 Edition 2.0; Shock IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Telcordia (Bellcore), GB
