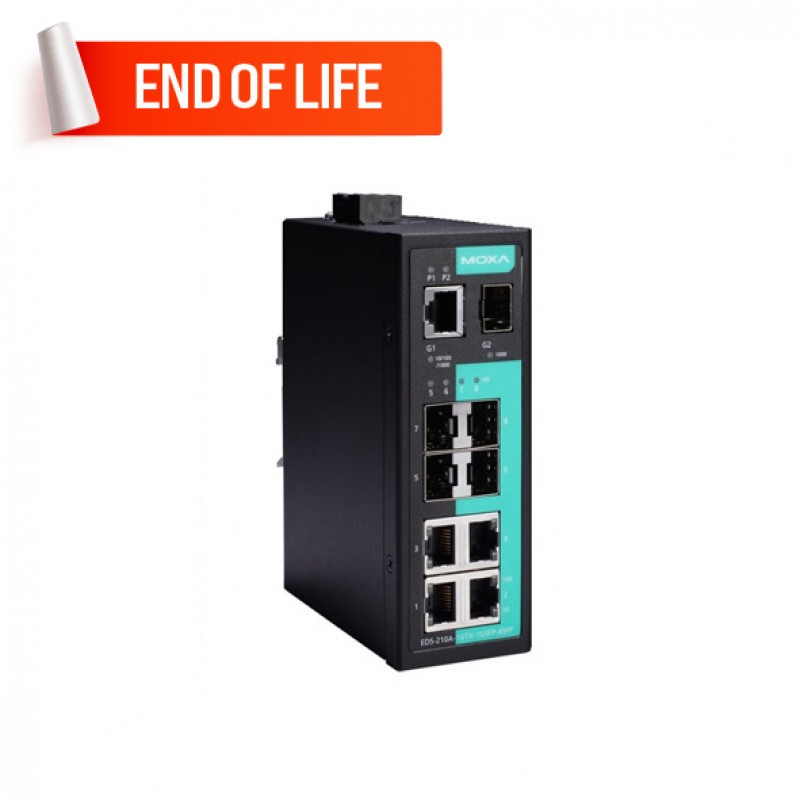

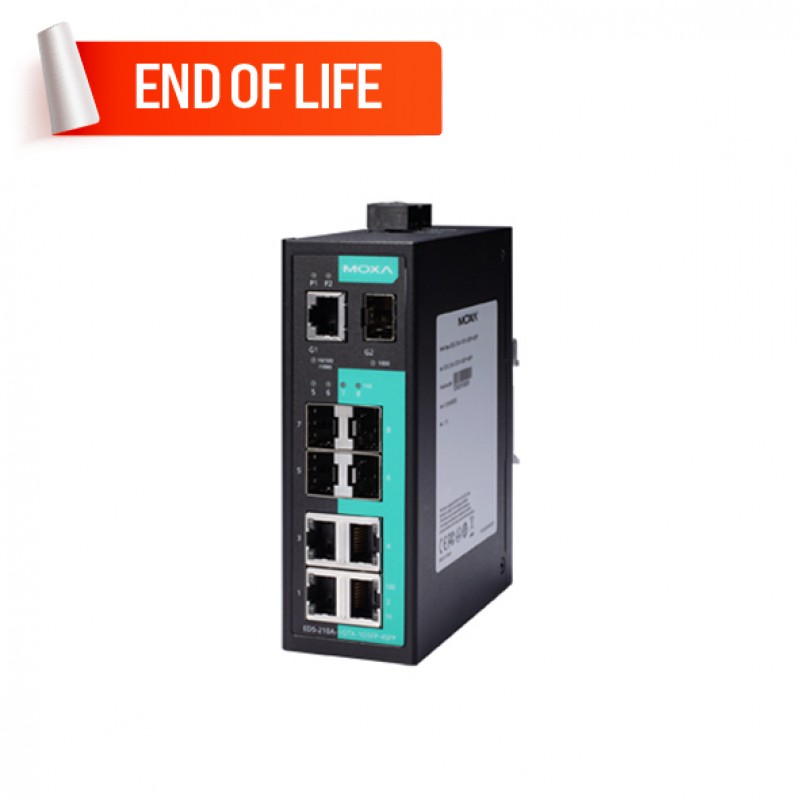

MOXA EDS-210A-1GTX-1GSFP-4SFP Unmanaged Ethernet Switches

  • 4 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 1 x 1000BaseSFP Slots and 4 x 100BaseSFP Slots
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • DIN-rail and Wall mounting
  • -10 to 60°C operating temperature

Description

The EDS-210A Series 10-port industrial Ethernet unmanaged switches provide up to 2 Gigabit Ethernet ports and are ideal for applications that require high-bandwidth data convergence. The EDS-210A-1GSFP-1SFP is equipped with 1 Gigabit fiber SFP slot, whereas the EDS-210A-1GTX1GSFP-4SFP is equipped with 1 Gigabit fiber SFP slot and 1 Gigabit copper port. The EDS-210A unmanaged switches have multiple 100M ports, up to 4 100BaseSFP slots, and 8 100BaseTX copper ports for added flexibility and long-distance communications.

The EDS-210A Series provides 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size for space-saving installations, each EDS-210A has passed a 100% burn-in test to ensure its quality. Moreover, the EDS-210A Series has an operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available. These features make the EDS-210A ideal for applications requiring high-bandwidth transmission and data convergence for uplinks, such as video surveillance, tolling systems, ITS, and factory automation.


End of Life Product - Replacement Available

Please note that the EDS-210A Series has been phased out and replaced by the EDS-2010-ML Series.


Easy World Automation offers the easiest way to buy the MOXA EDS-210A-1GTX-1GSFP-4SFP Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports : 4 Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 1 Port
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports : 4 Ports
1000Mb SFP Fiber optic (Gigabit) Ports : 1 Port
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Input Current 0.39 A @ 24 VDC
Power Input Plugin ( Redundant )
Input Voltage 12/24/48 VDC
Operating Voltage 9.6 to 60 VDC
Power Consumption -
General
Fan / Fanless Fanless
MTBF 2,485,402 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation
Physical Characteristics
Dimensions 45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5% to %95 RH non-condensing
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-32; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 570 g (1.26 lb)
Standards and protocols
Protocols and work standards -
Protocols and management standards -
Package Checklist
Hardware installation guide
Power adapter
Power cable
