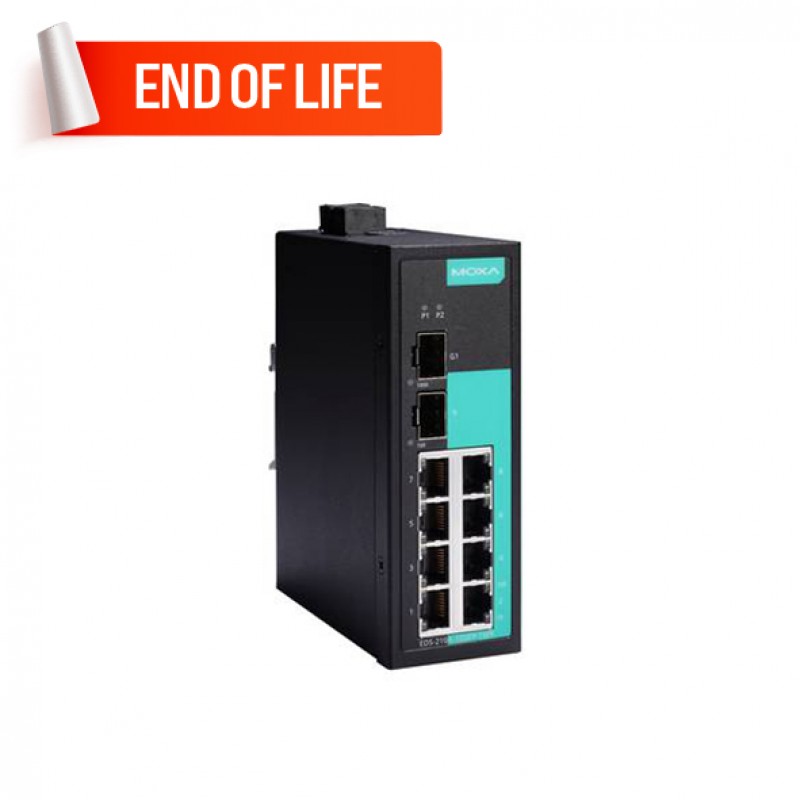

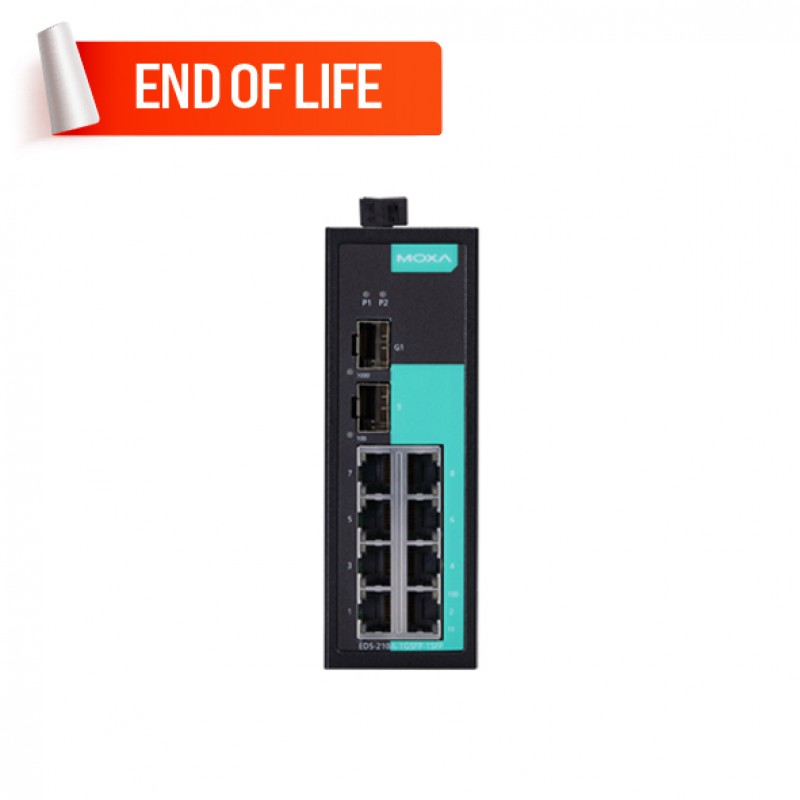

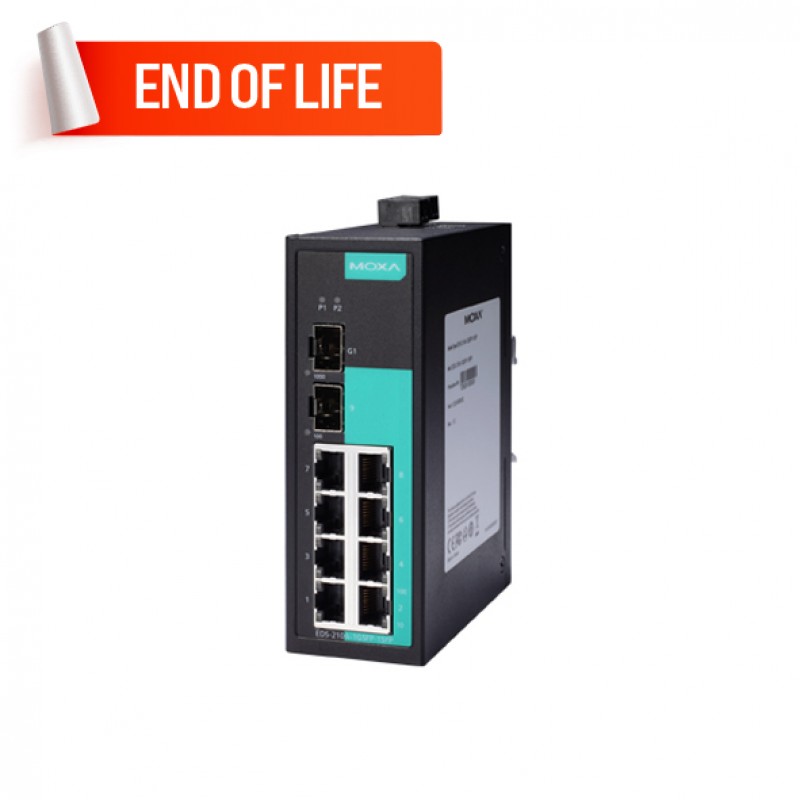

MOXA EDS-210A-1GSFP-1SFP-T Unmanaged Ethernet Switches
- 8 x 10/100BaseT(X) Ports (RJ45 connector)
- 1 x 1000BaseSFP Slots and 1 x 100BaseSFP Slots
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature
.png)
Description
The EDS-210A Series 10-port industrial Ethernet unmanaged switches provide up to 2 Gigabit Ethernet ports and are ideal for applications that require high-bandwidth data convergence. The EDS-210A-1GSFP-1SFP is equipped with 1 Gigabit fiber SFP slot, whereas the EDS-210A-1GTX1GSFP-4SFP is equipped with 1 Gigabit fiber SFP slot and 1 Gigabit copper port. The EDS-210A unmanaged switches have multiple 100M ports, up to 4 100BaseSFP slots, and 8 100BaseTX copper ports for added flexibility and long-distance communications.
The EDS-210A Series provides 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size for space-saving installations, each EDS-210A has passed a 100% burn-in test to ensure its quality. Moreover, the EDS-210A Series has an operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available. These features make the EDS-210A ideal for applications requiring high-bandwidth transmission and data convergence for uplinks, such as video surveillance, tolling systems, ITS, and factory automation.
End of Life Product - Replacement Available
Please note that the EDS-210A Series has been phased out and replaced by the EDS-2010-ML Series.
Experience the convenient way to purchase the MOXA EDS-210A-1GSFP-1SFP-T Unmanaged Ethernet Switches in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | : 1 Port |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 1 Port |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.39 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 2,469,233 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in) |
| Housing | Metal |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-32; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 520 g (1.15 lb) |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
