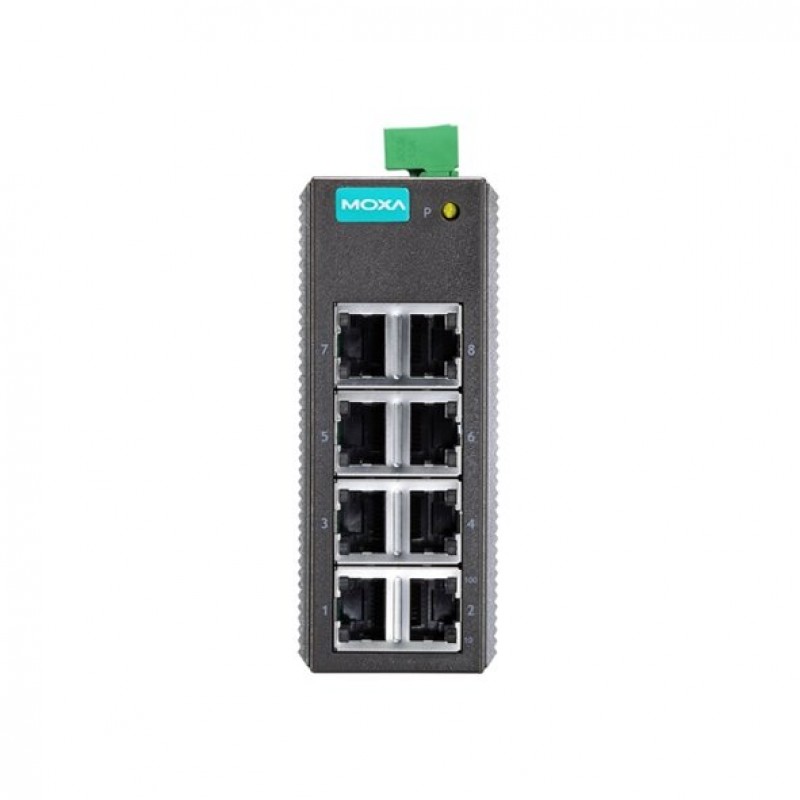

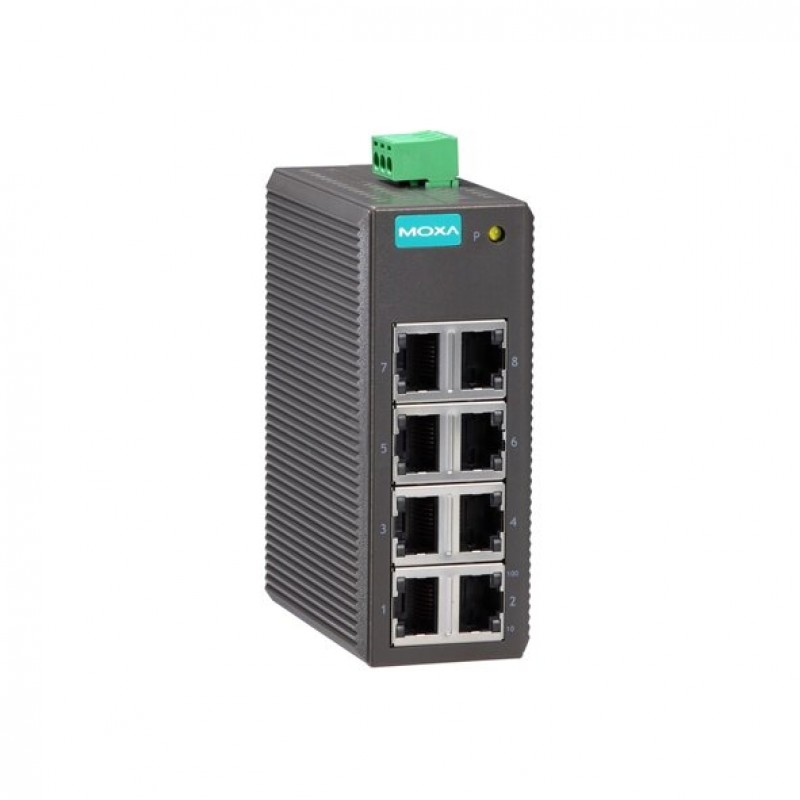

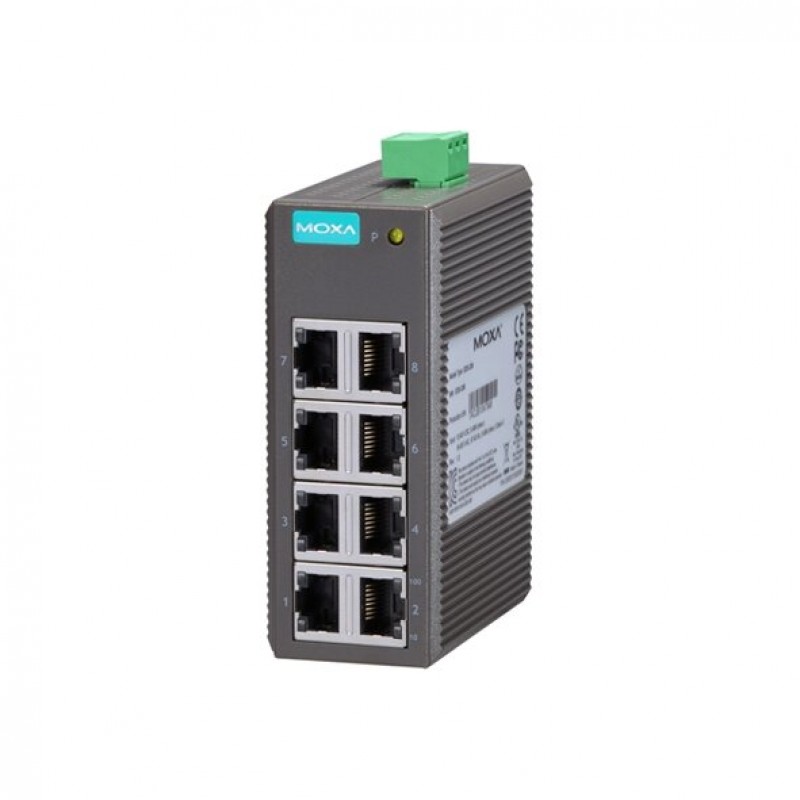

MOXA EDS-208 Unmanaged Ethernet Switches
- 8 x 10/100Mbps T(x) ports
- IEEE802.3/802.3u/802.3x support
- DIN-rail mounting ability
- IP30-rated plastic housing
- 12 to 48 VDC input power range
- -10 to 60°C operating temperature
- Brand: MOXA
- Product Code: EDS-208
.png)
Description
The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.
You can also find the EDS-208-M-SC and EDS-208-M-ST models in the DIN-Rail Ethernet Switches.
Explore our extensive range of
industrial automation products such as MOXA EDS-208 Unmanaged Ethernet Switches in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh) and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales experts
will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.07 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 3,902,526 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 40 x 100 x 86.5 mm (1.57 x 3.94 x 3.41 in) |
| Housing | Plastic |
| Installation | DIN-rail mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 508, UL 60950-1, EN 62368-1 (LVD); EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-31; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 170 g (0.38 lb) |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
