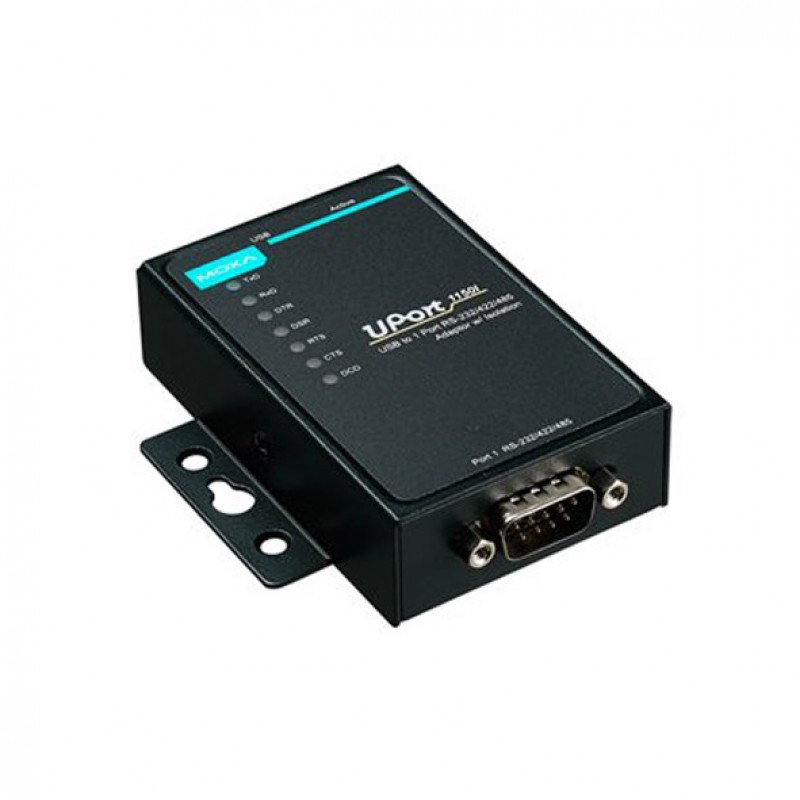

MOXA UPort 1150I USB to Serial Converter

1 x USB 2.0 Port (Type B connector)
1 x RS-232/422/485 Serial port (DB9 male connector)
2 KV Isolation protection for serial port
5 VDC input power range
ABS and Polycarbonate body design
Compatible Driver with Windows, macOS, WinCE, Linux
0 to 55°C operating temperature

Brand: MOXA
Product Code: UPort 1150I

Datasheet

Description

The UPort® 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort® 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

You can also find the UPort 1150, UPort 1130, and UPort 1110 models in the Industrial USB Converters.

Easy World Automation offers the easiest way to buy the MOXA UPort 1150I USB to Serial Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

USB Interface
Number of Ports	1 Port
USB Connector	USB type B
USB Standards	USB 2.0 compatible, USB 1.0/1.1 compliant
Speed	12Mbps
Serial Interface
Total number of serial ports	1 x RS-232/422/485 Port
Serial connection type	DB9-M with a mini DB9-F converter to the terminal
Serial Communication Parameters	Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF, None
FIFO	-
Data transfer speed ( Baudrate )	50 bps to 921.6 kbps
Electrical isolation	: 2 KV
Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Compatible Operating Systems
Windows Drivers	Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
Linux Drivers	Kernel 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Mac Drivers	macOS 10.12 to 10.15
General
MTBF	1,949,025 hrs
Power Requirements
Input Voltage	5 VDC
Input Current	260 mA
Physical Characteristics
Dimensions	52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
Housing	Metal
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class 1; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, IEC 61000-4-8 PFMF; Safety: UL 60950-1; Green Product: RoHS, CRoHS, WEEE; MIL-HDBK-217F, Telcordia (Bellcore), GB
Weight	75 g (0.16 lb)
