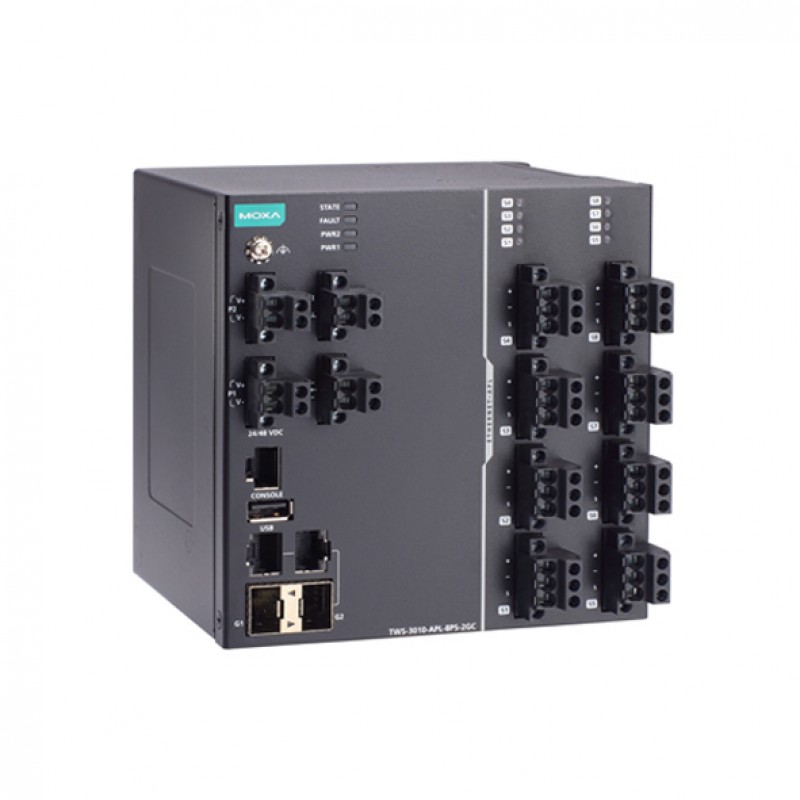

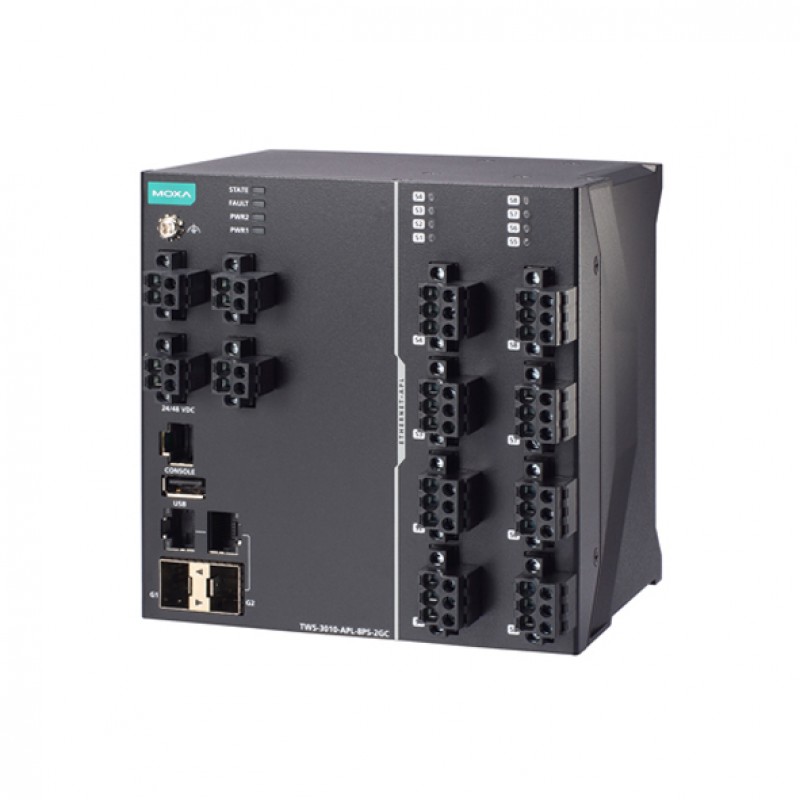

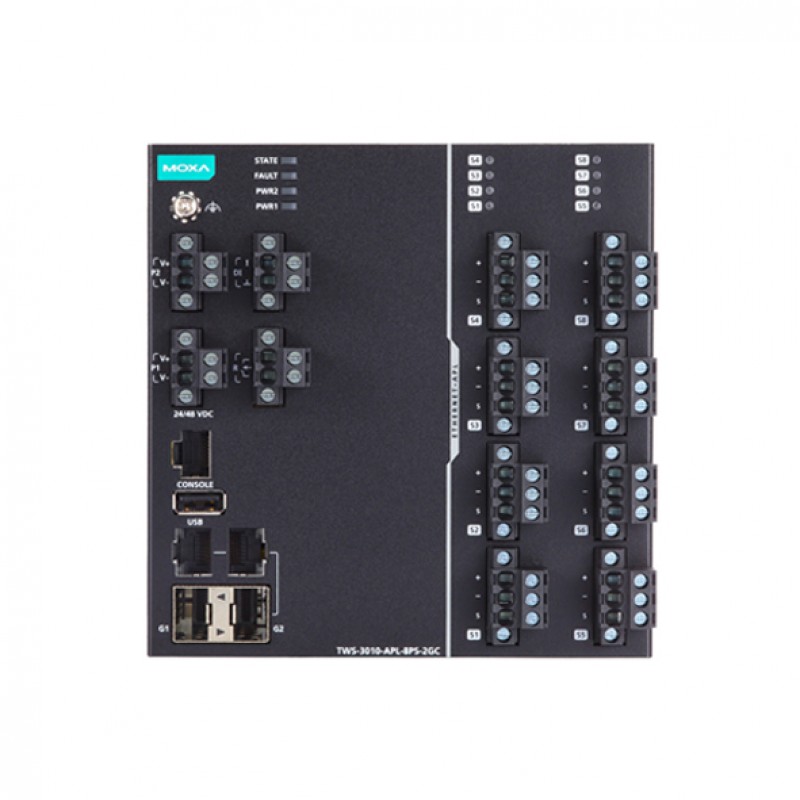

MOXA TWS-3010-APL-8PS-2GC-T Two-wire Ethernet Switch

8 x Ethernet-APL Spur Ports (10Base-T1L)
2 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP)
DIN-rail and Wall mounting
24/48 VDC Redundant dual power inputs
IP30-rated Metal body design
-40 to 75°C operating temperature range

Brand: MOXA
Product Code: TWS-3010-APL-8PS-2GC-T

Datasheet

Description

The TWS-3010-APL Series industrial two-wire Ethernet switch brings reliable Ethernet connectivity to process industries at the field level. Complies with the Ethernet-APL Technical Specification.

With 10BASE-T1L technology and support for APL Power Classes A and C, the switch extends Ethernet communication to field devices. It delivers both power and data over a single twisted pair at data rates up to 10 Mbps and distances up to 1 km, simplifying installation, lowering wiring costs, and enabling more flexible field deployment.

Diagnostic functions and port-mirroring make deployment and troubleshooting a breeze. Compact chassis and front-facing ports make installation and maintenance easy in tight control cabinets. Industrial Ethernet protocols, like PROFINET, allow for seamless integration with existing systems and provide scalability for future digitalization and IIoT expansion.

You can also find the TWS-3010-SPE Series in the DIN-Rail Ethernet Switches.

You can Buy the MOXA TWS-3010-APL-8PS-2GC-T Two-wire Ethernet Switch via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interface
Number of ports	10 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports	: 8 x Ethernet-APL Spur Ports (10Base-T1L) , 2 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP), 1 x Alarm Contact Channels (1 A @ 24 VDC), 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
Features and capabilities
Backup	: ABC-02-USB, ABC-02-USB-T
LED Indicators
LED Per Port
Power Requirements
Input Current	24 to 48 VDC, 1 A - 0.5 A (max.)
Power Input Plugin ( Redundant )
Input Voltage	24/48 VDC (Redundant dual inputs)
Operating Voltage	20 to 60 VDC
Power Consumption	-
General
Fan / Fanless	Fanless
MTBF	2,063,466 hrs
Switch specifications
Most forwarding speed	-
Network working layers	Layer 2
Switch type	Managed
Port Aggregation
Physical Characteristics
Dimensions	133 x 135 x 111 mm (5.24 x 5.32 x 4.37 in)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	Safety: UL 61010-2-201, EN IEC 62368-1; EMC: EN 61000-6-2/-6-4; EMI: FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Level 3, IEC 61000-4-3 RS: Level 3, IEC 61000-4-4 EFT: Level 3, IEC 61000-4-5 Surge: Level 3, IEC 61000-4-6 CS: Level 3, IEC 61000-4-8 PFMF: Level 3; Vibration: IEC 60068-2-6, IEC 60068-2-64; Shock: IEC 60068-2-27; Freefall: ISTA 1A (with package); Telcordia (Bellcore), GB; IP30
Storage Temperature	-40 to 85°C (-40 to 185°F)
Weight	1,452 g (3.20 lb)
Standards and protocols
Protocols and work standards	EtherNet/IP, Modbus TCP, PROFINET IO Device, Link Aggregation, MRP, MSTP, RSTP, STP
Protocols and management standards	LLDP, Back Pressure Flow Control, BOOTP, Port Mirroring, DHCP Option 66/67/82, DHCP Server/Client, Fiber check, Flow control, IPv4/IPv6, RARP, RMON SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q VLAN, BPDU Guard, BPDU Filter, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN
Package Checklist
Hardware installation guide
Power adapter
Power cable
