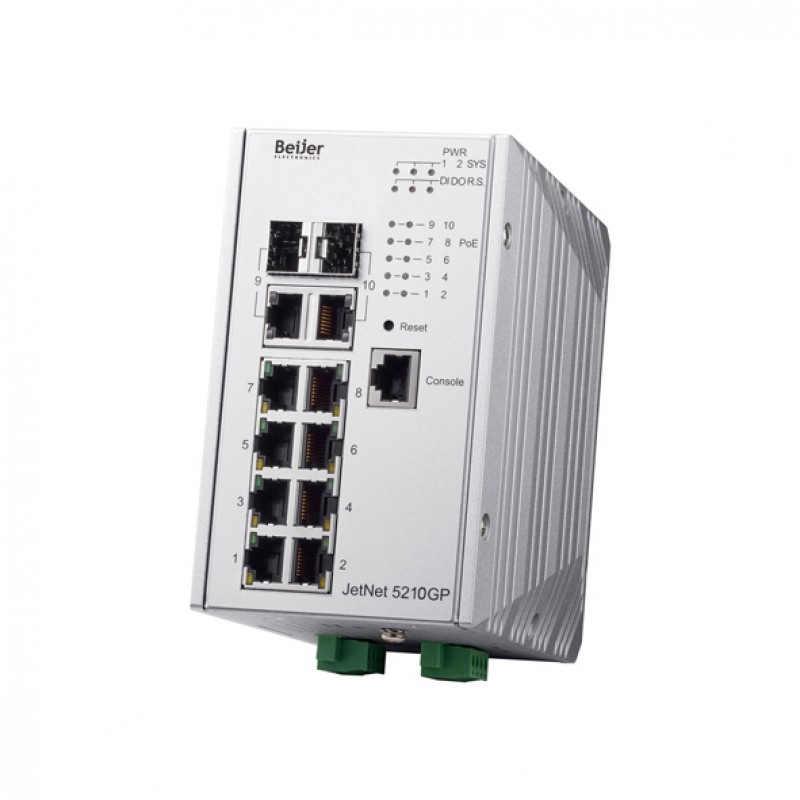

Beijer JetNet 5210GP-2C Managed Ethernet Switch
- 8 x 10/100/1000TX PoE Ports (RJ-45 connector)
- 2 x 100/1000M Combo Ports (auto MDI/MDI-X)
- Compliance with IEEE 802.3af/at standard
- 2 x DC power inputs, 48V & 50V (48-57V)
- DIN-rail mount installation
- IP30-rated Steel body with Aluminum panel housing
-40 to 75°C operating temperature range
.png)
Description
JetNet 5210GP, the DIN-Rail type industrial Gigabit managed
PoE switch, is designed with eight 10/100/1000TX ports and two Gigabit
RJ-45/SFP combo ports. JetNet 5210GP is the first industrial Ethernet switch
compliant with IEEE 802.3af/at/bt, with each Ethernet port supporting up to 90W
for PD and a total PoE power budget of up to 480W. It is engineered for
reliable operation in harsh environments and includes one alarm relay to
indicate link or power failure, allowing users to respond quickly and reduce failover
time. With IEC 61000-6-2 and IEC 61000-6-4 heavy industrial EMC and trackside
certification, along with a robust enclosure and a wide operating temperature
range of -40°C to 75°C, JetNet 5210GP ensures high performance for traffic
control systems and other industrial network applications.
You can also find the JetNet 5010G in the Ethernet Switches.
Experience the convenient way to purchase the Beijer JetNet 5210GP-2C Managed Ethernet Switch in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | : 8 x 10/100/1000TX Ports (RJ-45 connector) |
| Other ports | : 2 x 100/1000M Combo Ports (auto MDI/MDI-X), 1 x RS-232 Console port (RJ-45 connector), 1 x Digital Input / Relay Output port (4-Pin removable terminal block connector), |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | - |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | DC 48V & 50V (48-57V) |
| Operating Voltage | - |
| Power Consumption | PoE 240W@48V; 480W@50V |
| General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| Switch specifications | |
| Most forwarding speed | 20 Gbps |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 74 (W) x 132(D) x 135 (H) |
| Housing | Steel metal with Aluminum heat-dissipate panel housing |
| Installation | DIN-rail mounting |
| Operating Temperature | -40 ~75°C |
| Operation Humidity | 0% ~ 95%, non-condensing |
| Standards and Certifications | Regulatory/approval: CE/FCC/EN50121-4/UL62368-1; Compliance standard: Heavy Industry EMC; RoHS; EMC: IEC/EN61000-6-2, IEC/EN61000-6-4 Heavy Industrial EMC; EMI: FCC Class A, CE/ Class A; EMS:IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8; Railway Application: EN50121-4; Shock: Compliance with IEC 60068-2-27; Vibration: Compliance with IEC 60068-2-6; Free Fall: Compliance with IEC 60068-2-32; Ingress Protection: IP31 |
| Storage Temperature | -40 ~ 85oC, 0% ~90% Humidity |
| Weight | 1.2Kg |
| Standards and protocols | |
| Protocols and work standards | LLDP, RSTP, MSTP, LACP, IEEE802.1Q VLAN, Private VLAN, Trunk, Packet Filtering, DHCP Server/Client, Traffic Prioritize, Rate Control |
| Protocols and management standards | Telnet & Local Console: Supports command line interface with Cisco-like commands and a maximum of 4 sessions; the telnet interface also supports SSH; SNMP: Supports IPv4/IPv6, v1, v2c, v3 with SNMP trap function, trap station up to 4, and can be manually configured to use the trap server IP address. SNMP MIB: MIBII, Bridge MIB, Ethernet-like MIB, VLAN MIB, IGMP MIB, Korenix Private MIB; Network Time Protocol: Supports NTP protocol with daylight saving function and localized time sync function; Management: IP Security IP address security to prevent unauthorized access; E-mail Warning: 4 receipt E-mail accounts with mail server authentication; System Log: Supports both Local or remote Server with authentication; IEEE 802.1x: Port based network access control, RADIUS, MAB, TACACS+ |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
