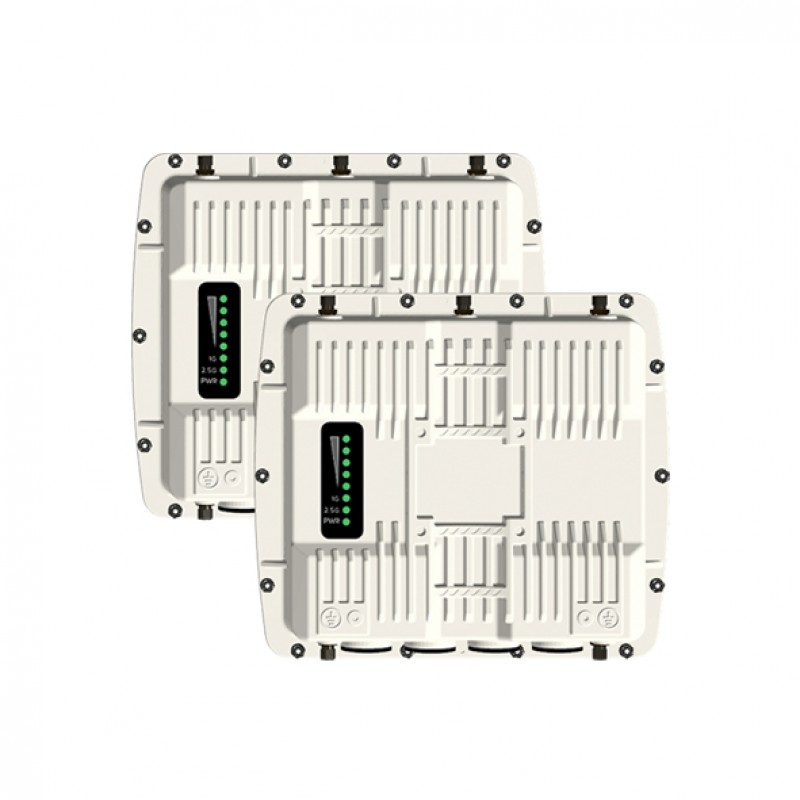

Proxim Stratum SX5-1040A-WD Quickbridge Point-to-Point Radio
- Pair of 5 GHz All-purpose unit (BSU single or SU), PN: 907-00003
- Throughput >1.5 Gbps TCP and 1.8 Gbps UDP
- Wide Band Radio - 5.150 – 5.850 GHz
- One 2.5 Gbps Ethernet with PoE in and One 1 Gbps Ethernet with PoE out (RJ45), One SFP+ port for Fiber or Copper 10 Gbps SFP module
- AES 128-bit encryption is upgradeable to 256-bit
- Full tilt and swivel mounting kit included
- Four RP-SMA Connectors
- IP67-rated metal enclosures and operate from -40º to + 60º
.png)
Description
The Stratum™️ X5 Quickbridge - 5GHz is an
ultra-high-performance point-to-point bridge in a box solution. Ideal for
customers who need a point-to-point wireless link up and running quickly. The
Stratum™️ X5 is a 5GHz, MIMO 4x4 point-to-point radio system with greater than 1.5
Gbps throughput, and is ideally suited to high-capacity backhaul applications.
Flexible Antenna Options
The SX5-1042A is a flexible variant that includes an
integrated quad-polarity panel antenna, plus software-selectable connectors for
external antennas. Model SX5-1040A is a connectorized unit purpose-built for
external quad-polarity antennas where specific antenna patterns or gain
adjustments are needed.
Flexible and Secure Management Options
Management options include Proxim BlueConnectTM, our
Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI,
and SNMP v3 for ProximVision Advanced or other network management solutions.
Advanced Interference Management
Proxim ClearConnectTM combines multiple dynamic technologies
and delivers the best interference management solution.

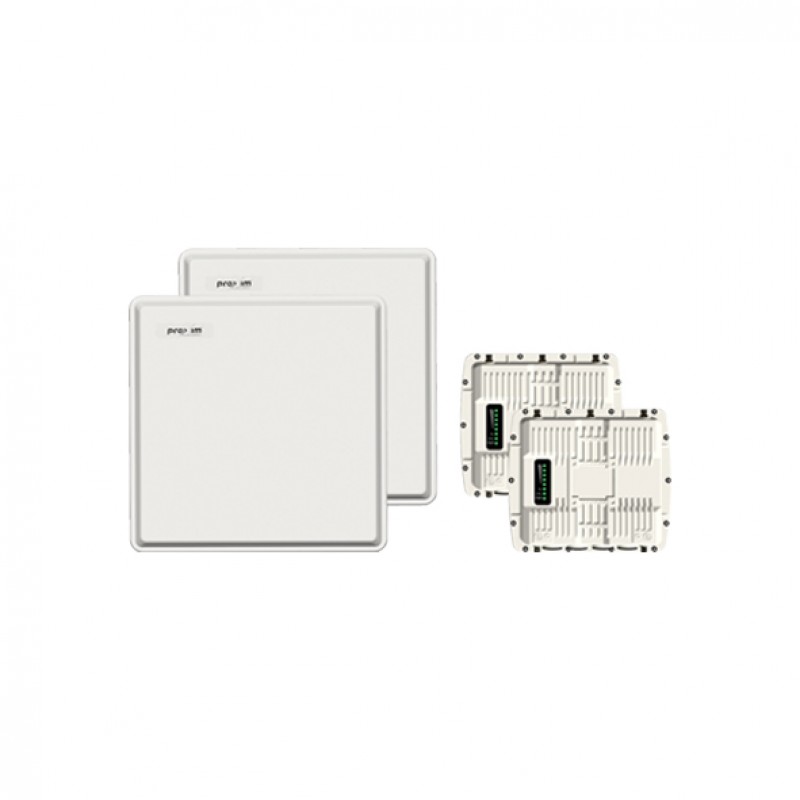

Bridge in a Box
Ship as a preconfigured Quickbridge bundle: two units paired
into a point-to-point link in a single carton.
Rugged Reliability
Stratum x5 uses an IP67-rated metal enclosure to ensure
years of reliable service in harsh environments, including high winds, high
salt, and temperature extremes.
You can also find the Stratum SX5-1042A-WD Quickbridge, Stratum SX5-2040A-WD Quickbridge, and Stratum SX5-2042A-WD Quickbridge models in the Stratum™ X5 Quickbridge.
Easy World Automation offers the easiest way to buy the Proxim Stratum SX5-1040A-WD Quickbridge Point-to-Point Radio in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interfaces | |
|---|---|
| Ethernet | - |
| Wired Ethernet | One auto MDI-X RJ45 2.5 Gbps Ethernet with PoE in, One auto MDI-X RJ45 1 Gbps Ethernet with PoE out |
| Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
| Extension | One SFP+ port for Fiber or Copper 10 Gbps SFP module |
| Management | - |
| Radio Specifications | |
| Radio Type | Point-to-Point |
| MIMO | 2x2:2 and 4x4:4 |
| Modulation | OFDM BPSK-QAM1024 |
| Frequency | 5.150 – 5.925 GHz (Subject to Country Regulations) |
| Channel Size | 20, 40 and 80 MHz (80+80 and 160 MHz via future upgrade) |
| Data Rate | - |
| TX Power | Up to 26 dBm (dual chain) or 29 dBm (quad chain) |
| TX Power Control | 0 - 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
| Throughput | Throughput - Dual Stream: 20 MHz: 223 Mbps, 40 MHz: 435 Mbps, 80 MHz: 755 Mbps; Throughput - Quad Stream: 20 MHz: 442 Mbps, 40 MHz: 820 Mbps, 80 MHz: 1581 Mbps |
| Other | Dynamic Channel Selection (DCS) based on interference detection,, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support |
| Antenna | |
| Antenna Type | Four RP-SMA Connectors |
| Beam Width | - |
| Receive Gain | - |
| Transmit Gain | - |
| Network | |
| Modes | Bridging, (Routing to be added by future firmware update) |
| IP Stack | IPv4 and IPv6 simultaneously |
| Latency | - |
| VLAN | 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging |
| Gateway Features | - |
| Management | |
| Remote | Telnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3 |
| SNMP | - |
| Bluetooth Low Energy | Proxim BlueConnect™ |
| Multi-Language Support | Web Interface available in English, French, Spanish and Chinese |
| Other | Syslog, SNTP and local time, Spectrum analyzer |
| Security | |
| Encryption | AES 128 (AES 256 via license upgrade) |
| Authentication | Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning) |
| 802.1X Support | - |
| Wireless | |
| AP-AP Communications | - |
| RF Environment | - |
| Other | - |
| General | |
| MTBF | >450 000 hours, 2-year warranty, ServPak Extended Support available. |
| Power Requirement | |
| Input Power | - |
| Output Power | - |
| Power Consumption | 14 to 17 W max in MIMO 2x2 mode, 22 to 25 W max in MIMO 4x4 mode |
| Power Standards | 802.3at/bt compliant |
| Physical Characteristics | |
| Temperature | OPERATING: -40º to 60ºC, -40º to 140º Fahrenheit; STORAGE: -50º to 70ºC, -58º to 158º Fahrenheit |
| Humidity | 100% relative humidity |
| IP Rating | IP67 |
| Dimensions Packaged | 388 x 346 x 428 mm (15.27 x 13.62 x 16.85 in) |
| Dimensions Unpackaged | 250 x 220 x 62 mm (9.84 x 8.66 x 2.44 in) |
| Weight (PACKAGED) | 10.0 Kg (22.04 lbs) |
| Weight (UNPACKAGED) | 1.6 Kg (3.53 lbs) |
| Standards and Certifications | USA: EMC/EMI: CFR47, FCC part 15, Subpart B (class A), Bluetooth: FCC Part 15 Subpart C 15.247,15.205, 15.207 & 15.209, UNII 1 and 3: FCC part 15, Subpart C 15.247, 15.205, 15.207 & 15.209, Subpart E 15.407, UNII 2A and 2C: FCC part 15, subpart E 15.407, 15.247, 15.205, 15.207 & 15.209; CANADA: EMC/EMI: ICES-003 issue 7:2020 (class A), Bluetooth: RSS-247 issue 3 & RSS Gen Issue 5, UNII 3: RSS-247 issue 3 & RSS Gen Issue 5, UNII 2A and 2C: RSS-247 issue 3 & RSS Gen Issue 5; EUROPE: EMC/EMI: EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, RED: EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 300 328, EN 301 893, EN 302 502, EN 303 413; UK: EMC/EMI: BS EN 55032:2015+A1:2020, BS EN 55035:2017+A11:2020, UKCA EN 301 489-1, EN 301 489-17, EN 301 489-19, EN 300 328, EN 301 893, EN 302 502, EN 303 413 |
| Safety | IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020, BS EN IEC 62368-1:2020+A11:2020, UL 62368-1:2019, CSA C22.2 No. 62368-1:19 |
| Wind Loading | 180 km/h (112.5 mph) |
| Standards and Protocols | |
| Synchronization | - |
| Package Checklist | |
| Package Contents | One Stratum SX5-1040A unit with four RP-SMA connectors or One Stratum SX5-1042A with integrated antenna plus four RP-SMA connectors, Three (SX5-1040A) or Five (SX5-1042A) RP-SMA weather proofing caps, Two M25 weather proofing cable glands, One power injectors and country specific power cords, One full axis mounting kits, One Grounding kits, One Quick Installation Guides |
