Description

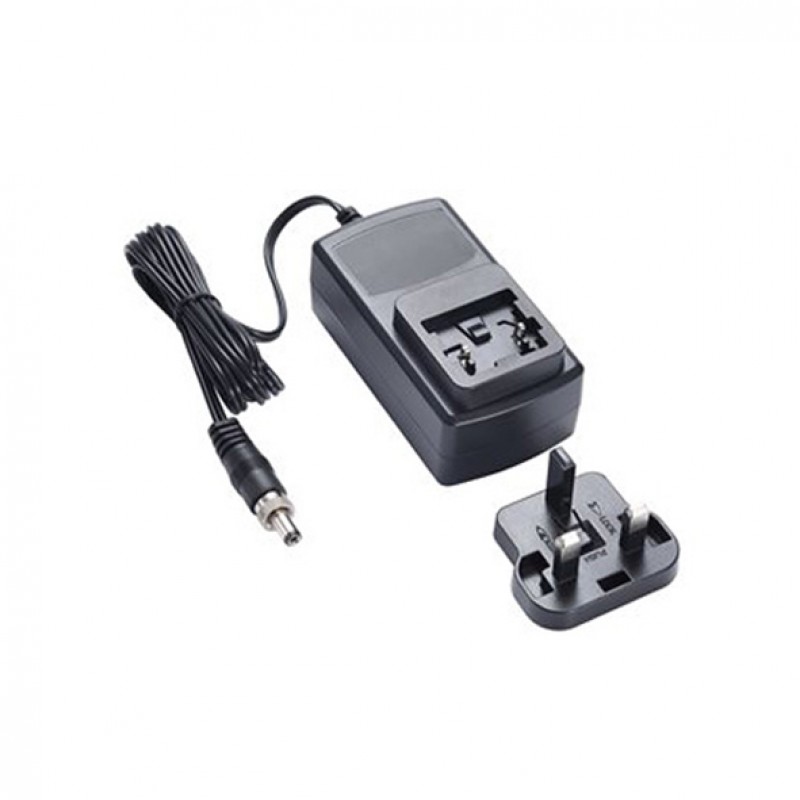

The power adapters in Moxa’s Power Adapter Series provide a
reliable power source for many Moxa products.
You can also find the PWR-12150-WPAU-S2 and the PWR-12300-WPEU-S2 models in the Power Adapters.
Experience the convenient way to purchase the MOXA PWR-12300-WPUK-S2 Power Adapter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Input Power Parameters | |
|---|---|
| Voltage Range | 100 to 240 VAC (50 to 60 Hz) |
| Power Parameters | |
| Input Plug Type | United Kingdom plug type |
| Output Power Rating | 3 A @ 12 VDC |
| Output Plug Type | S-Type 5.5/2.1/7.5, Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in), Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in) |
| Physical Characteristics | |
| Dimensions | 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in) |
| Weight | - |
| Cord Length | 1500±100 mm (59.06±3.94 in) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Standards and Certifications | Safety: CE/FCC/UL/RCM/PSE/CCC/GS |
