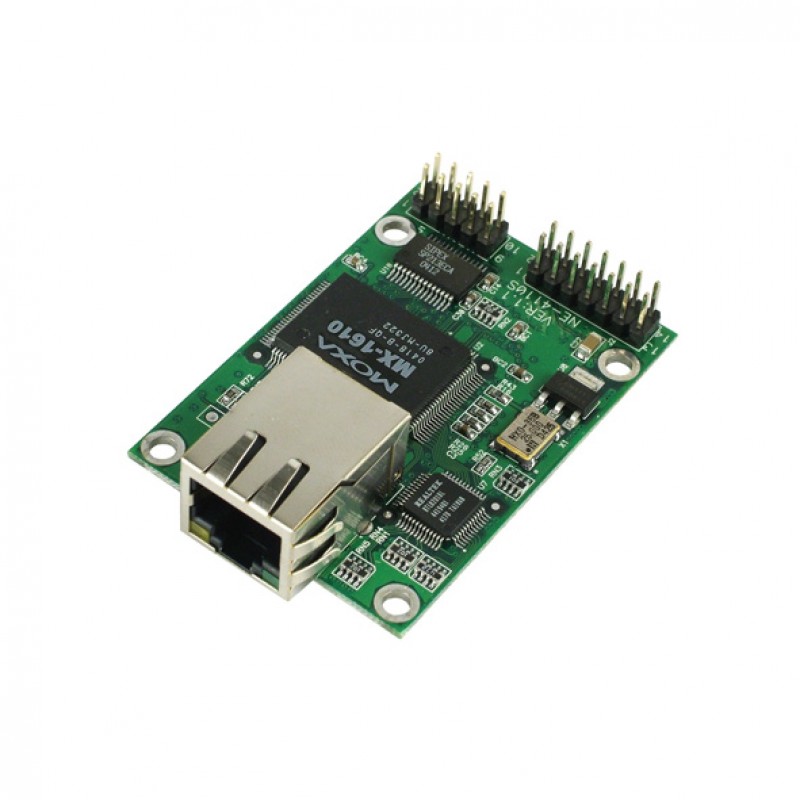

MOXA NE-4110A Serial to Ethernet Device Server Module
- CPU: 16-bit MCU
- 1 x 10/100BaseT(X) Port (RJ45 connector)
- 2 x Serial Ports (1 for serial interface, 1 for TTL console port)
- Input power 5V DC, 0.29A
- Form Factor Type: Ready-to-go pin header module
- 0 to 55°C operating temperature
Description
Moxa’s NE-4100 embedded device servers are designed for
manufacturers who want to add sophisticated network connectivity to their
serial devices. Moxa’s embedded device servers can be used to convert any
device with a standard serial interface to an Ethernet-enabled device in no
time. The NE-4100 embedded device servers support 10/100 Mbps Ethernet and
provide ready-to-use operation modes, including TCP Server, TCP Client, and
UDP. In addition, a Real COM driver is included for backward compatibility with
legacy software.
You can also find the NE-4110S and NE-4110A-T models in the Serial-to-Ethernet Converters.
Enjoy the ease of online inquiries for the MOXA NE-4110A Serial to Ethernet Device Server Module. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Embedded System | |
|---|---|
| CPU | 16-bit MCU |
| Flash | 2 MB |
| SDRAM | 1 MB |
| Input/Output Interface | |
| Configurable DIO Channels | : 4 x Channels |
| Digital Input Channels | |
| Digital Output Channels | |
| Ethernet Interface | |
| Ethernet Ports | 1 x 10/100BaseT(X) Ports, Auto MDI/MDI-X (RJ45 connector) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Power Parameters | |
| Input Current | - |
| Input Voltage | 5 VDC |
| Seriel Interface | |
| Number of Ports | 2 Ports (1 for serial interface, 1 for TTL console port) |
| Serial Standards | RS-422/485 |
| Baudrate | 110 bps to 230.4 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
| Serial Signals | RS-422: TX+, TX-, RX+, RX-, GND, RS-485-4w: TX+, TX-, RX+, RX-, GND, RS-485-2w: Data+, Data-, GND |
| General | |
| Management | ARP, Device Search Utility (DSU), DHCP Client, HTTP, IPv4, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP, Web Console, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| MTBF | 289,573 hrs |
| Physical Characteristics | |
| Dimensions | 57 x 40 mm (2.24 x 1.57 in) |
| Operating Temperature | 0 to 55˚C (32 to 131˚F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-3, IEC 60068-2-14; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 40 g (0.09 lb) |
