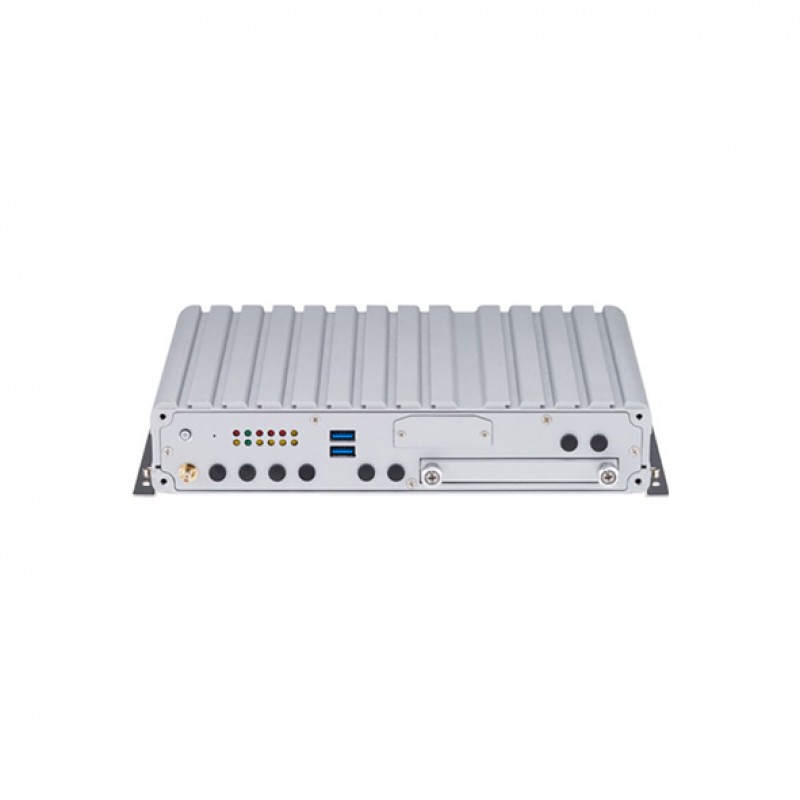

Nexcom VTC 6231 In-Vehicle Computer
- Intel Atom® processor quad-core x7433RE, 1.5GHz
- Eight SIM cards + four WWAN modules support
- Built-in u-blox-M9N GPS
- Built-in CAN FD
- 1 x External storage (compatible with 9mm disk)
- E mark conformity
- 3 x M.2 + 2 x mPCIe socket expansion
- Wide voltage input 9~36 VDC
- Three video outputs, one VGA, one HDMI, and one DP
- 1 x Mic-in, 1 x Line-out, 1 x Line-In
Description
VTC 6231, based on Intel Atom® quad-core processor x7433RE, specifically complies with stringent E mark standards in the rugged, fanless, and
compact mechanism. VTC 6231 provides complete communication capability between
vehicle and computer with a built-in CAN FD interface. VTC 6231 features rich
WLAN and WWAN wireless connectivity. With dual SIM cards per modem support, VTC
6231 allows eight SIM cards to back up each other for better connectivity quality
by software. In addition, eight SIM cards and four WWAN modules architecture
can increase the bandwidth for a faster data transmission speed. Equipped with
intelligent power management, the VTC 6231 can be woken on remotely by ignition, an RTC timer, or an SMS message. By integrating the variety of I/O ports and 2 x
mini-PCIe, 3 x M.2 sockets expansibility, up to three screens via VGA, HDMI,
and DP connections, VTC 6231 keeps the flexibility to meet the demand for
different vehicle applications, such as infotainment, dispatching system,
cellular/wireless network connectivity, and video surveillance. The design of
mini-PCIe slots x 2 can solve the potential request from the market when
needed.
You can also find the VTC 6210-BK model in the Vehicle Telematics Computer.
Explore our extensive range of industrial automation
products such as Nexcom VTC 6231 In-Vehicle Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh),
and Oman). Submit your inquiry to enjoy
the on-time delivery service. Our sales experts will contact you to fulfill all
your industrial automation needs.
Specification
| General | |
|---|---|
| CPU | Intel Atom® processor x7433RE, 1.5GHz, 9W, 4-core |
| Memory | 1 x 262-pin DDR5 SO-DIMM socket, supports 4800MHz up to 16GB, default 8GB |
| Expansion | 2 x M.2 3042/3050/3052 Key B socket (USB 2.0, USB 3.2 Gen 2) for LTE/5G NR module with 2 x external Nano-SIM, 1 x Full size mini-PCIe socket (USB 2.0, SATA, PCIe 3.0) for mSATA (default), BIOS select (USB 2.0) for LTE with 2 x external Nano-SIM, BOM option (USB 2.0, PCIe 3.0) for WLAN, 1 x M.2 2230 Key E (PCIe 3.0 x 1, USB 2.0), BOM optional mPCIe (PCIe 3.0 x 1, USB2.0) for Hailo module |
| Function | - |
| Storage | 1 x 2.5” SATA 3.0 external SSD (compatible with 9mm drive), 1 x mSATA (occupies one mPCIe slot) |
| Interface | |
| I/O Interface-Front | 12 x LED indicators (including 3 x programmable LED), 8 x Externally accessible Nano-SIM card sockets with cover, 1 x 2.5” SATA 3.0 SSD tray (removable, 9mm), 1 x Reset button, 1 x Power button, 2 x USB 3.2 (Gen 2) type A, 9 x SMA antenna |
| I/O Interface-Rear | 1 x 3-pin terminal block for 9V~36 VDC, 2 x USB 2.0 type A, 2 x RJ45 LAN port, 10/100/1000/2500 Mbps, 1 x Mic-in, 1 x Line-out, 1 x Line-In, 1 x VGA, 1 x HDMI 2.0, 1 x DP, 2 x DB9 (COM1, COM2) for selectable RS232/422/485 Full, 5 x SMA antenna, 1 x DB9 for RS232 Full, 1 x 18-pin terminal block: 1 x CAN FD (isolated), 4 x DI, 4 x DO, 1 x GNSS Speed/Direction, 12V/2A DC output, GND |
| Power Requirement | |
| Power Management | Power input 9~36 VDC, Selectable boot-up & shut-down voltage for low power protection by software, Setting 8-level power on/off delay time by software, Support S3/S4 suspend mode, 10~255 seconds WDT support, setup by software, SDK (Windows/Linux) including utility and sample code |
| Physical Characteristics | |
| Dimensions | 260mm (W) x 196mm (D) x 50mm (H) (10.24” x 7.71” x 1.97”) |
| Operating temperatures | -40°C to 70°C (w/ industrial SSD) with airflow |
| Storage temperatures | -40°C to 85°C |
| Humidity | 10% to 90% (non-condensing) |
| Weight | 2.5kg |
| Environment | Operating temperatures: 40°C to 70°C (w/ industrial SSD) with air flow, Storage temperatures: -40°C to 85°C, Relative humidity: 10% to 90% (non-condensing), Vibration: IEC 60068-2-64, 2G for SSD, Operating: MIL-STD-810H, 514.8C, Procedure 1, Category 4, Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24, Shock: Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g, Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g |
| Standards/Certifications | CE, FCC Class A, E13 mark |
| Compatible Operating Systems | |
| Operating System | Windows 10, 11 (64-bit), Linux 4.x |
