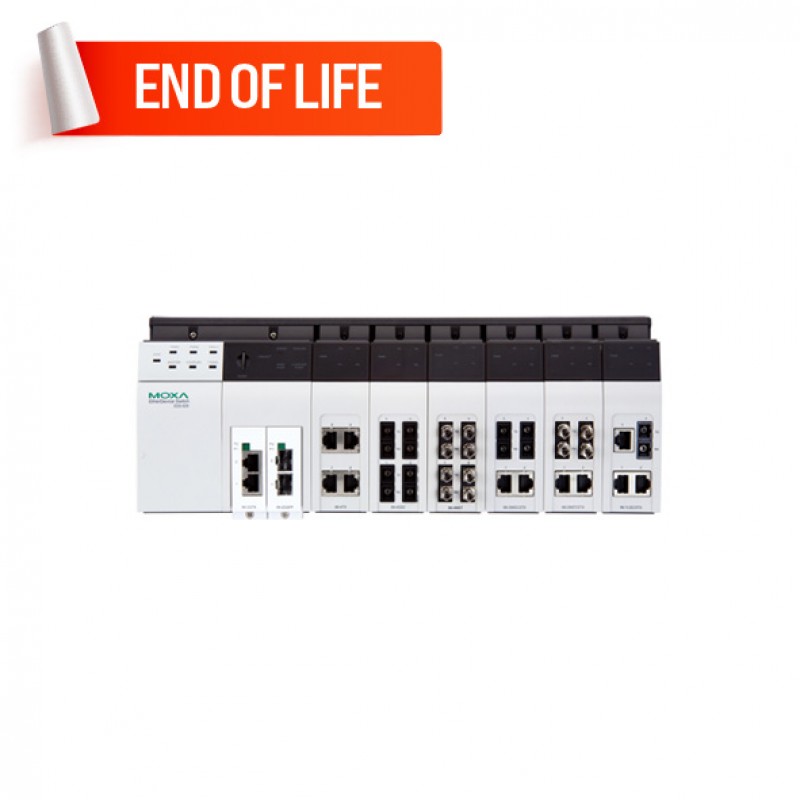

MOXA EDS-82810G-4GSFP Managed Ethernet Switch
- Modular Managed Ethernet Switch
- Layer 3 switching functionality
- 2 x 2-Port slots for combination with IM Series GE modules
- 6 x 4-Port slots for combination with IM Series FE modules
- 2 x IM-2GSFP modules pre-installed
- DIN-rail and Wall mounting
- 24 VDC Redundant dual power inputs
- 0 to 60°C operating temperature
.png)
Description
The EDS-828 Series features a versatile modular design that allows different combinations of fiber and copper modules, creating a wide array of connection options ideal for any automation network. The modular design lets you install up to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-828 Series is specially designed for redundant Gigabit network backbones and uses a modular configuration to provide high flexibility for network expansion. Top network performance, security, and reliability are assured through the EDS-828’s advanced management and security features.
The EDS-828 Series also features industrial-grade construction, a console port for automatic configuration backup, and an angled LED troubleshooting panel that can be conveniently viewed from both horizontal and vertical orientations. In addition to Layer 2 features, the EDS-828 Series is a high-performance Layer 3 Ethernet switch designed for network routing. The improved hardware technology built into the EDS-828 Series replaces the software logic used by traditional routers, offering better performance, and making the switch ideal for large-scale local area networks.
End of Life Product - Replacement Available
Please note that the EDS-728 Series has been phased out and replaced by the MDS-G4028-L3 Series.
Easy World Automation offers the
easiest way to buy the MOXA EDS-82810G-4GSFP Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | Up to 24 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Up to 4 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | Up to 24 Ports |
| 100Mb Fiber optic single mode (Megabit) Ports | Up to 24 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 4 Slots |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 2 x Alarm Contact Channels, 2 x Digital Input Channels (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x RS-232 Console Port (10-pin RJ45 connecor) |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.82 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24 VDC |
| Operating Voltage | 12 to 45 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 191,203 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in) |
| Housing | - |
| Installation | DIN-rail mounting, wall mounting (with optional kit) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Freefall: IEC 60068-2-32; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: ABS, DNV-GL, LR, NK; Safety: EN 60950-1, UL 508, UL 60950-1, CSA C22.2 No. 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1950 g (4.30 lb) |
| Standards and protocols | |
| Protocols and work standards | IEEE 1588 PTPv2, EtherNet/IP, Modbus TCP, PROFINET, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, GMRP, GVRP, IGMP v1/v2, QinQ VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
