Description
The ioPAC 8600 Series modular programmable controllers are 100% modular, giving you the freedom to choose the CPU, power, backplane, communication, and I/O modules you need for your application. In addition, the ioPAC 8600 enhances the hardware system architecture and key features of the ioPAC 8020 and ioPAC 8500 combined and has an Ethernet bus on the backplane to support Ethernet switch modules. The ioPAC 8600 supports the C/C++ and IEC 61131-3 programming languages and ready-to-run services, including Modbus TCP/RTU, SNMP, data logging, and email alarms to fulfill different customer requirements. With active tag and MX-AOPC UA Suite data integration software, the ioPAC 8600 Series provides a comprehensive solution for data acquisition and control applications in harsh environments.
All New High-Performance CPU30 Module
Moxa’s ioPAC 8600-CPU30 module is equipped with a new 1 GHz high-performance Cortex™ A8 CPU, which shortens the cycle time significantly and allows users to run more programs simultaneously. The real-time Linux OS also provides better controllability, reducing jitter to only 10% of the jitter experienced by the CPU10 module. With the CPU30 module’s 4 GB eMMC, the ioPAC 8600 can support more communication protocols for a wider range of scenarios, including a RESTful API for railway IIoT applications and DNP3 outstations2 for oil and gas applications. The CPU30 also reserves up to 1.7 GB of internal storage which gives users the freedom to develop more complex programs for specific ioPAC applications. As an added bonus, users can develop programs directly on the ioPAC.
You can also find the ioPAC 8600-PW10-30W-T, ioPAC 8600-CPU30-RJ45-C-T, and ioPAC 8600-BM012-T models in the

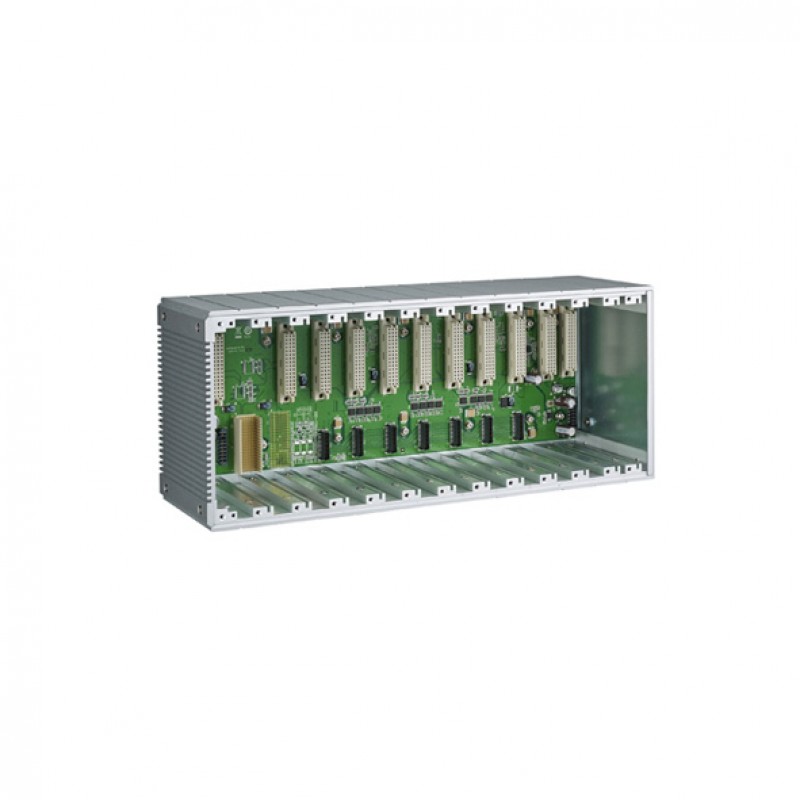

Inquire about the MOXA ioPAC 8600-BM005-T I/O Module, designed
for industrial automation solutions. Feel free to get in touch with our sales team to give you
the best solutions at the best global price in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| COMPUTER | |
|---|---|
| CPU | - |
| OS | - |
| Clock | - |
| RAM | - |
| MicroSD Slot | - |
| CONTROL LOGIC | |
| Language | - |
| ETHERNET INTERFACE | |
| LAN Ports | - |
| Magnetic Isolation Protection | - |
| SERIAL INTERFACE | |
| No. of Ports | - |
| Serial Standards | - |
| Connector | - |
| Serial Communication Parameters | - |
| Serial Signals | - |
| POWER REQUIREMENTS | |
| Power Consumption | 223 mA @ 24 VDC |
| Input Voltage | 24 to 110 VDC |
| Power Connector | Spring-type Euroblock terminal |
| SECURITY | |
| Authentication | Local database |
| Encryption | AES-256, HMAC, RSA-1024, SHA-1, SHA-256 |
| Security | Security Protocols: SNMPv3, SSHv2 |
| GENERAL | |
| MTBF | 2,678,587 hrs |
| Management | - |
| Supported Protocols | - |
| PHYSICAL CHARACTERISTICS | |
| Housing | Metal |
| Dimensions | 205.65 x 133.35 x 100 mm (8.1 x 5.25 x 3.94 in) |
| Weight | 2,560 g (5.64 lb) |
| Installation | Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia SR332 |
| Altitude | 2000 m |
