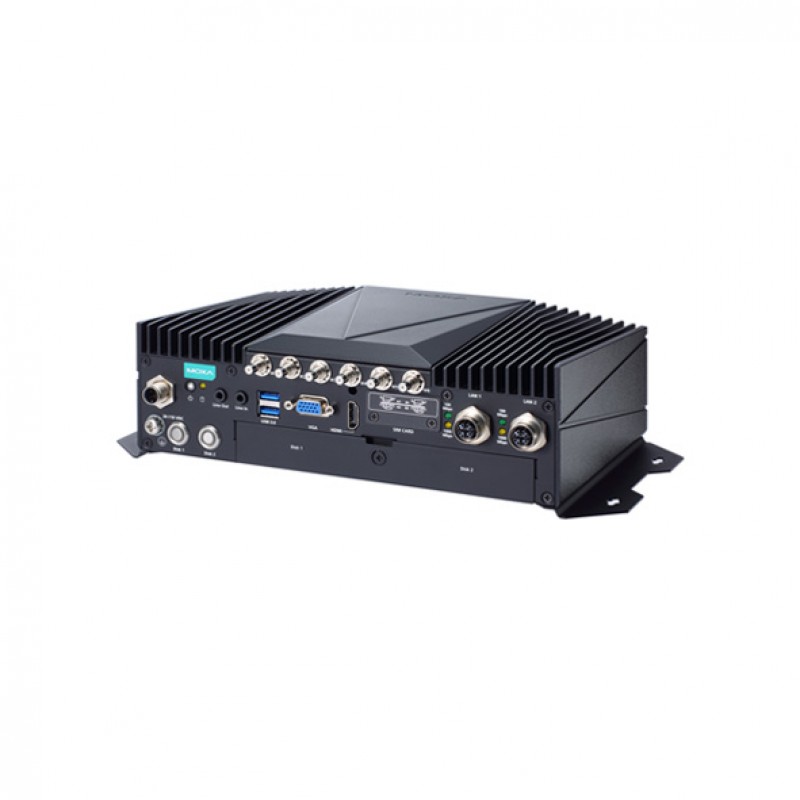

MOXA V2406C-KL1-T Wide Temperature Computer
- Intel® Celeron®/Intel® Core™ i3/i5/i7 high-performance network video recorder for rolling stock applications
- DDR4 memory slot; up to 32 GB capacity
- Supports dual independent displays (VGA and HDMI with 4K resolution)
- 2 Gigabit Ethernet ports with M12 X-coded connectors
- M12 A-coded power connector
- Complies with all EN 50155 mandatory test items1
- Compliant with EN 50121-4
- IEC 61373 certified for shock and vibration resistance
- -40 to 70°C wide-temperature models available
Description
The V2406C Series embedded computers are built around an Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processor and come with up to 32 GB RAM, one mSATA slot, and two hot-swappable HDD/SSD for storage expansion. The computers are compliant with EN 50155:2017 and EN 50121-4 standards covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for railway onboard and wayside applications.
For connecting with onboard and wayside systems and devices, V2406C computers are equipped with a rich set of interfaces including 2 Gigabit Ethernet ports, 4 RS-232/422/485 serial ports, 6 DIs, 2 DOs, and 4 USB 3.0 ports. In addition, the V2406C computers provide 1 VGA video output and 1 HDMI output with 4K resolution support.
For reliable connectivity in train-to-ground (T2G) applications, the computers are provided with 2 mPCIe wireless expansion slots and 4 SIM-card slots. This helps establish redundant LTE/Wi-Fi connectivity, ensuring solid bidirectional communications between a fast-moving train and the wayside applications. In addition, the preinstalled QMA cable for wireless modules can help reduce assembly efforts and ensure low RF leakage.
You can also find the V2406C-KL1-CT-T, V2406C-KL7-T, and V2406C-KL5-T models in the Wide Temperature Computers.
Inquire about the MOXA V2406C-KL1-T Wide Temperature Computer, designed
for industrial automation solutions. Feel free to get in touch with our sales
team to give you the best solutions at the best global price in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| LAN | 2 per port (10/100/1000 Mbps) |
| ESD Protection | 6 kV for all signals |
| Computer | |
| CPU | Intel® Celeron® 3965U processor (2M Cache, 2.2 GHz) |
| System Chipset | Mobile Intel® HM65 Express |
| OS (Optional) | Linux Debian 9, Windows 10 Embedded IoT Ent 2019 LTSC 64-bit |
| System Memory | SODIMM DDR4 slot x 2 |
| USB | 4 x USB 3.0 (type A) |
| Display | |
| Graphics Controller | Intel® HD Graphics 620 |
| Display Interface | VGA x 1, 15-pin D-sub connector (female), HDMI x 1, HDMI connector (type A) |
| Connector Type | VGA x 1, HDMI x 1 connector |
| Serial Interface | |
| Serial Standards | RS-232/422/485 ports x 4, software selectable (DB9 male) |
| Digital Input | |
| Input Channels | - |
| Digital Input Levels for Dry Contacts | Logic 0: Short to GND, Logic "1": Open |
| Digital Input Levels for Wet Contacts | Logic 0: 0 to 3 VDC, Logic 1: 10 to 30 VDC |
| Isolation | 3k VDC |
| Digital Output | |
| Output Channels | - |
| Output Current | 200 mA per channel |
| On-State Voltage | 0 to 30 VDC |
| Connector Type | Screw-fastened Euroblock terminal, 10-pin terminal block |
| Isolation | 3k VDC |
| Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) |
| Baudrate | 50 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1 |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | 24 to 110 VDC |
| Input Current | - |
| Power Consumption | 70 W (max.) |
| General | |
| Automatic Reboot Trigger | - |
| MTBF | 394,260 hrs |
| Physical Characteristics | |
| Dimensions | 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in) |
| Housing | Aluminum |
| Operating temperature | -40 to 70°C (-40 to 158°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Telcordia (Bellcore), GB |
| EMC | EN 55032/35 |
| Weight | 2,700 g (5.95 lb) |
| Anti-Vibration | EC 60068-2-64, IEC 61373 |
| Safety | EN 62368-1, IEC 62368-1, UL 62368-1 |
| Green Product | RoHS, CRoHS, WEEE |
| Anti-Shock | IEC 60068-2-27, IEC 61373 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
| Mounting | Wall mounting (standard) |
| Isolation Protection | 3kV |
