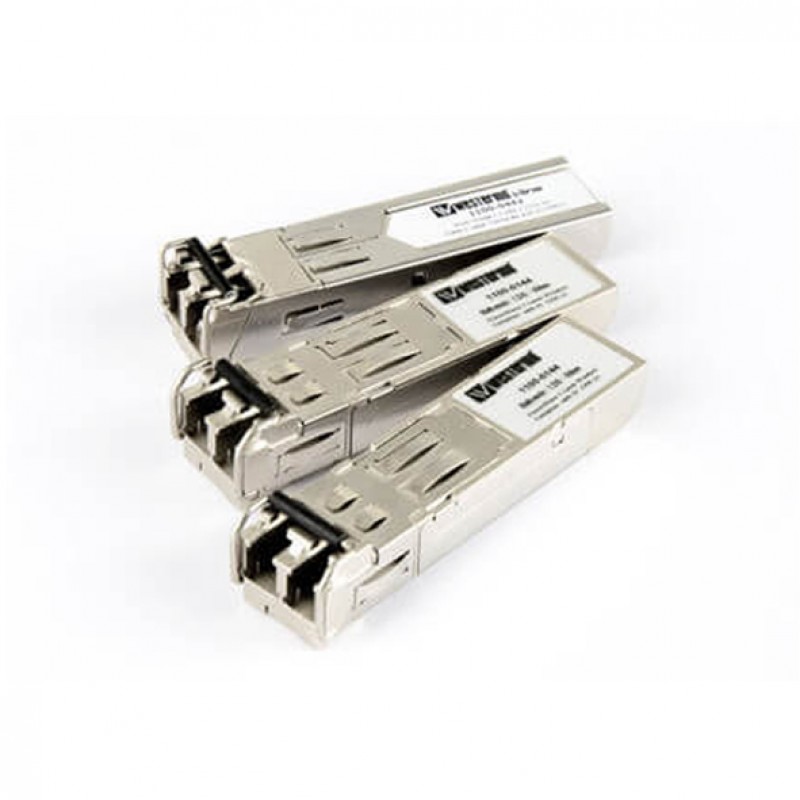

Westermo iGMLC2-DDM SFP Module
- Industrial 1 Gbps SFP Transceiver
- 1 x 1 Gbit/s SFP port (Multimode, Duplex LC connector)
- 2 KM Typical data transmission distance on fiber
- Wide operating temperature range, -40to +85°C
- Brand: WESTERMO
- Product Code: 1100-0442
Description
The Westermo range of Fast Ethernet and Gbit/s multimode SFPs offers cost-effective solutions for fibre installations in mission-critical OT networks. These models can use fibres with a core of either 50 or 62.5 μm, depending on the required range and fibre availability. With fully integrated DDM functionality in Weos, it's possible to monitor parameters such as temperature, TX/RX power, and voltage, ensuring optimal performance.
The range includes options for 100 Mbit/s and 1 Gbit/s, ensuring compatibility with most of Westermo switches, routers, and modems. The Fast Ethernet and 1 Gbit/s transceivers are compatible with the Lynx, RedFox, and ODW/MCW/SDW/LRW platforms, with multiple options varying from 850 nm to 1550 nm.
All Westermo’s SFP transceivers are thoroughly tested to meet high demands. Each model has gone through rigorous environmental testing to ensure that it can perform according to specification even in the harshest environments. Furthermore, functionality is validated and pushed to the limit, securing availability and reliability in mission-critical applications.
You can also find the GMLC2-DDM, MLC2-DDM, GMLC550-DDM, MLC2-BiDi-A-DDM, and MLC2-BiDi-B-DDM models in the SFP Transceivers.
Discover industrial automation solutions appropriate to your needs and easily inquire about the Westermo iGMLC2-DDM SFP Module through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 1 x 1 Gbit/s SFP port (Multimode) |
| Connector | Duplex LC connector |
| Typical Distance | 62.5/125 μm: 2 km, 50/125 μm: 1 km |
| POWER REQUIREMENTS | |
| Power Information | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | Dimensions device: 14 x 13 x 57 mm (0.55 x 0.51 x 2.24 inches); Dimensions protrosion: 14 x 13 x 9 mm (0.55 x 0.51 x 0.35 inches) |
| Weight | - |
| Operating Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Ambient Relative Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: EN/IEC 60825-1, Laser products - part 1: Equipment classification and requirement, EN/IEC 60825-2, Laser products - part 2: Safety of optical fibre communication systems, EN/IEC/UL 62368-1, Audio/video, information and communication technology equipment |
| MTBF | - |
