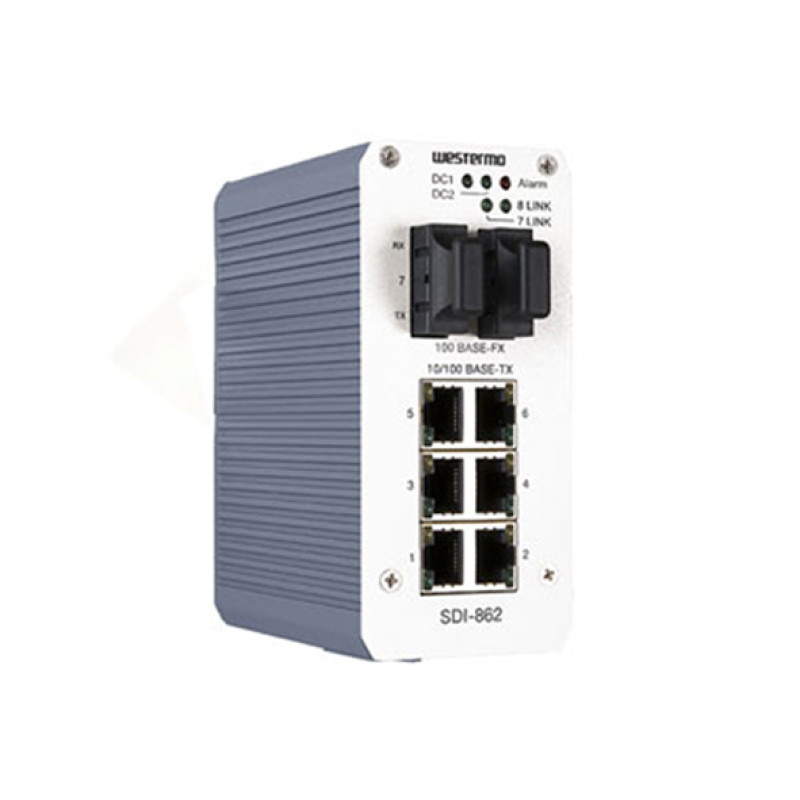

Westermo SDI-862-SM-SC30 Unmanaged Ethernet Switch
- 6 x 10/100 Base T Ethernet ports
- 2 x 100 Base-FX Ports (Single-mode SC connector)
- 30 KM Typical data transmission distance on fiber
- DIN rail mount installation
- IP31-rated aluminum case
- Dual 10 to 60 VDC power supply
- –10 to +70°C operating temperature range
- Brand: WESTERMO
- Product Code: 3625-0120
.png)
Description
The SDI-862 is a simple and cost-effective unmanaged fibre switch suitable for use in a wide range of factory and building automation applications. Two models are available – The SC2 for use on up to 2 km (1.2 mi) of multimode fibre and the SC30 for single-mode applications up to 30 km (18 mi). A high-speed switch core ensures full speed on all ports and transparency to any Ethernet protocol.
The unit is designed for DIN rail mounting into industrial cabinets, allowing simple Ethernet connections to be established between PLCs, I/O units, drives, inverters, and HMIs.
The SDI-862 is easy to use, simply connect power to the screw terminals and plug in your RJ-45 cables. If you plan to use the fault contacts a DIP switch allows configuration, whilst LEDs provide simple diagnostics if required. A broadcast storm filter helps out if a loop is created by mistake.
You can also find the SDI-862-MM-SC2 model in the Unmanaged Ethernet Switches.
You can explore our wide range of
products and enquire about the Westermo SDI-862-SM-SC30 Unmanaged Ethernet Switch for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 6 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 2 SC Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Alarm relay (Terminal block connector with 1 A @ DC 24 V carry ability) |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 250 mA @ 24 V |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | - |
| Operating Voltage | 10 - 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 55 mm x 120 mm x 108 mm |
| Housing | Aluminium |
| Installation | Din-rail mounting |
| Operating Temperature | -10 to +70°C (+14 to +158°F) |
| Operation Humidity | - |
| Standards and Certifications | EMC: EN 55032, Electromagnetic compatability of multimedia equipment - Emission requirements, EN 55035, Electromagnetic compatability of multimedia equipment - Immunity requirements, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, FCC part 15 class A; IP31 |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 0.5Kg |
| Standards and protocols | |
| Protocols and work standards | |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
