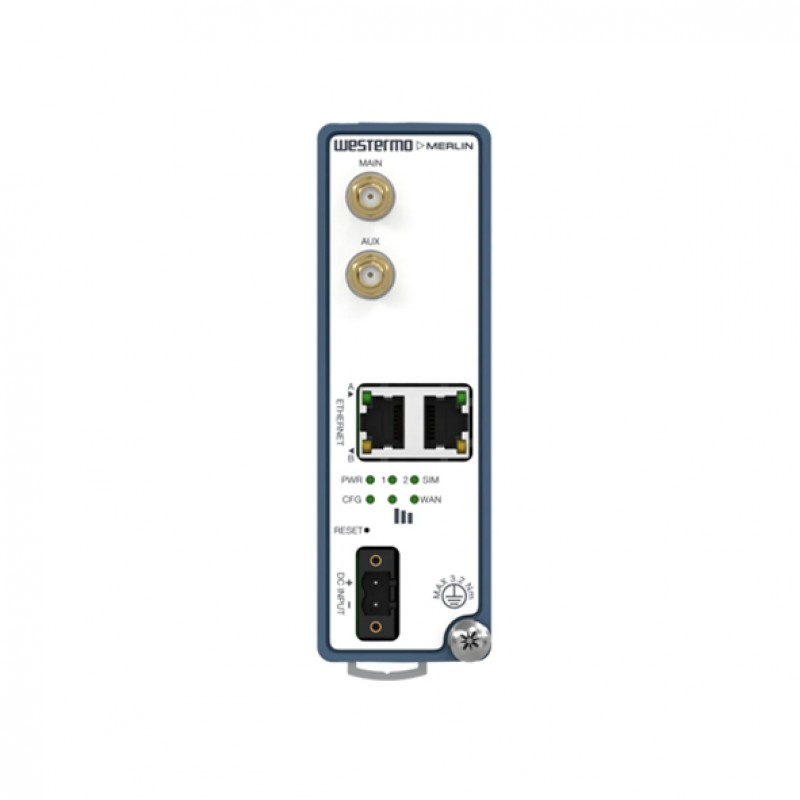

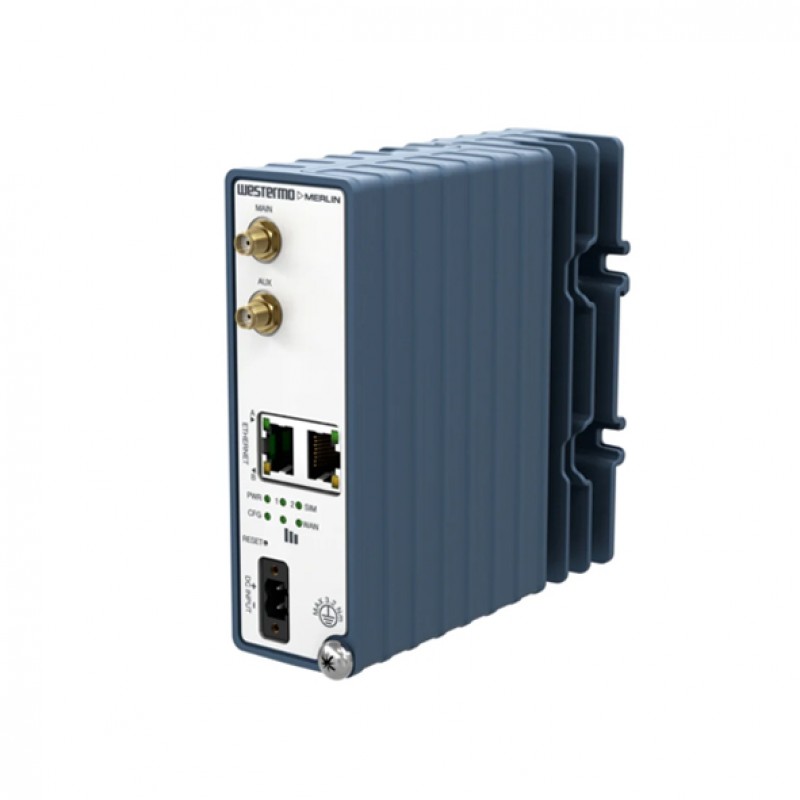

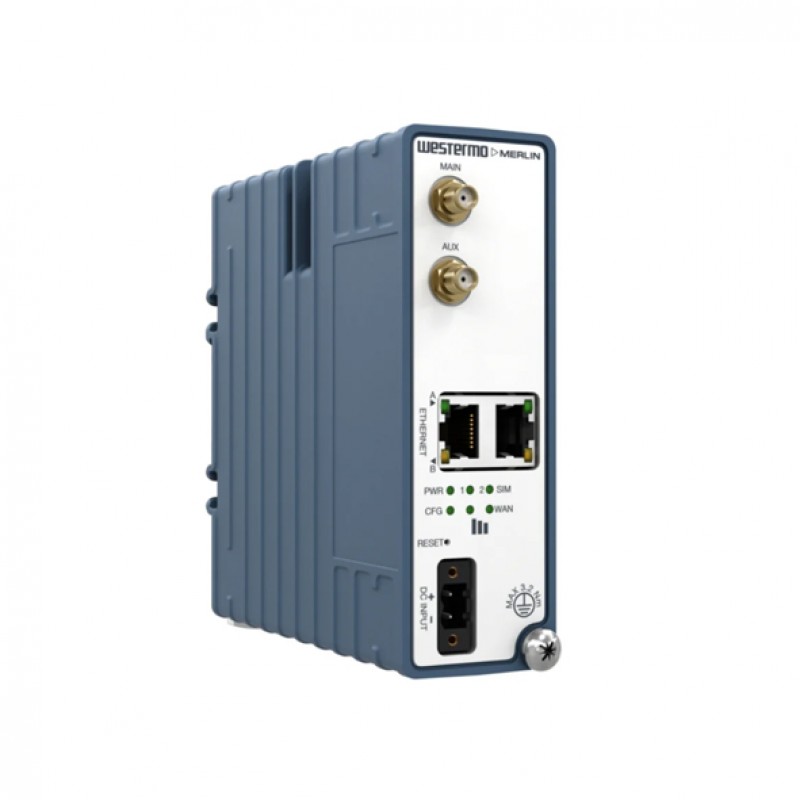

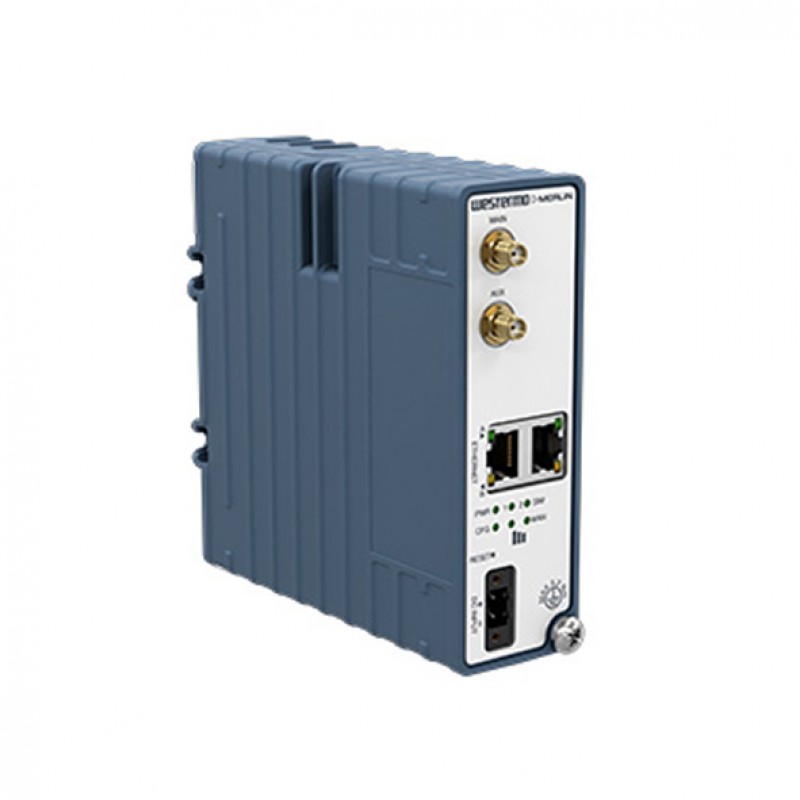

Westermo Merlin-3103-T2G-PFN-DCi0936 Industrial Cellular Router
- Supports Europe / Private Network Band 72
- 2 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45 connector)
- 2 x Mini-SIM (2FF) card slots to rear, covered by plate
- IP30-rated metal body material design

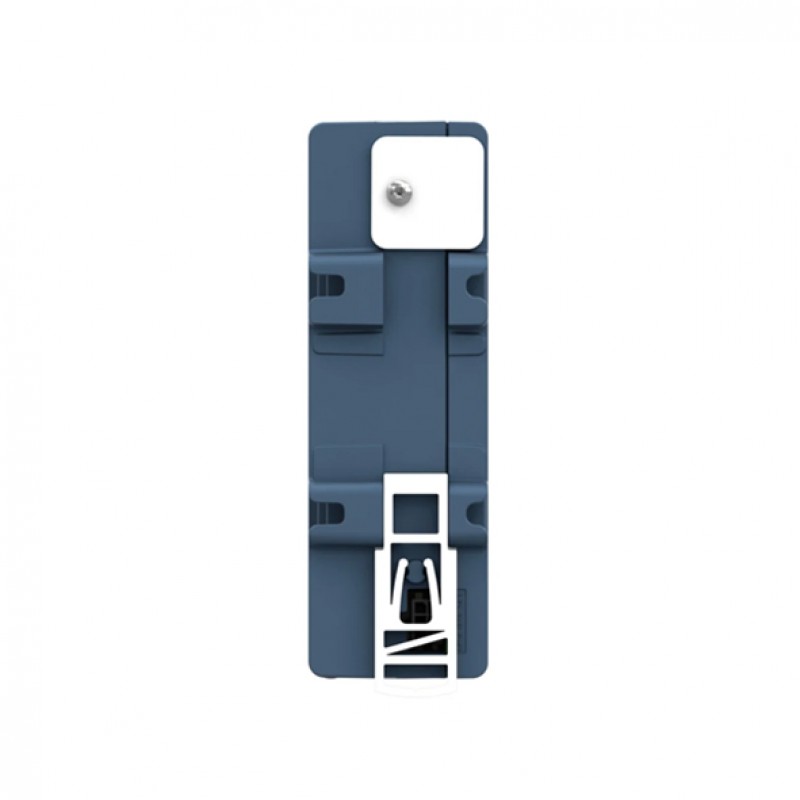

- DIN-rail mount installation
- 9 to 36 VDC input power (Push-in spring connectors)
- -40 to +70°C operating temperature range
.png)
Description
The Merlin series of versatile cellular routers provides high-speed data network connectivity for demanding industrial and smart grid
applications. Coupled with the Zero Touch deployment software Activator, it
provides cost-effective, reliable, and consistent onboarding of routers in
large-scale projects. This compact, rugged unit is suited to tight spaces. Its
high MTBF and wide temperature range support maximum service life.
To achieve best-in-class cybersecurity, the Merlin series is
equipped with a TPM (Trusted Platform Module) chip that keeps cryptographic
keys secure. Secure Boot ensures that the unit boots using only software that
is signed and trusted by the manufacturer. A set of cybersecurity tools is
available as standard, including VPN and stateful Firewall support for data
security and user authentication.
You can also find the Merlin-3103-T2G-QFR-G-DCi0936, Merlin-3103-T2G-QFX-DCi0936, and Merlin-3103-T2G-PFT-DCi0936 models in the
Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo Merlin-3103-T2G-PFN-DCi0936 Industrial Cellular Router through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x Mini-SIM (2FF) card slots to rear, covered by plate |
| Ethernet Ports | : 2 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45 connector) |
| USB | |
| Digital Input and Output | |
| Serial port | |
| Alert Output | |
| Band Options | LTE Bands: B3 ,B7, B20, B72 |
| Cellular Standards | LTE 450 and LTE |
| Cellular Antenna Connectors | LTE- 2 x SMA compatible connectors |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | 450MHz |
| WiFi Radio Frequency | - |
| Software Specifications | |
| Routing Redundancy | VRRP |
| VPN | IPSec/L2TP/GRE/DMVPN |
| Firewall | NAT, Packet filtering, Port forwarding |
| Time Management | |
| Management | Web interface (HTTPS), SMS management support, CLI via console, SSHv2, TFTP, SNMPv1/v2c/3, Secure Copy (SCP), Flexible alarm and event system, Port monitoring |
| General | |
| LED Indicators | : Booting up, Power, CFG, SIM, Cellular signal strength LED, LINK LED, SPEED LED |
| MTBF | Telcordia: 1.524.000 Hours |
| Operating mode | LTE Cellular Router/Gateway, Serial to Ethernet Converter |
| Standards and protocols | |
| Protocols | IPv4 and IPv6, DHCP, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Port forwarding, BFD, BGPv4, OSPF, RIP (v1 and v2), IPSec/L2TP/GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC104, QoS, VRRP, VRF, Control of I/O from SCADA master, IEC 60870-5-104, IEC 60870-5-101, IEC 61850, Modbus TCP, DNP3, Serial to Ethernet, MQTT |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Security: TPM, Stateful inspection firewall, RADIUS, TACACS+; Encryption: IPSec encryption |
| Authentication | 802.1x authentication |
| Power Requirements | |
| Power Connector | Push-in spring connectors |
| Power Consumption (Output Adapter) | 5 W typical |
| Input Voltage | 9 to 36 VDC isolated |
| POE Support | |
| Input Current | 398mA at 12 VDC |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 40 x 135 x 124 mm |
| Housing | Full metal |
| Weight | Approx 420g |
| Operating Temperature | -40 to +70°C |
| Storage Humidity | 5-95% relative humidity |
| Storage Temperature | -50 to +85°C |
| Type of Use | Industrial environment |
| Standards and Certifications | Ingress protection: IP30; Telcordia; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Safety: EN 62368-1, Safety Communication Technology |
