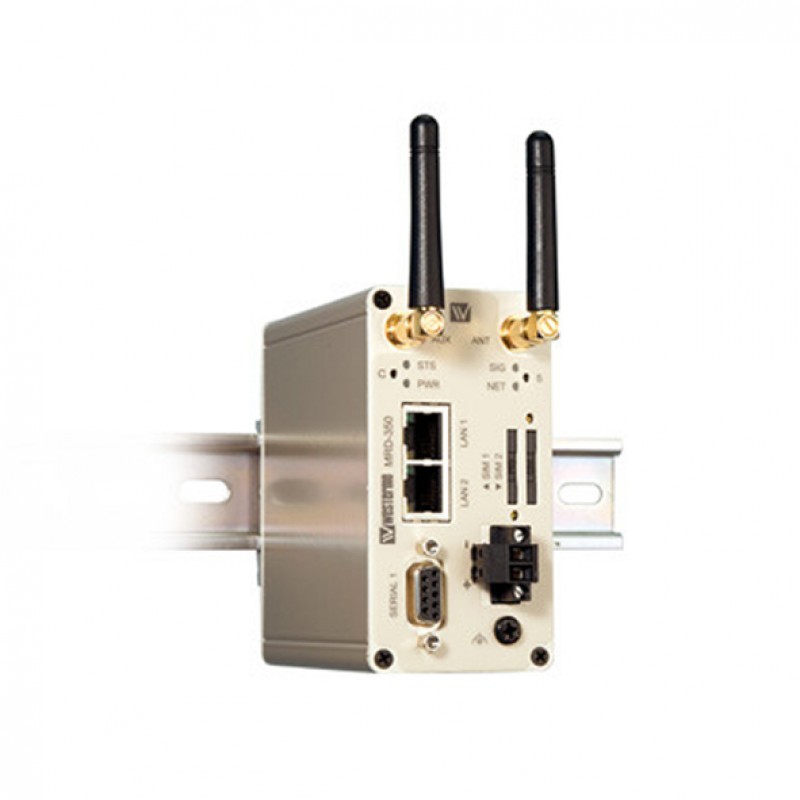

Westermo MRD-350 Dual SIM Industrial 3G Router
- Access SCADA systems, HMI, and PLCs remotely
- Wireless mobile broadband GPRS/EDGE/3G/HSPA connection
- 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
- 1 x RS-232 Serial port (9-pin D-sub female, 300 bit/s – 115.2 kbit/s)
- 2 x SIM slots (3 volts SIM supported)
- 12 to 48 VDC Power input range (Wide Range 10 to 60 VDC)
- Compact casing with DIN-rail mounting
- -20 to +60°C operating temperature range
- Brand: WESTERMO
- Product Code: 3623-0201
.png)
Description
Remote access removes boundaries, eliminates the need for time consuming site visits and provide a network infrastructure suitable for today’s “always-on” society. The MRD-350 industrial mobile broadband GPRS / EDGE / 3G router uses the Internet to cost effectively inter-connect systems, allowing HMI, PLCs, sensors etc to communicate with each other. A compact design bundled with all interfaces and LEDs in the front make the unit extremely well suited for industrial applications. With isolation between the PSU and the Ethernet and serial ports the MRD-350 protects against issues caused by ground loops.
The dual SIM support in the device ensures that site connectivity is not dependent on a single carrier, should something happen the unit just switches to the other SIM. Devices connected to the Internet require countermeasures towards cyber threats. The MRD-350 offers protection of transmissions from malicious eavesdroppers via encrypted communication tunnels (VPN), and features a simple, yet powerful, packet inspection firewall.
For solar powered
applications energy efficiency is vital and the MRD-350 has a special low-power
mode to only be fully powered when needed. The MRD-350 with its built-in serial
port offers a simple modem replacement solution with the benefit of not having
to reprogram or change any other component.
You can also find the MRD-355, MRD-315, Merlin-3103-T2G-PFO-DCi0936, and Merlin-4407-T4-S2-LV models in the Wireless Routers.
Easy World Automation offers the
easiest way to buy the Westermo MRD-350 Dual SIM Industrial 3G Router in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x SIM slots (3 volts SIM supported) |
| Ethernet Ports | : 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector) |
| USB | |
| Digital Input and Output | |
| Serial port | : 1 x RS-232 Serial port (9-pin D-sub female, 300 bit/s – 115.2 kbit/s) |
| Alert Output | |
| Band Options | GSM, GPRS, EDGE: 850 / 900 / 1800 / 1900 MHz; 3G UMTS, HSDPA, HSUPA, HSPA: 850 / 900 / 2100 MHz |
| Cellular Standards | GSM, GPRS, EDGE, 3G UMTS, HSDPA, HSUPA |
| Cellular Antenna Connectors | 2 x SMA antenna connectors |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | GSM: 14.4 kbit/s Downlink and Uplink; GPRS: 85.6 kbit/s Downlink and Uplink; EDGE: 236.8 kbit/s Downlink and Uplink |
| Maximum data transfer speed of 3G | 3G (WCDMA/UMTS): 384 kbit/s Downlink and Uplink; HSDPA: 14.4 Mbit/s Downlink; HSUPA: 5.7 Mbit/s Uplink |
| Maximum data transfer speed of 4G | |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | IPSec, OpenVPN, PPTP, L2TP, GRE |
| Firewall | ACL, NAT, Port Forwarding |
| Time Management | |
| Management | Web interface (HTTP and HTTPS), Command Line Interface (CLI) via SSHv2 and TELNET,SN MPv1/v2c/v3,SM S Control, Flexible alarm/event handling system, Syslog (log files and remote syslog server), SNTP (NTP client), DHCP client, DHCP server, DDNS (Dynamic DNS update client) |
| General | |
| LED Indicators | STS, SIG, PWR, NET |
| MTBF | - |
| Operating mode | Router, 3G Modem, GSM/GPRS modem |
| Standards and protocols | |
| Protocols | HTTP, HTTPS, SSHv2, TELNET, SNMPv1/v2c/v3, SNTP (NTP client), DHCP client, DHCP server, DDNS, DNP3 |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | |
| Authentication | None, PAP, CHAP |
| Power Requirements | |
| Power Connector | - |
| Power Consumption (Output Adapter) | GPRS Idle: 165 mA; GPRS Idle: 90 mA; GPRS Idle: 55 mA; GPRS Send: 240 mA; GPRS Send: 130 mA; GPRS Send: 75 mA; 3G Idle: 225 mA; 3G Idle: 120 mA; 3G Idle: 70 mA; 3G Send: 275 mA; 3G Send: 155 mA; 3G Send: 80 mA; 3G Send & Receive: 330 mA |
| Input Voltage | 12 - 48 VDC (Wide Range 10 - 60 VDC) |
| POE Support | |
| Input Current | 370 mA @ 12 |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 53 x 103 x 134 mm |
| Housing | - |
| Weight | 0.4Kg |
| Operating Temperature | –20 to +60ºC (–4 to +140ºF) (–30 to +70ºC (–22 to +158ºF) restricted operation) |
| Storage Humidity | 0 to 90% relative humidity non condensing |
| Storage Temperature | –40 to +85ºC (–40 to +185ºF) |
| Type of Use | Industrial environment |
| Standards and Certifications | EMC: EN 55024, EN 55024 A1, EN 55024 A2, Electromagnetic compatibility – Immunity IT equipment, EN 55022, EN 55022 A1, Information technology equipment., Radio disturbance characteristics. Limits and methods of measurement; Safety: EC/EN 60950-1, IT equipment; IP40 |
