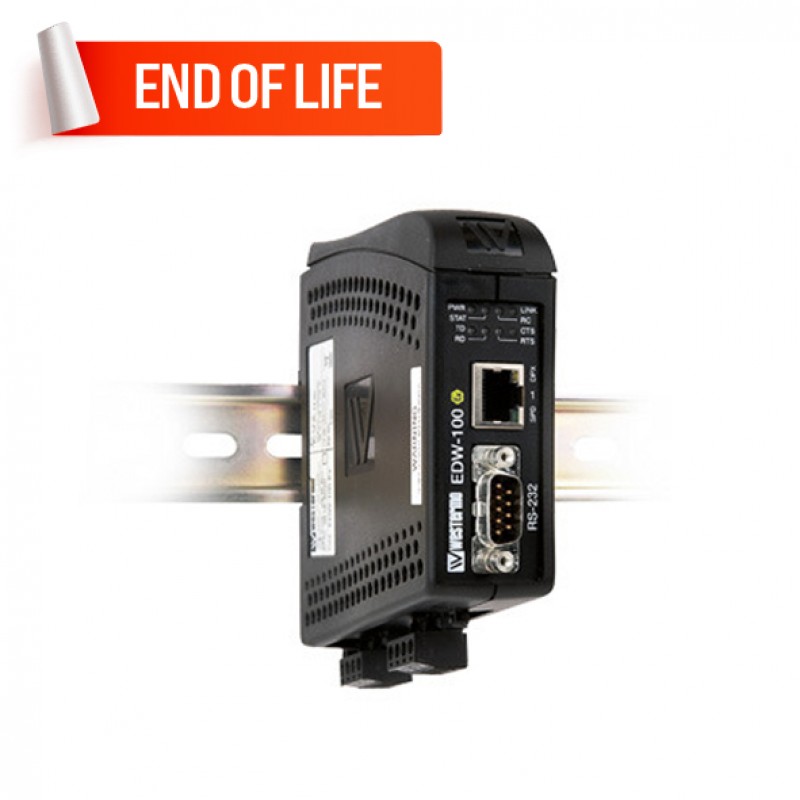

Westermo EDW-100 EX Serial to Ethernet Converter

  • ATEX Certified Serial to Ethernet Converter
  • 1 x 10 Mbit/s or 100 Mbit/s Ethernet Port (RJ-45)
  • 1 x RS-232 Port (9-pin D-sub, 300 bit/s to 115.2 kbit/s)
  • 1 x RS-422/485 Port (4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s)
  • Purpose-built DIN rail casing with integral clip
  • IP21-rated PC / ABS body material design
  • Dual 10 – 60 VDC Redundant power input with galvanic isolation
  • -25 to +70°C operating temperature range

Description

The EDW-100 EX is an ATEX-certified serial to-Ethernet converter designed to allow RS-232, RS-422, and RS-485 serial devices to communicate via TCP/IP Ethernet networks. DIP switches are used for the configuration of RS-422/485 as well as for Ethernet port settings; the password-protected web interface is used for all other settings. Diagnostic information can be accessed via a Telnet session with more basic information offered on LEDs.

The EDW-100 EX is designed for use in heavy-duty industrial applications. The wide power range, galvanic isolation, transient protection, and the design of the termination and fail-safe guarantees communication in the worst environments.

Only industrial-grade components are used which gives the EDW-100 EX an MTBF of 1,000,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts. The EDW-100 EX has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

The EDW-100 EX supports UDP, TCP client, and TCP server connections between units or to a PC virtual COM port. It also has an array of special modes, including Single Client Mode, Dual TCP Connection, DSR Connection, RST on TCP Closure, RTS Control, Break Signalling, and Last Calling, allowing the unit to be used in a wide range of complex applications. The Modbus TCP gateway implementation in the EDW-100 EX supports Modbus RTU and Modbus ASCII in both master and slave modes.


End of Life Product - No Replacement

Please note that the EDW-100 EX has been phased out. You can explore the EDW-100, EDW-120, MDW-45 HV, and MDW-45 LV in the Serial Converters and Repeaters.


You can Buy the Westermo EDW-100 EX Serial to Ethernet Converter via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 1 Port (or 10 Mbit/s)
100BaseFX Ports
Digital Input Channels
Digital Output Channels
Alarm Contact Channels
Magnetic Isolation Protection
Protocols Modbus TCP, Modbus RTU/ASCII, TCP client and TCP server, UDP, ICMP, IGMP, HTTP, ARP, Transparent
Serial Interface
Number of Ports 2 Ports
Serial Standards RS-232, RS-422/485
Connector 9-pin D-sub male (DTE) , 4-position Detachable screw terminal
Console Port
Serial Communication Parameters
Baudrate 300 bit/s – 115.2 kbit/s
Data Bits 7 or 8
Stop Bits 1 or 2
Parity Odd, even or none
Flow Control None
Isolation : Power 2 kVrms Ethernet 1; 1.5 kVrms
Serial Signals
RS-232 -
RS-422 -
RS-485-4w -
RS-485-2w -
Communication details
Wireless Standards -
Maximum data transfer speed -
Maximum direct range -
General
Management -
Compatible operating systems -
Fixed TTY Drivers -
Linux Real TTY Drivers -
MTBF MIL-HDBK-217K: 1,000,000 hours
Automatic Reboot Trigger -
Power Requirements
Connection Detachable screw terminal
Input Voltage 12 to 48 VDC
Input Current 250 mA @ 12 VDC, 125 mA @ 24 VDC, 63 mA @ 48 VDC
Security
Security
Encryption
Authentication
Features and capabilities
Display
Physical Characteristics
Dimensions 34 x 123 x 122 mm (1.34 x 4.84 x 4.80 in)
Installation DIN-rail mounting
Standards and Certifications MIL-HDBK-217K; IP21; EMC: EN 61000-6-1, Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: UL/CSA/IEC/EN 60950, IT equipment; IECEx: Explosive atmosphere, IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”; ATEX: Explosive atmosphere, EN 60079-0, General requirements, EN 60079-15, Equipment protected by type of protection “n”
Housing PC / ABS
Operating Temperature –25 to +70ºC (–13 to +158ºF)
Storage Temperature –40 to +70ºC (–40 to +158ºF)
Operation Humidity 5 to 95% relative humidity
Weight 0.2Kg
