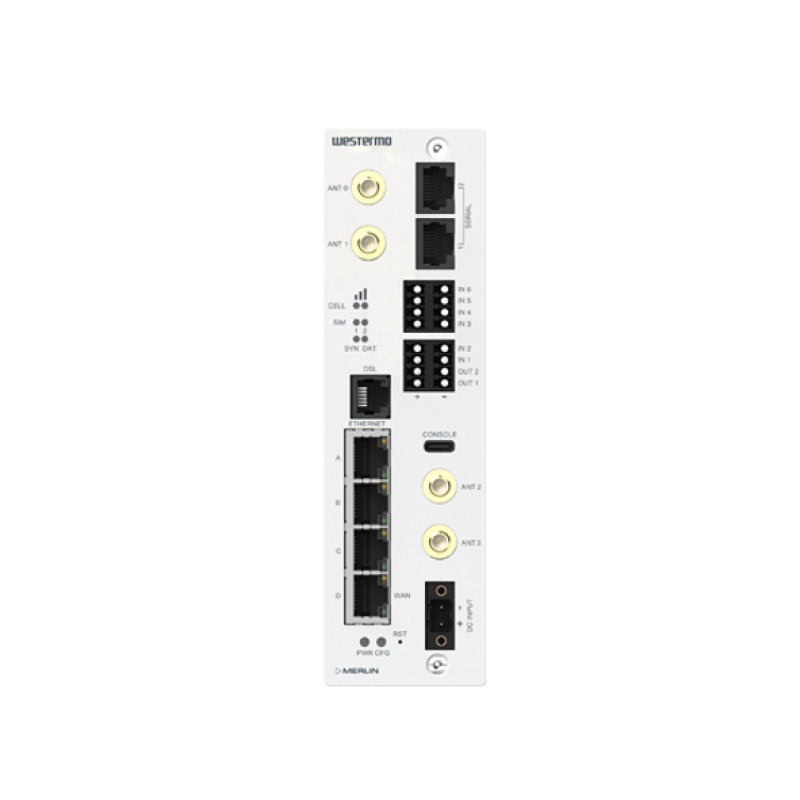

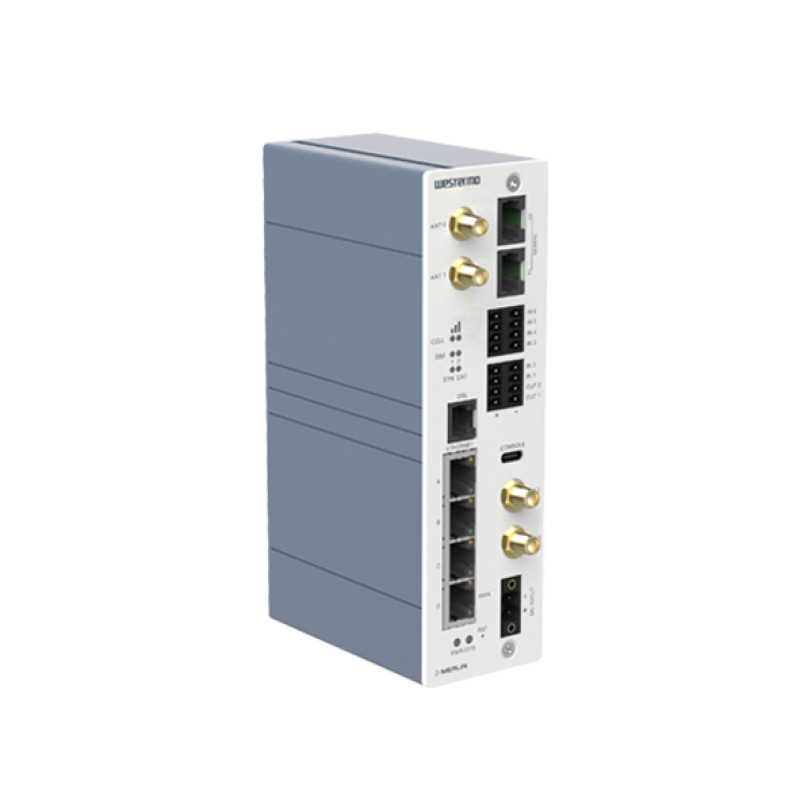

Westermo Merlin-4758-V-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
- Supports Global Frequency Bands
- 1 x VDSL2 / ADSL2+ Annex A, Annex B (RJ11)
- 4 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45)
- 2 x Serial ports configurable as RS232 or RS485 (RJ-45)
- 2 x Mini-SIM (2FF) card slots to rear, covered by metal plate
- IP30/IP31-rated Full metal material design
- 9.6 to 60 VDC operating voltage range
- -20 to +65°C operating temperature range
.png)
.png)
Description
The Merlin series of versatile cellular routers provides high-speed data network connectivity for demanding industrial and smart grid
applications. Coupled with the Zero Touch deployment software Activator, it
provides cost-effective, reliable, and consistent onboarding of routers in
large-scale projects. This compact, rugged unit is suited to tight spaces. Its
high MTBF and wide temperature range support maximum service life.
To achieve best-in-class cybersecurity, the Merlin series has a TPM (Trusted Platform Module) chip that keeps cryptographic
keys secure. Secure Boot ensures that the unit boots using only software that
is signed and trusted by the manufacturer. A set of cybersecurity tools is
available as standard, including VPN and stateful Firewall support for data
security and user authentication.
The built-in industrial protocol gateway enables several
devices using different protocols to be accessed via a common protocol
interface. The unit supports up to 6 digital inputs and 2 outputs for local
control or monitoring. Support for more digital inputs and outputs is possible
using external modules.
You can also find the Merlin-4757-T4G-S2-DI6-DO2-LV-PFO model in the Broadband DSL Routers.
Easy World Automation offers the easiest way to buy the Westermo Merlin-4758-V-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 x Mini-SIM (2FF) card slots to rear, covered by metal plate |
| Ethernet Ports | : 4 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45 connector) |
| USB | : 1 x Console Port (USB type-C. Router acts as device) |
| Digital Input and Output | : Up to 6 x Digital inputs for detecting remote contact open/close, Up to 2 x Digital outputs (relay contact outputs) |
| Serial port | : 2 x Port configurable as RS232 or RS485 (RJ-45) |
| Alert Output | : 2 x Outputs |
| Band Options | 3G Bands: B1, B2, B4, B5, B8, B19; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66, B71; 5G NR: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/76/ 77/ 78 |
| Cellular Standards | 5G NR, LTE, 3G |
| Cellular Antenna Connectors | 4 x SMA compatible connectors |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | - |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | - |
| Software Specifications | |
| Routing Redundancy | VRRP |
| VPN | IPsec, L2TP, GRE, DMVPN |
| Firewall | Stateful inspection, NAT, Packet Filtering, Port Forwarding |
| Time Management | |
| Management | Web interface (HTTPS), SMS management support, CLI via console, SSHv2, TFTP, SNMPv1/v2c/3, Secure Copy (SCP), Flexible alarm and event system, Port monitoring |
| General | |
| LED Indicators | Booting up, Power, CFG, SIM, DSL, Cellular signal strength LED, LINK LED, SPEED LED |
| MTBF | Telcordia: 815.000 hours |
| Operating mode | ADSL/VDSL 5G Router, Serial-to-Ethernet Converter |
| Standards and protocols | |
| Protocols | Modbus TCP, Modbus RTU, DNP3, MQTT |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | |
| Authentication | 802.1x authentication, TLS |
| Power Requirements | |
| Power Connector | Push-in spring connectors |
| Power Consumption (Output Adapter) | 12 W |
| Input Voltage | - |
| POE Support | |
| Input Current | 890 mA at 12 VDC, 230 mA at 48 VDC |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN-rail mounting |
| Dimensions | 50 x 170 x 101 mm |
| Housing | Full metal |
| Weight | 760 g |
| Operating Temperature | -20 to +65°C |
| Storage Humidity | 5-95% relative humidity |
| Storage Temperature | -30 to +70°C |
| Type of Use | Industrial environment |
| Standards and Certifications | Ingress protection: IP30 as standard, IP31 when fitted with accessory part 432-00078; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Safety: EN 62368-1, Safety Communication Technology; VDSL: BT Openreach MCT; Telcordia |
