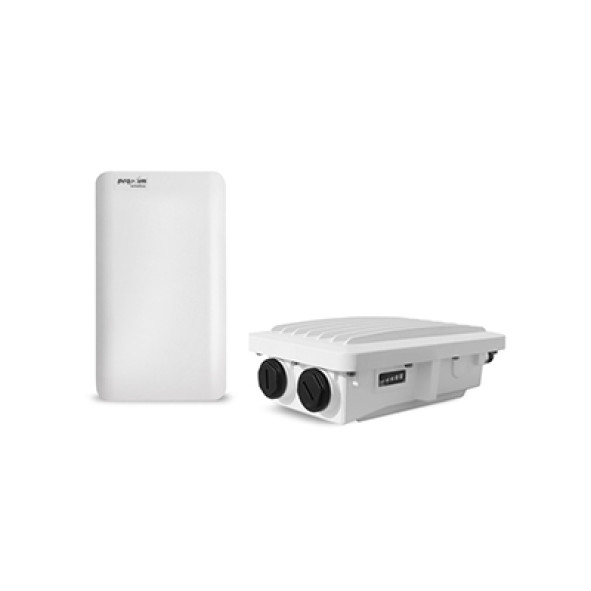

Proxim Tsunami MP-10150-CPE-50-WD Point-to-multiPoint Radio

Proxim Tsunami MP-10150-CPE-50-WD Point-to-multiPoint Radio
Proxim Tsunami MP-10150-CPE-50-WD Point-to-multiPoint Radio

  • One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in & Data
  • Integrated 15 dBi dual Polarized (H+V) panel antenna
  • 2x2:2 MIMO
  • IP67

  • Brand: PROXIM
  • Model: Tsunami MP-10150-CPE-50-WD
0 reviews • Write a review
ENQUIRE NOW
Add to Wish List Compare this Product
Datasheet
  • Operating Temperature (-40 to 60°C)
  • Relative Humidity (100% relative humidity)
  • IP protection (IP67)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The Tsunami® Multipoint 10100 CPE is an ideal solution for large-scale wireless deployments and provides an excellent price/performance for any organization in need of medium to high-density point-to-multipoint networks.

The MP-10100-CPE enables seamless roaming up to 295 km/h (185 mph) for use in mobile applications such as the provision of Internet access or video surveillance on trains, trams, and buses.

This CPE also features a carrier-grade prioritization platform supporting multiple service classes and is able to prioritize voice, video, and data applications to enable granular management of customer service features.


You can place an order for the Proxim Tsunami MP-10150-CPE-50-WD Point-to-multiPoint Radio, which is applicable in the Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Point-to-Multipoint Radio : Interfaces
Wired Ethernet One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in & Data
Wireless Protocol WORP® (Wireless Outdoor Router Protocol)
Point-to-Multipoint Radio : Antenna
Antenna Type Integrated 15 dBi dual Polarized (H+V) panel antenna (12 dBi before 5.000 GHz and 14 dBi beyond 5.850 GHz)
Point-to-Multipoint Radio : Radio Specifications
TX Power Up to 28 dBm (dual chain)
MIMO 2x2:2
Modulation OFDM with BPSK, QPSK, QAM16, QAM64, QAM256
Frequency 4.900 – 5.925 GHz (Subject to Country Regulations)
Channel Size 80 MHz, 40 MHz and 20 MHz (±5ppm channel accuracy)
Data Rate MCS 0 to 9 with Dynamic Data Rate Selection
Throughput License controlled to 50, 100, 150 or 200 Mbps
TX Power Control 0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-Multipoint Radio : Management
Remote Telnet and SSH, Web GUI and SSL/TLS1.2, TFTP, SNMPv3
SNMP SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Other Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-Multipoint Radio : Standards and Protocols
Synchronization Pass-through IEEE 1588v2 Ethernet Synchronization
Point-to-Multipoint Radio : Security
Encryption AES 128
Authentication Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-Multipoint Radio : Network
Modes Bridging, Routing (RIP v2 and IP tunneling)
IP Stack IPv4 and IPv6 simultaneously
Gateway Features DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-Multipoint Radio : Power requirements
Power Input 36 to 57 VDC via Ethernet port(Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
Power Output 12 VDC on Access port
Power Consumption 17 Watt typical, 22 Watt max
Point-to-Multipoint Radio : Physical characteristics
Safety UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22)
Temperature OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity 100% relative humidity
IP Rating IP67
Dimensions Packaged 11.81x10.83x5.31 in (300x275x135 mm)
Dimensions Unpackaged 4.96x8.62x2.58 in (126x219x65.5 mm)
Weight (PACKAGED) 7.27 lbs (3.3 Kg)
Weight (UNPACKAGED) 2.10 lbs (0.950 kg)
Standards and Certifications USA: FCC 90Y + 15E (UNII 15.247), Canada: IC RSS 102 + RSS 111 + RSS 247, Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502, Railway: EN 50155 + EN 50121 + EN 61373
Wind Loading 180 km/h (112.5 mph)
Point-to-Multipoint Radio : Package Checklist
Package Contents One Tsunami® MP-10150-CPE-xxx with integrated dual polarized antenna Or One Tsunami® MP-10100-CPA-xxx with two N-type surge protected connectors, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit (MP-10150-CPE-xxx) Or One Pole mounting kit (MP-10100-CPA-xxx), One Grounding kit, One Quick Installation Guide
Point-to-Multipoint Radio : General
MTBF 250 000 hours
