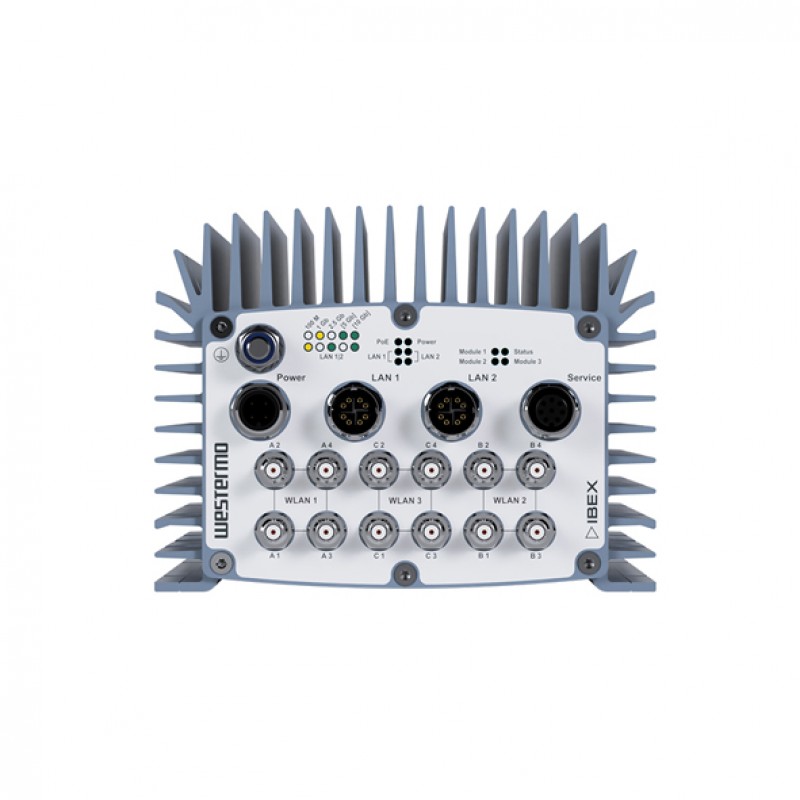

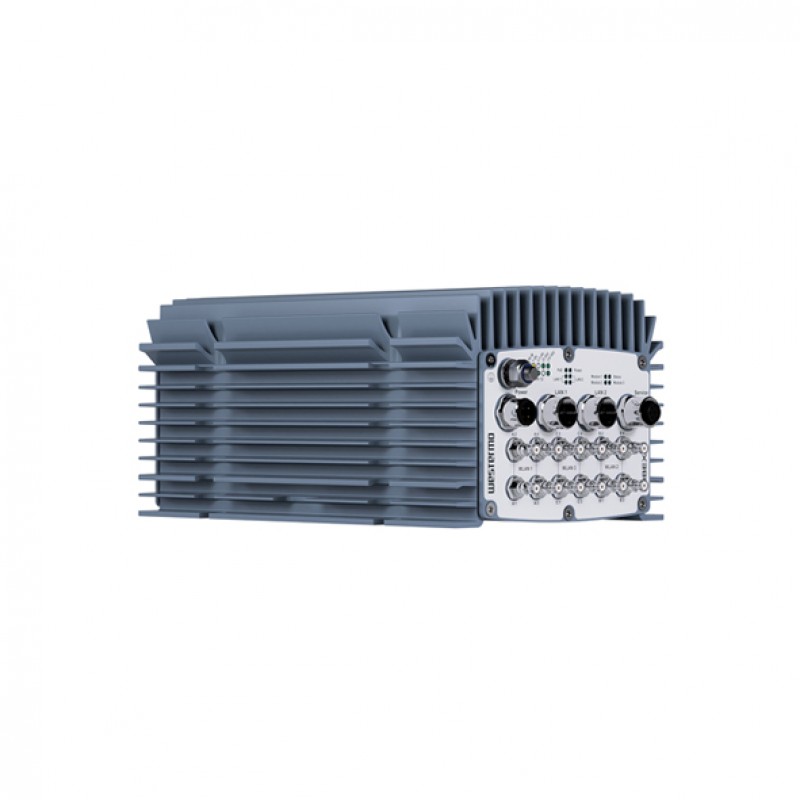

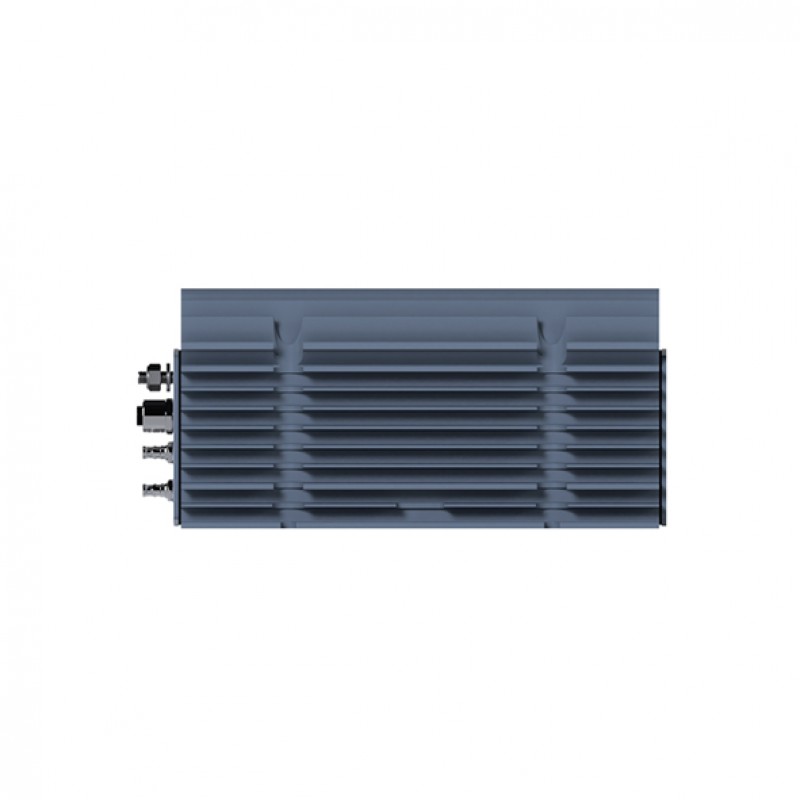

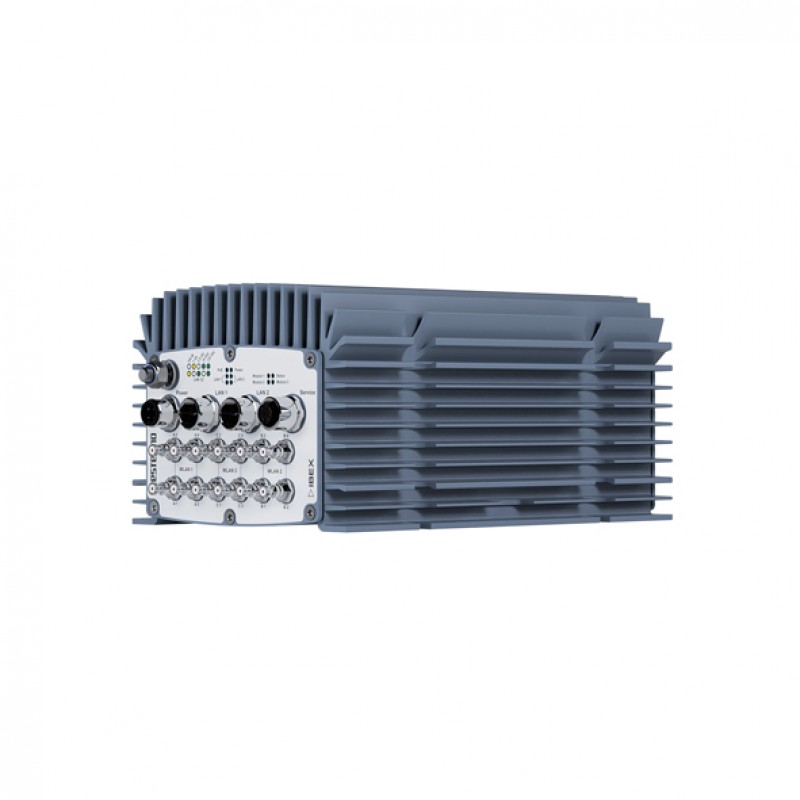

Westermo Ibex-4000 WLAN Triple Radio Railway Access Point
- IEEE 802.11ax compliant with 4 x 4 Multi-user MIMO
- Up to three Wi-Fi 6 (E) modules
- Supports 2.4/5 GHz Wi-Fi 6 and 6 GHz Wi-Fi 6E
- 2 x 2.5/10 Gigabit Ethernet on M12 X-coded connectors
- 1 x USB/Serial Port (USB 2.0, RS232, M12 A-coded)
- IP54-rated aluminum body and wall mounting
- Ultra-wide-range power supply 24 to 110 VDC
- Dual PoE+ / PoE++ power supply (IEEE 802.3at/bt)
- -40 °C to +70 °C operating temperature range
-01.png)
Description
The Ibex-4000 (802.11ax) is a high-performance Wi-Fi 6/6E
access point series designed for railways (EN 50155). The Ibex-4000 series
includes both dual-band and tri-band Wi-Fi products. These products support 4x4
MU-MIMO, offer bandwidth support up to 160 MHz, and feature 1K-QAM modulation. For
connectivity, the access point features two 2.5 or 10 Gigabit Ethernet ports.
In case an access point is down (e.g., due to power loss), bypass relays ensure
that other daisy-chained access points still have Ethernet.
The Ibex-4000 series also includes a Baseboard Management
Controller (BMC), which offers intelligent monitoring and analysis of vital
information such as boot processes, temperature, and voltage limits. In the
event of a deviation, various actions can be taken. The BMC thus improves the
reliability and efficiency of an access point. The Ibex-4000 series offers
flexible powering options. The power is supplied either via an internal power
supply with bypass relays or an internal power supply with PoE.
The Ibex-4000 series firmware (based on OpenWrt) provides a
user-friendly web interface for management. The access point configurations as
well as the management firmware can be updated remotely. The Ibex-4000 series also
comes with a dedicated Trusted Platform Module (TPM 2.0). TPM increases device
security by securely storing cryptographic keys and by protecting against
unauthorized manipulation.
You can also find the Ibex-RT-630-5G-LV EU, Ibex-1310-T2G2.5 NA, Ibex-1510-T2G2.5EU, Ibex-A2510-T1G-PoE, Ibex-RT-320-LV NA, Ibex-RT-610-LV EU, and Ibex-RT-630-5G-LVNA models in the WLAN.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the Westermo Ibex-4000 WLAN Triple Radio Railway Access Point through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| SIM card slot | |
| Ethernet Ports | : 2 x 2.5/10 GbE, M12 8-pin female X-coded connector |
| USB | : 1 x USB 2.0 Port (M12 8-pin female A-coded connector) |
| Digital Input and Output | |
| Serial port | : 1 x RS232 Port (M12 8-pin female A-coded connector) |
| Alert Output | |
| Band Options | - |
| Cellular Standards | - |
| Cellular Antenna Connectors | - |
| WLAN Standards | IEEE 802.11 a/b/g/n/ac/ax |
| WLAN Antenna Connector | Up to 12 RF antennas, 4x4 MU-MIMO technology, with QLS to SMA adapter, built-in combined for 2.4 / 5 GHz as only 4x QLS (4x4) on the front panel |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | Up to three Wi-Fi 6 (E) modules |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | up to 4804 Mbps @ 5/6 GHz and 1147 Mbps @ 2.4 GHz |
| WiFi Radio Frequency | 2.412 GHz to 2.472 GHz, or 4.920 GHz to 5.875 GHz, or 5.925 to 7.125 GHz selectable band |
| Software Specifications | |
| Routing Redundancy | |
| VPN | OpenVPN, IPSec, GRE |
| Firewall | stateful firewall with multi-level client/AP isolation |
| Time Management | |
| Management | Remote Management: SNMP V1/V2/V3, telnet, SSH, http, https; Network Link Management: link priorization, load balancing, link aggregation; Baseboard Management Controller (BMC) |
| General | |
| LED Indicators | POWER LED, STATUS LED, MODULE 1 / 2 / 3 LED, POE LED, LAN1 / LAN2 LED´S |
| MTBF | approx. ~255.000 h (acc. to IEC 62380) |
| Operating mode | Access Point, Bridge, Client, Router |
| Standards and protocols | |
| Protocols | - |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | Encryption: OPEN, AES, TKIP, WPA, WPA2-PSK/EAP, WPA3-PSK/EAP, mixed modes, OWE |
| Authentication | Authentication 802.1x |
| Power Requirements | |
| Power Connector | M12 4-pin male A-coded |
| Power Consumption (Output Adapter) | 40 W. typ., 50 W. max. |
| Input Voltage | 24 to 110 VDC, wide-range power supply, Dual PoE+, Class-4 powered device, IEEE 802.3at, Dual PoE++, Class-6 powered device, IEEE 802.3bt (compliant to EN 50155) |
| POE Support | |
| Input Current | |
| Reverse Polarity Protection | |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | Wall Mounting |
| Dimensions | 130 mm x 100 mm x 218 mm (w h d) |
| Housing | IP54, aluminum, wall-mount, conductive cooling |
| Weight | up to 3300 g |
| Operating Temperature | Class OT4, -40.. +70 °C (85 °C) |
| Storage Humidity | max. 95 % non-condensing operating and storage |
| Storage Temperature | -40 to +85 °C |
| Type of Use | Railway applications |
| Standards and Certifications | Directive (EU) 2016/797: EN 50155 (IEC 60571), EN 45545-2 (HL 1 to HL 3), EN 61373 (Category 1, Class B); RED – 2014/53/EU: EMC, radio spectrum, health & safety; USA: FCC Title 47 CFR Part 15, NFPA-130; IP40; IEC 62380 |
