Description

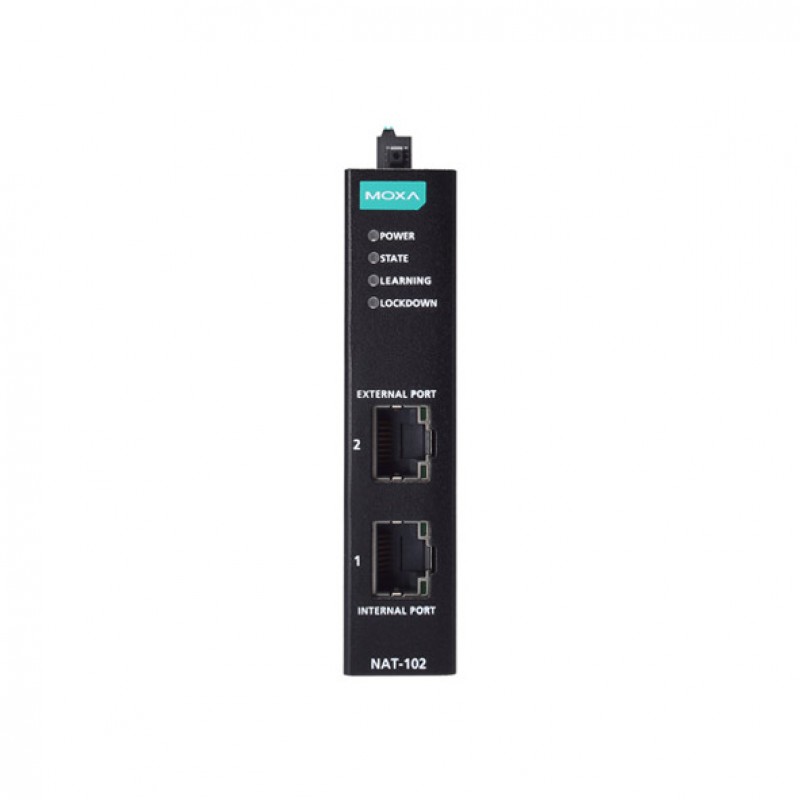

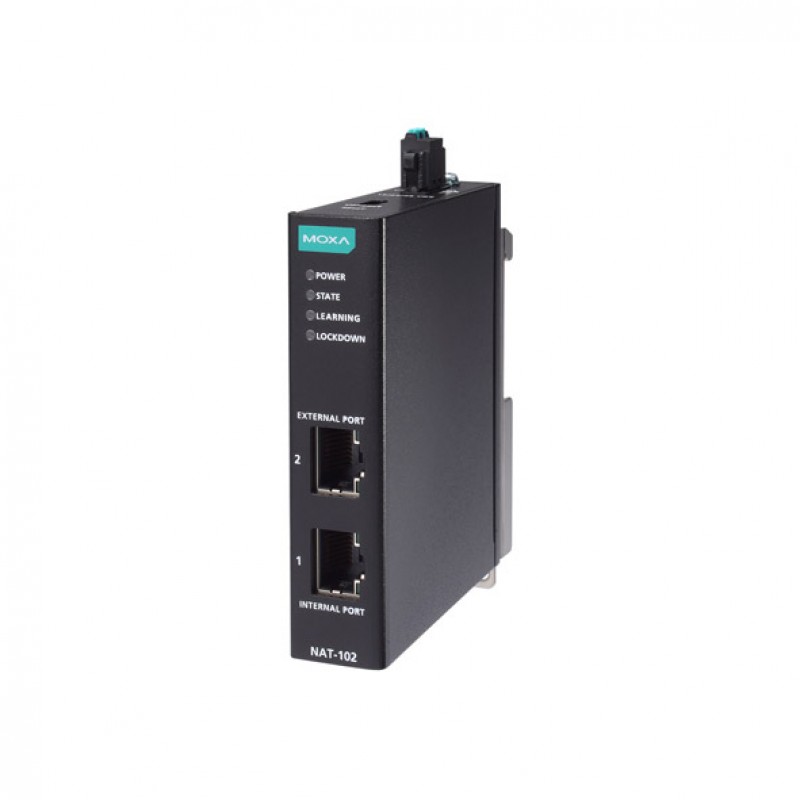

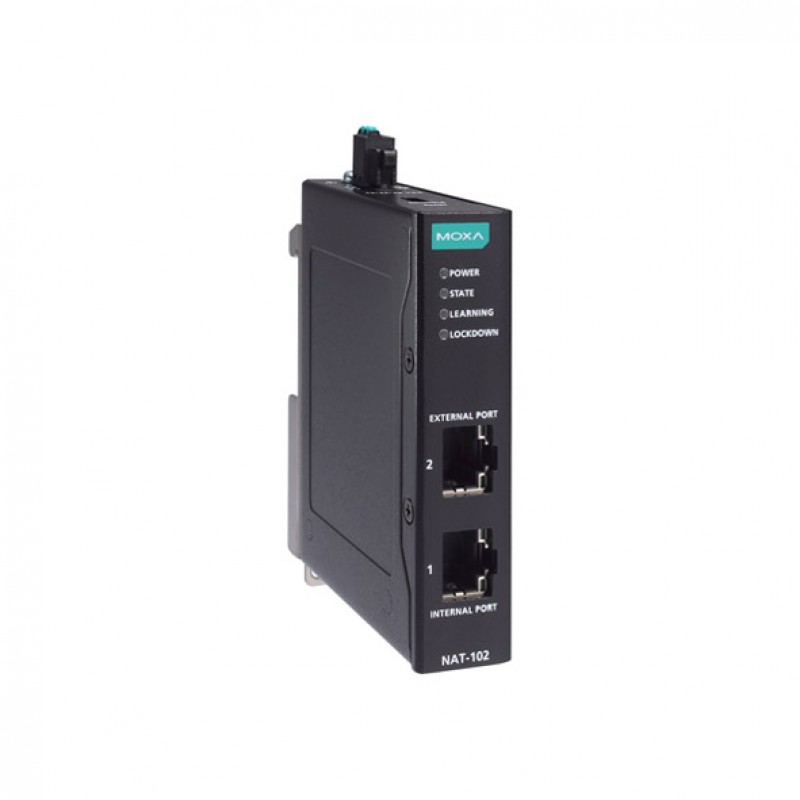

The NAT-102 Series is an industrial NAT device designed to simplify the IP configuration of machines in existing network infrastructure in factory automation environments. The NAT-102 Series provides complete NAT functionality to adapt your machines to specific network scenarios without complicated, costly, and time-consuming configurations. These devices also protect the internal network from unauthorized access by outside hosts.
Quick and User-friendly Access Control
The NAT-102 Series’ Auto Learning Lock feature automatically learns the IP and MAC address of locally connected devices and binds them to the access list. This feature helps you manage access control and makes device replacements much more efficient.
Industrial-grade and Ultra-compact Design
The NAT-102 Series’ rugged hardware makes these NAT devices ideal for deployment in harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the ultra-compact size allows the NAT-102 Series to be easily installed into cabinets.
You can also find the NAT-102 model in the Industrial Secure Routers.
Easy World Automation offers the
easiest way to buy the MOXA NAT-102-T Industrial Secure Router in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| INTERFACE | |
|---|---|
| Ethernet Ports | 2 x 10/100BaseT(X) Ports (RJ45 connector) |
| Serial Ports | 1 x RS-232 Console Port (USB Type-C connector) |
| Input/Output Channels | |
| Alarm Contact Channels | |
| SOFTWARE SPECIFICATIONS | |
| Management | Web Console (HTTP/HTTPS), LLDP, Telnet, TFTP, HTTPS, SSH |
| Routing Redundancy | - |
| Security | Secure Boot, Trust access control |
| Time Management | NTP Server/Client |
| Encryption | - |
| Authentication | - |
| LED INTERFACE | |
| LED Indicators | POWER, STATE, LEARNING, LOCKDOWN |
| GENERAL | |
| Supported Protocols | - |
| MTBF | 2,135,469 hrs |
| POWER REQUIREMENTS | |
| Input Voltage | 12/24/48 VDC |
| Input Current | 0.196 A @ 12 VDC, 0.100 A @ 24 VDC, 0.056 A @ 48 VDC |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protection | |
| Reverse Polarity Protection | Supported |
| Power Connector | Removable terminal block |
| PHYSICAL CHARACTERISTICS | |
| Housing | Metal |
| Dimensions | 20 x 73 x 90 mm (0.79 x 2.87 x 3.54 in) |
| Weight | 210 g (0.47 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 62368-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Traffic Control: NEMA TS2; Railway: EN 50121-4; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Telcordia (Bellcore), GB |
