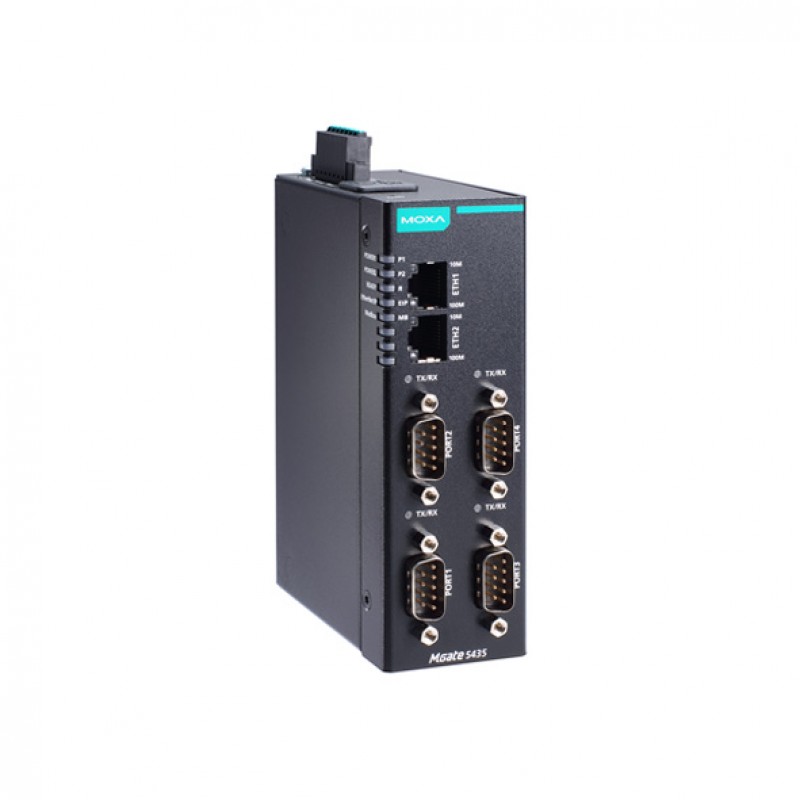

MOXA MGate 5435-T Industrial Ethernet Gateway
- Converts Modbus RTU/ASCII/TCP to EtherNet/IP
- 2 x 10/100BaseT(X) Ports (RJ45 connector)
- 4 x RS-232/422/485 Serial ports (DB9 male connector)
- 2 KV Isolation protection for serial port
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- -40 to 75°C operating temperature range
.png)
Description
The MGate 5135 /5435 gateways are 1- and 4-port industrial
Ethernet gateways, respectively for Modbus RTU/ASCII/TCP and EtherNet/IP
network communications. To integrate existing Modbus devices onto an
EtherNet/IP network, use the MGate 5135/5435 gateway as a Modbus client to
collect data and exchange data with the EtherNet/IP host. All models are
protected by a rugged and compact metal housing, are DIN-rail mountable, and
offer built-in serial isolation. The rugged design is suitable for industrial
applications such as factory automation, power, oil and gas, water and
wastewater, and other process automation industries.
Easy Configuration
The MGate 5135/5435 gateways are provided with a web console
to make configuration easy without having to install an extra utility. In
addition, HTTPS encryption ensures higher network security. In
most data-acquisition applications, the configuration of devices with Modbus
commands can be time-consuming and increase costs. The MGate 5135/5435 gateways
provide offline configuration via a CSV file to help complete the Modbus
settings quickly. The MGate gateways also provide software-configurable pull
high/low and termination resistor settings for RS-485 2-wire to reduce efforts
and the need to open the chassis.
You can also find the MGate 5135-T, MGate 5135, and MGate 5435 models in the Industrial Ethernet Gateways.
Enjoy the ease of online inquiries for the MOXA MGate 5435-T Industrial Ethernet Gateway. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 2 Ports (Auto MDI/MDI-X connection) |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Other ports | |
| Protocols | Ethernet: Modbus TCP Client, EtherNet/IP Adapter; Serial: Modbus RTU/ASCII Client |
| Serial port specifications | |
| Number of Ports | 4 Ports |
| Console Port | - |
| Connectors | DB9 Male |
| Serial Standards | RS-232/422/485 |
| Isolation | : 2 kV (built-in) |
| Serial Communication Parameters | |
| Data Bits | 7, 8 |
| Stop Bits | 1, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS Toggle (RS-232 only), RTS/CTS |
| Baudrate | 300 bps to 921.6 kbps |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| General | |
| Management | ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP |
| MTBF | 689,989 hrs hrs |
| Memory | |
| microSD Slot | Up to 32 GB (SD 2.0 compatible) |
| Power Requirements | |
| Input Current | 455 mA (max) |
| Input Voltage | 12 to 48 VDC |
| Power Connector | Spring-type Euroblock terminal |
| Security | |
| Security | Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Authentication | Local database |
| Encryption | HTTPS, AES-128, AES-256, SHA-256 |
| Physical Characteristics | |
| Dimensions | 42 x 90 x 130 mm (1.65 x 3.54 x 5.1 in) |
| Standards and Certifications | Safety: EN 61010-2-201, UL 61010-2-201; EMC: EN 61000-6-2/-6-4; EMI: FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332 |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Weight | 403 g (0.89 lb |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Installation | - |
