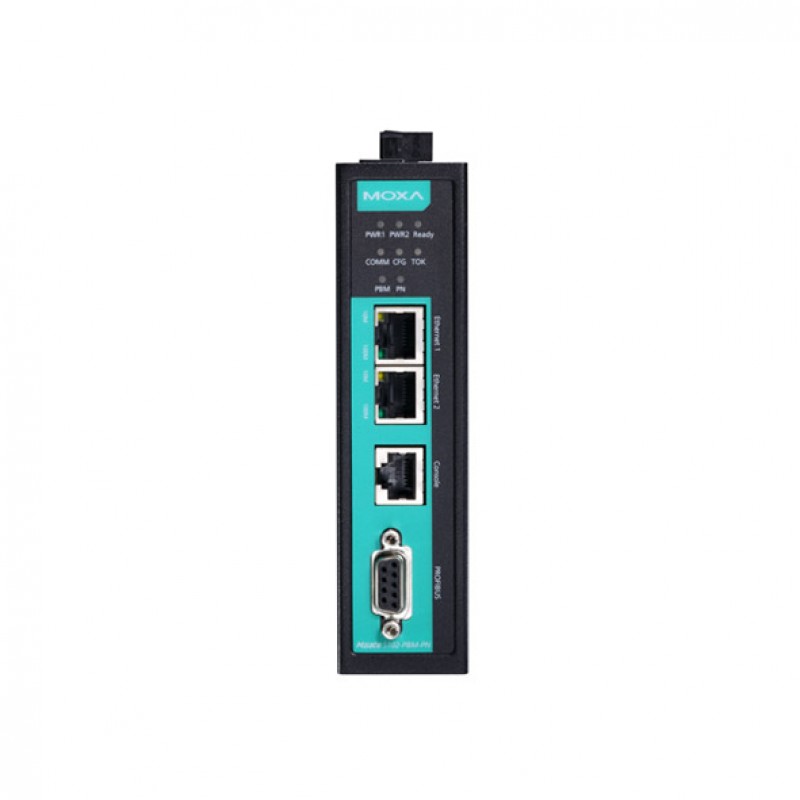

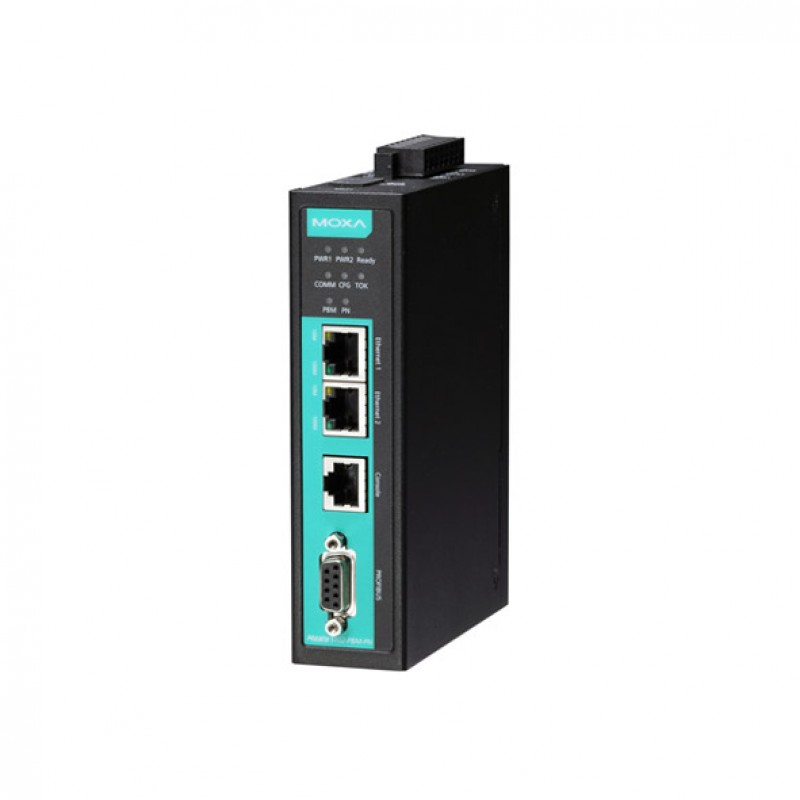

MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway

  • Converts PROFIBUS to PROFINET
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x PROFIBUS port (DB9 female connector)
  • 2 KV Isolation protection for PROFIBUS port
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • 0 to 60°C operating temperature

Description

The MGate 5102-PBM-PN gateway provides a communication portal between PROFIBUS devices (e.g., PROFIBUS PLC or drive) and the PROFINET host. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil and gas, power, process automation, and factory automation.


You can also find the MGate 5102-PBM-PN-T model in the Industrial Ethernet Gateways.


You can Buy the MOXA MGate 5102-PBM-PN Industrial Ethernet Gateway via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Specification

Interface
10/100Mb RJ45 (Megabit) Ports : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection 1.5 kV (built-in)
Other ports : 1 x PROFIBUS port with 2 KV isolation (DB9 female connector)
Protocols Ethernet: PROFINET IO Device; Serial: PROFIBUS DP-V1 Master; PROFIBUS: PROFIBUS DP
Serial port specifications
Number of Ports -
Console Port : RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Connectors -
Serial Standards -
Isolation
Serial Communication Parameters
Data Bits -
Stop Bits -
Parity -
Flow Control -
Baudrate -
Serial Signals
RS-232 Signals -
RS-422 Signals -
RS-485-2w Signals -
RS-485-4w Signals -
General
Management ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF 980,417 hrs
Memory
microSD Slot : Up to 32 GB (SD 2.0 compatible)
Power Requirements
Input Current 430 mA @ 12 VDC
Input Voltage 12 to 48 VDC (Redundant dual power inputs)
Power Connector Screw-fastened Euroblock terminal
Security
Security Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
Authentication Local database
Encryption HTTPS, AES-128, AES-256, SHA-256
Physical Characteristics
Dimensions 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: IEC 60950-1, EN 62368-1, UL 508; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
Housing Metal
Operating Temperature 0 to 60°C (32 to 140°F)
Weight 500 g (1.10 lb)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Installation DIN-rail mounting
